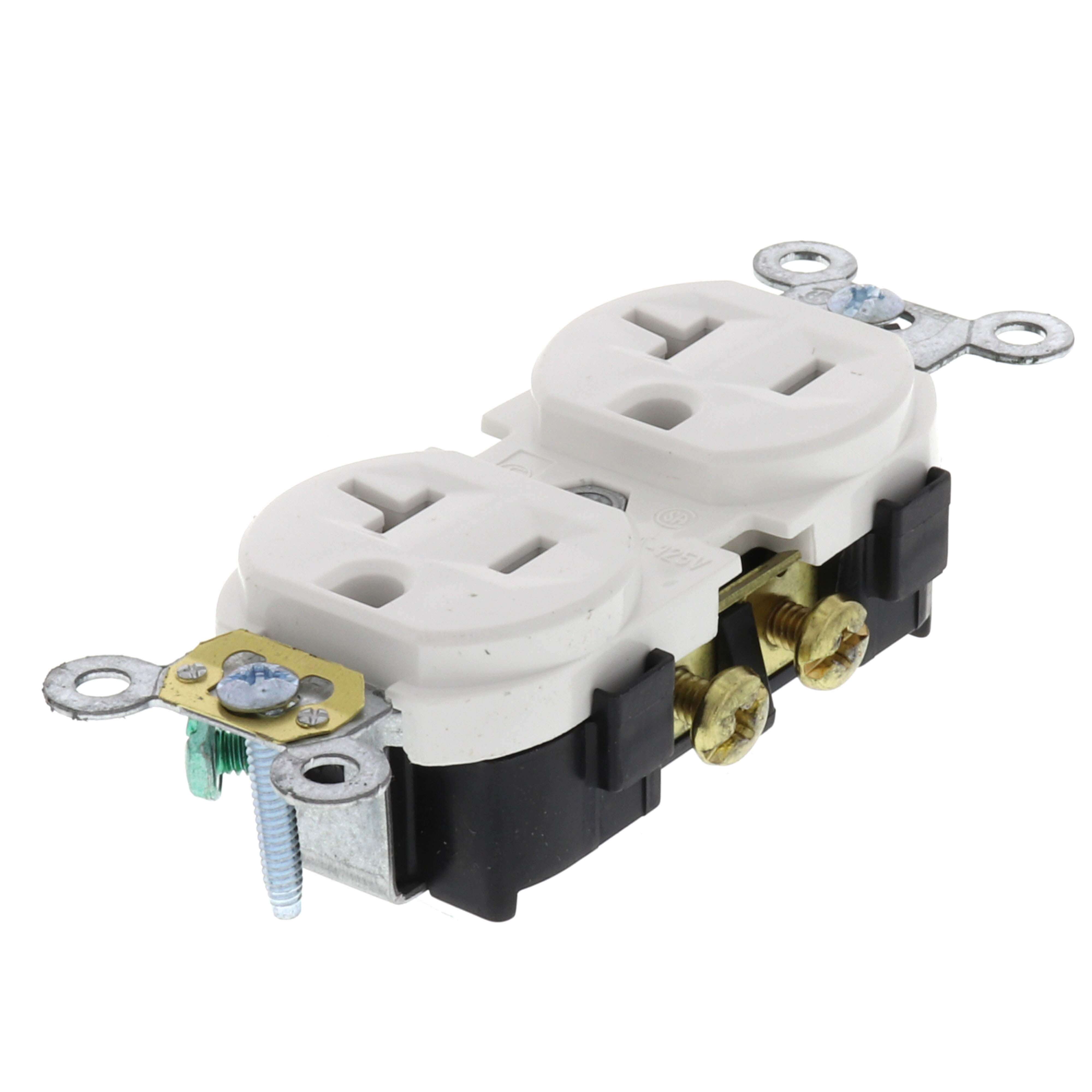

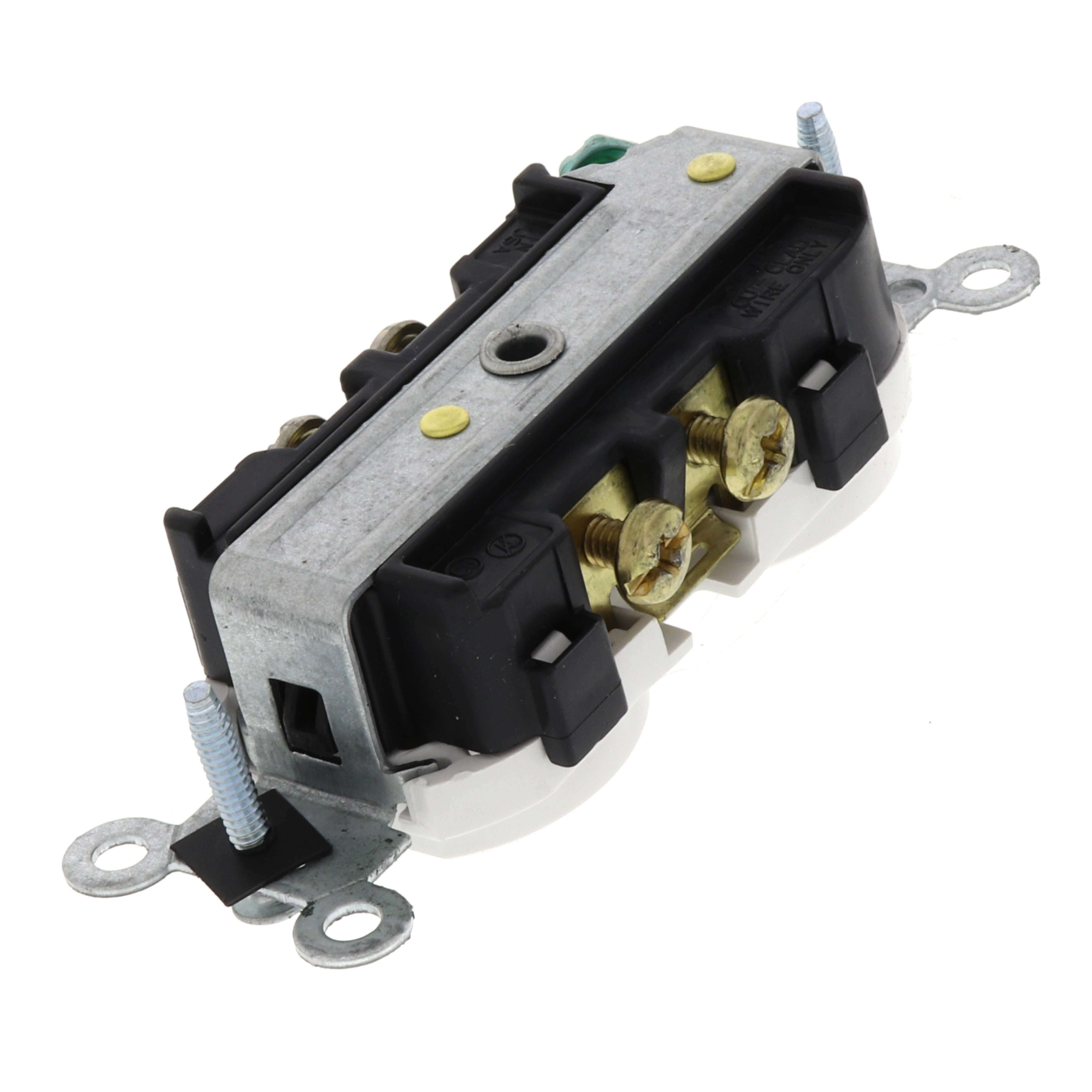

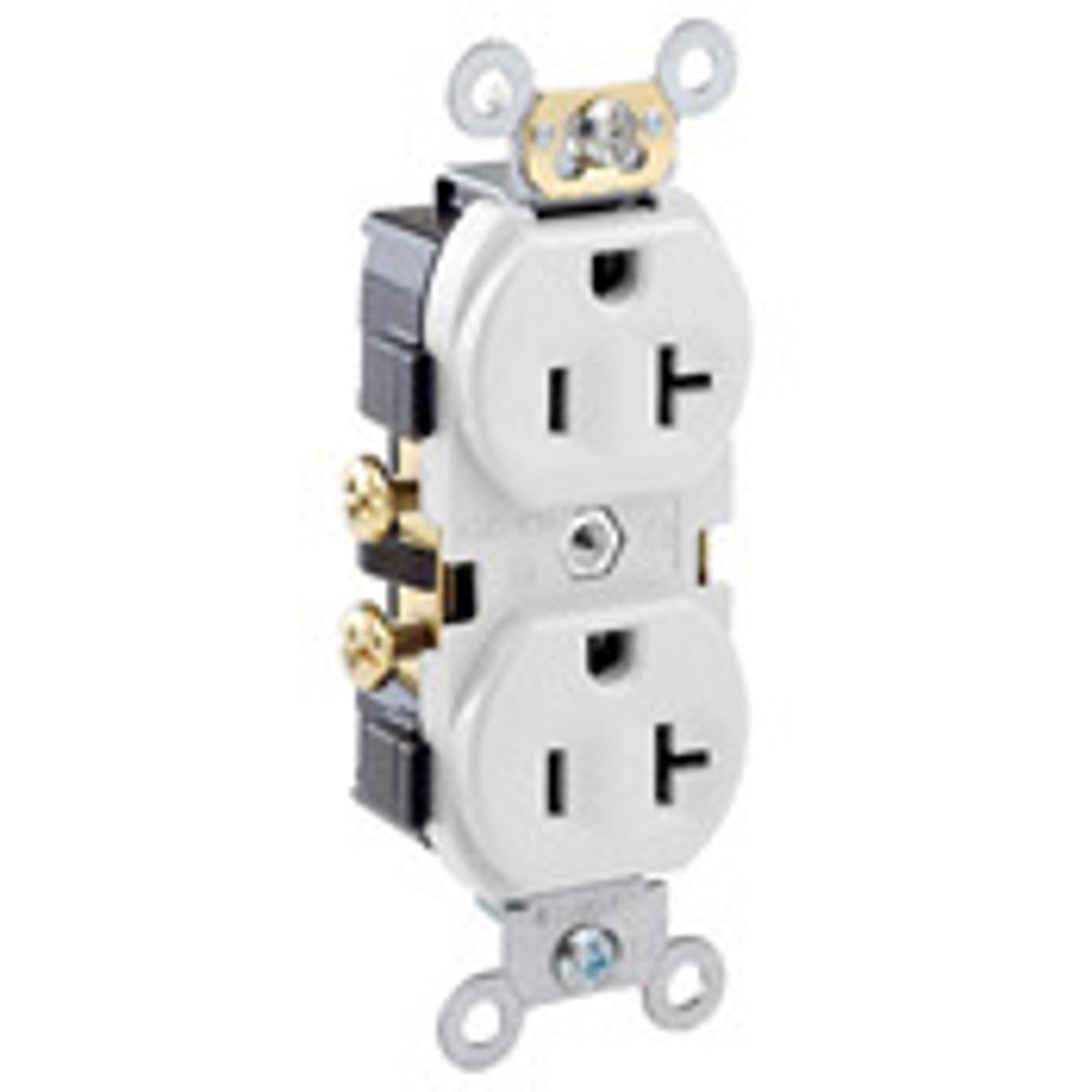

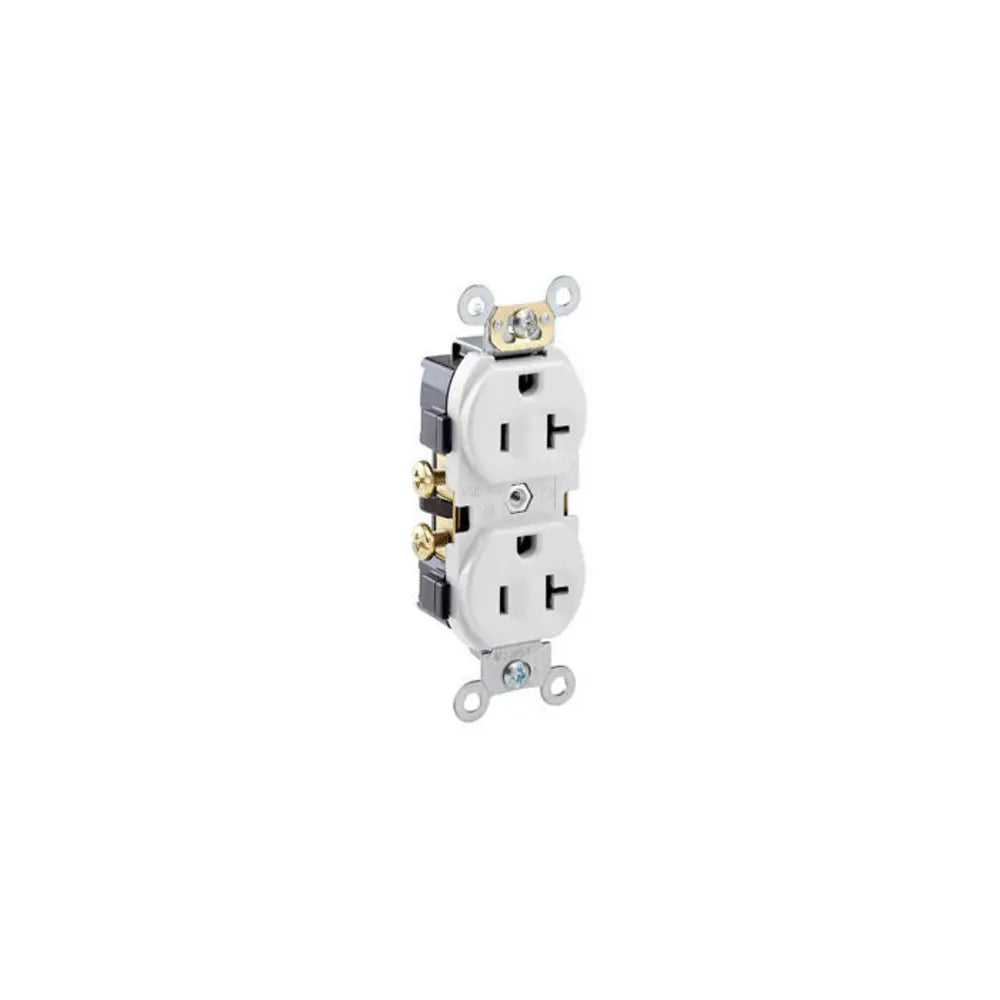

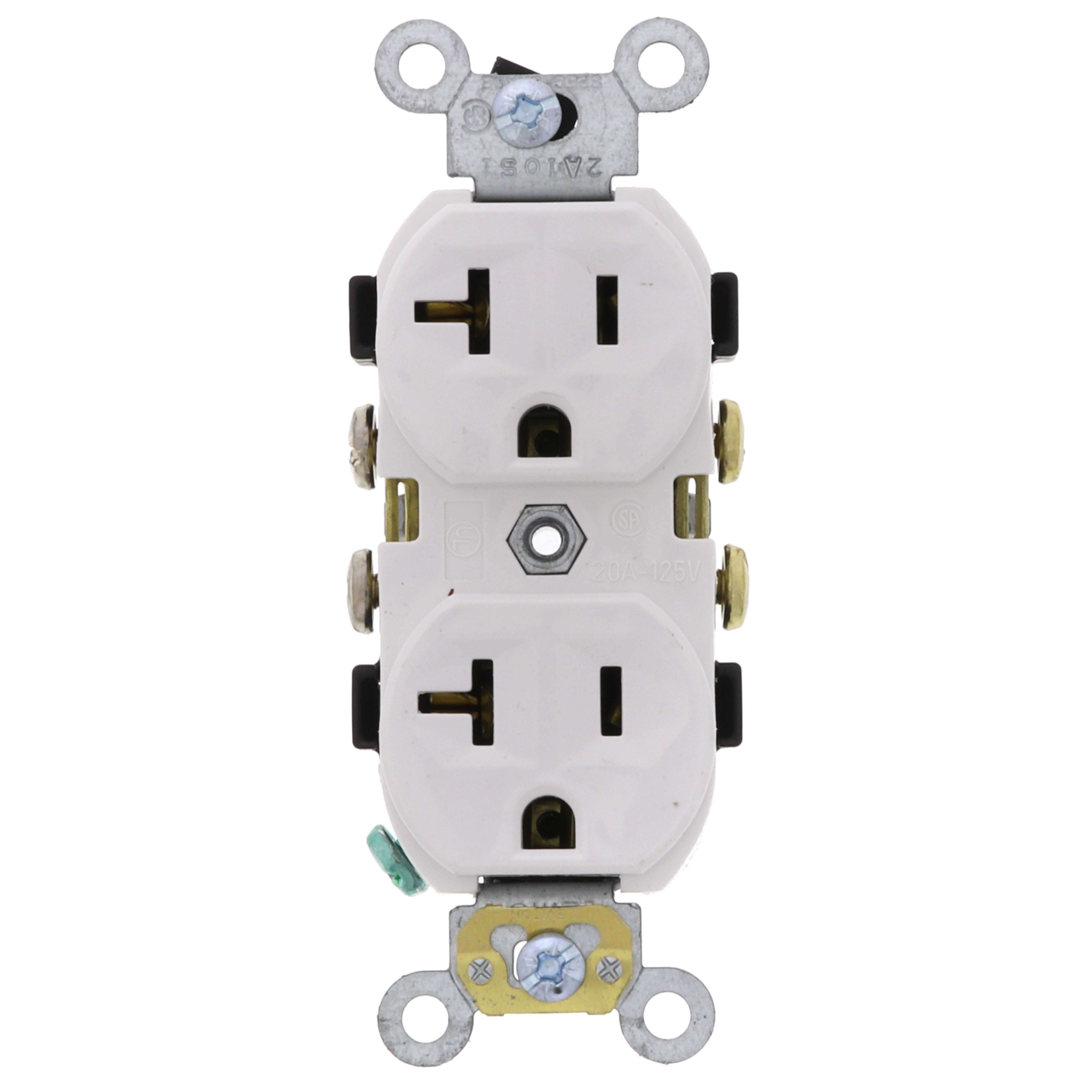

The LEVITON CR20-W is a straight blade receptacle designed to withstand demanding environments. This 125 VAC, 20 Amp receptacle is suitable for commercial use. It is available in a wide variety of configurations, including isolated ground and tamper resistant options.
Manufactured to withstand the demands of commercial and institutional applications
Heavy duty brass power contacts for maximum conductivity and plug retention
Shallow design for maximum wiring room in box
Product Highlights
This receptacle is ideal for hotels, schools, hospitals and commercial office buildings. It features heavy-duty brass power contacts for maximum conductivity.
Product Information
Standard Information
Brand: LEVITON
Manufacturer Part Number: CR20-W
Country of Origin: US
Technical Specifications
Type
1-Phase Duplex Indented Face
Grade
Commercial
Material
Thermoplastic
Enclosure
NEMA WD-1/WD-2/WD-6
Horsepower
1 hp
NEMA Rating
NEMA 5-20R
Manufacturer
LEVITON
Terminal Type
Side Wired
Voltage Rating
125V AC
Amperage Rating
20 A
Number of Poles
2
Number of Wires
3
Temperature Rating
-40 to 60 deg C
Constructional Feature
Impact Resistant
Configuration
5-20R
Ground Type
Grounding
Wiring
Side
Approval
UL 498, CSA C22.2, NOM 057
Applicable Standard
ANSI C73, NEMA WD-6
Contact Material
Brass
Strap Material
Zinc Plated Steel
Mounting
Screw
Connection
Screw terminal
Country of Origin
US
Operating Temperature
-40 degrees C to 60 degrees C
Dielectric Strength
2000 V
Device Type
Duplex Receptacle Outlet
Feature
Indented Face
Current Limiting
Full Rated Current
Grounding
Self-Grounding
Pole
2
Body Material
Thermoplastic
Face Material
Thermoplastic
Ground Clips
Brass
Grounding Screw
Steel 8-32
Line Contacts
Brass .031 Thick
Terminal Screws
Steel 8-32
Product ID
Ratings are permanently marked on device
Screw Terminal Torque
14-18 in-lbs
Terminal Accom.
14-10 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Termination
Side Wire
ANSI
C-73
CSA C22.2 No. 42
File 152105
NOM
057
UL498
File E13399
Phase
1 Phase
Wire Size
14-10
NEMA
5-20R
Application
Commercial
Voltage
125 Volt
Amperage
20 Amp
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Sub Brand
Commercial Receptacles
Wire Count
3
Number of Phases
1 Phase
Operating Temp
-40C to 60C
AC Horsepower Ratings At Rated Voltage
1 HP
Standards and Certifications
NEMA WD-1 WD-6
UL Fed Spec WC-596 File
E13399
CSA C22.2 No. 42 File
152105
UNSPSC
39121406
UPC 12
078477815458
Voltage Rating UOM
VAC
Amperage Rating UOM
A
Temperature Rating UOM
deg C
Horsepower UOM
hp
Manufacturer Item Status
Active
Brand Name
Leviton
UPC
078477815458
GTIN
00078477815458
Alternative Part Number
7333856
Country
USA|Canada
IDEA Index ID
7333856
Poles
2
Wires
3
Blade Type
Straight Blade
Size
46 H x 1.56 W x 19 D IN
Receptacle Type
Straight Blade Receptacle, Duplex
Number Of Poles
2-Pole
Number Of Wires
3-Wire
Description
LEV CR20-W WHT DPLX RCPT NEMA5-20R
Stripped Catalog Number
CR20W
Catalog Description (MFR)
20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Narrow Body Duplex Receptacle, Straight Blade, Commercial Grade, Self Grounding, , , Side Wired, Steel Strap, - White
Invoice Description (MFR)
WH REC DUP INDENT 2PO3WI 5-20R 20A125V
Concatenated Invoice Description
WH REC DUP INDENT 2PO3WI 5-20R 20A125V
American Recovery and Reinvestment Act (ARRA) Compliant
C
NEMA Receptacle Configuration
5-20R
Item
Receptacle
Market
Commercial
Includes
Strap Material
Polarized
Yes
Mount Type
Flush
Sub-Category
Duplex Receptacles
Overall Depth
1.08 in
Wiring Method
Side
Face Plate Width
1.53 in
Special Features
Indented Face
Face Plate Height
2.75 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Number of Outlets
2
Wire Connection Type
Screw Terminals
Resistance Properties
Not Applicable
Wire Connection Types
Screw Terminals
Connection Orientation
Straight
Application Environment
Commercial
Number of Poles & Wires
2 Pole / 3 Wire
Key Resistance Properties
Standard Resistance
Includes Mounting Hardware
Yes
Amps - Plugs and Receptacles
20 A
Item - Plugs and Receptacles
Duplex Receptacle Outlet
Color - Plugs and Receptacles
White
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
NEMA Receptacle Configuration - Plugs and Receptacles
