Leviton CR20-T narrow body duplex receptacle straight blade 20-amp 125-volt

Brand: LEVITON
SKU: CR20-T
Availability: In Stock

Ships same day if ordered by 12 pm
$22.23
$22.23
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

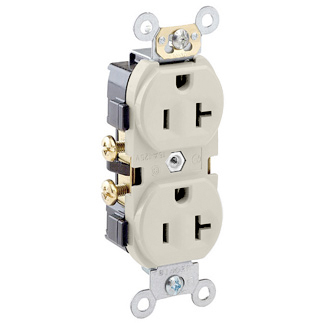

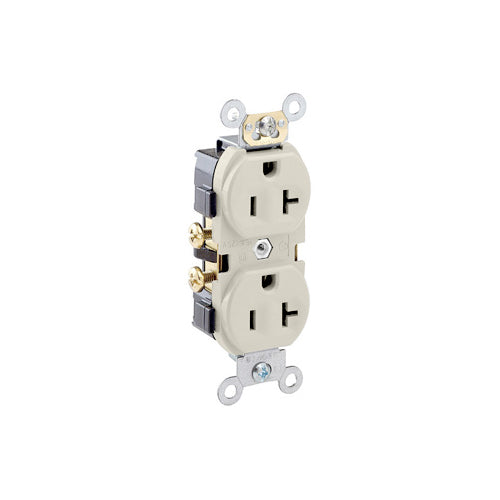

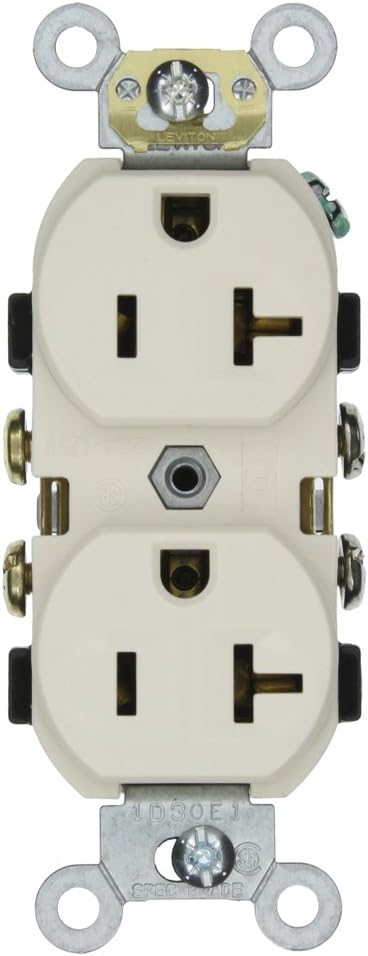

The Leviton CR20-T is a 20-Amp, 125-Volt, NEMA 5-20R narrow body duplex receptacle designed for commercial applications. This straight blade, self-grounding device features a thermoplastic body and side wire terminals, making it suitable for demanding environments such as hotels, schools, and commercial office buildings. It provides reliable power distribution with an indented face design.

  • 20-Amp, 125-Volt, NEMA 5-20R narrow body duplex receptacle with straight blade configuration.
  • Commercial Specification Grade with self-grounding for demanding environments.
  • Features heavy-duty brass power contacts and a shallow design for maximum wiring room.

Product Highlights

This commercial-grade receptacle offers robust construction and reliable performance for various institutional and commercial settings.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: CR20-T
  • Country of Origin: USA
Technical Specifications
Dielectric Voltage
2000V per UL498
Type
1-Phase Duplex Indented Face Self-Grounding
Grade
Commercial Specification
Material
Thermoplastic
NEMA Rating
5-20R
Terminal Type
Side Wire
Voltage Rating
125 VAC
Amperage Rating
20 A
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 to 60 deg C
Standard
NEMA WD-1 & WD-6, ANSI C-73, NOM Certified 057, CSA C22.2 No. 42 File 152105, UL Listed 498 File E13399
Grounding
Self-Grounding
Wire Size
14-10 AWG
Device Type
Duplex Receptacle Outlet
Face Material
Thermoplastic
Mounting Type
Wall Box, Flush, Screw
Number of Phases
1
Flammability Rating
V-2 Per UL94
Made in USA
Yes
Number of Outlets
2
RoHS Compliant
Yes
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Ground Clips Material
Brass
Grounding Screw Material
Steel #8-32
Line Contacts Material
Brass (.031 Thick)
Strap Material
Zinc-Plated Steel
Terminal Screws Material
Steel #8-32
Screw Terminal Torque
14-18 in-lbs
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
