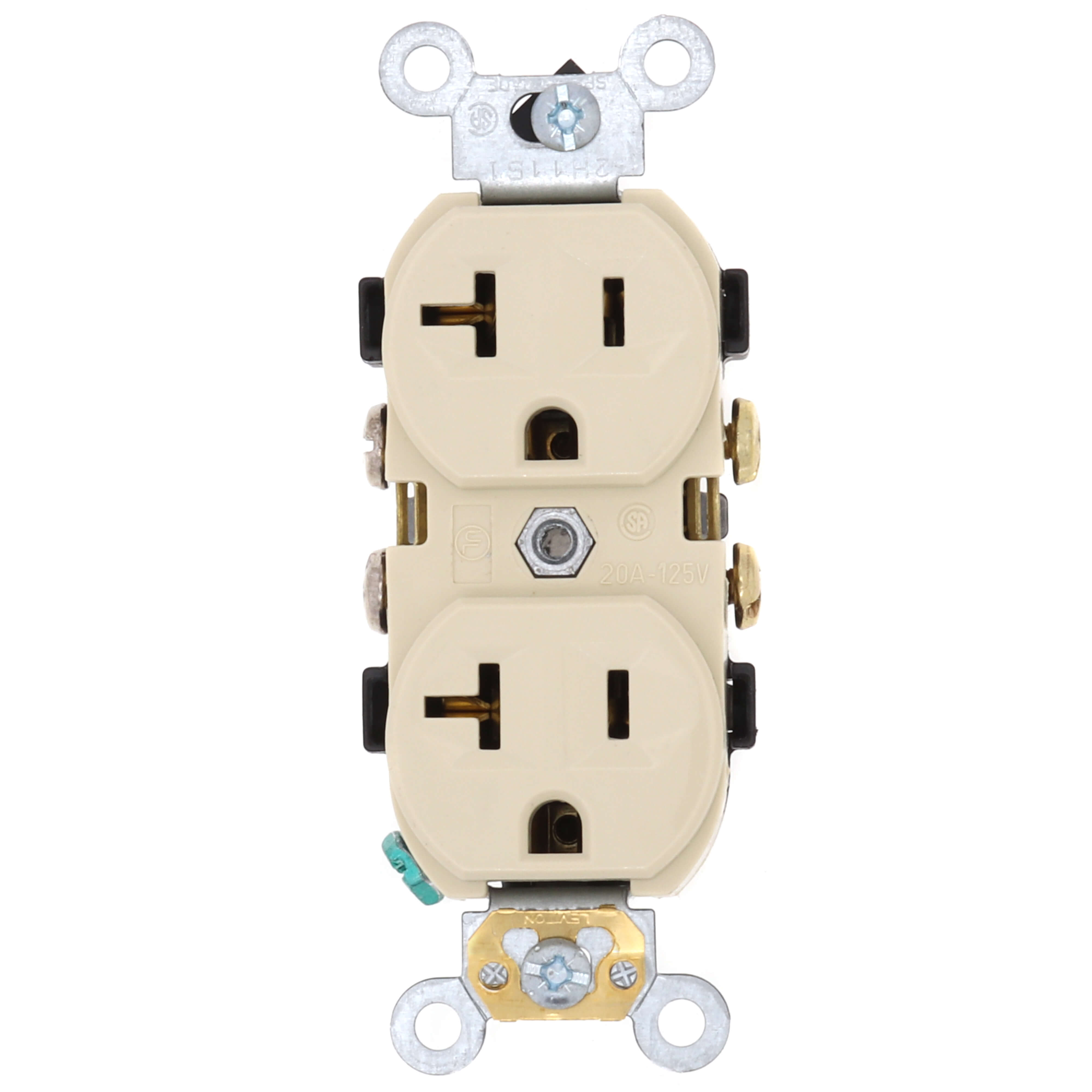

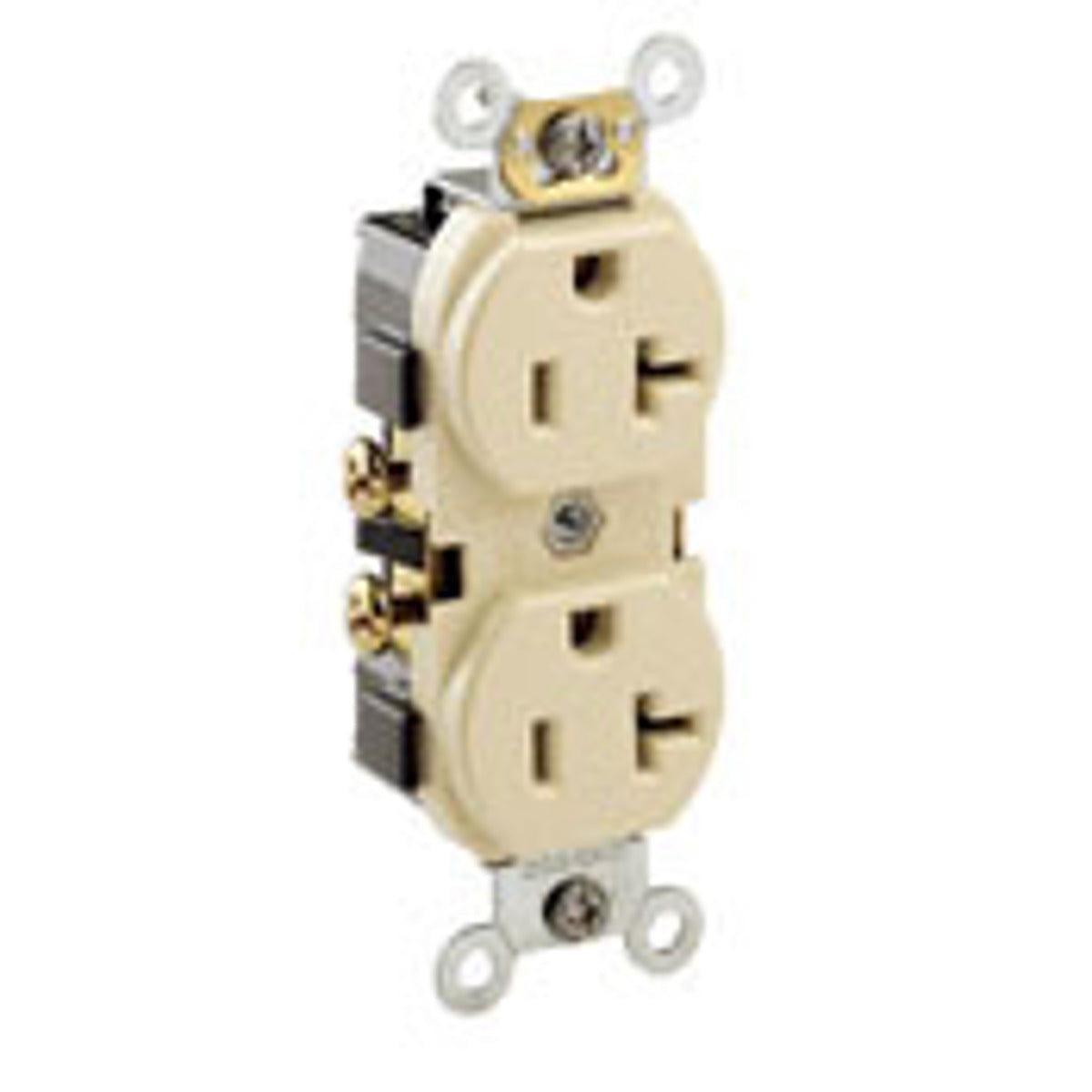

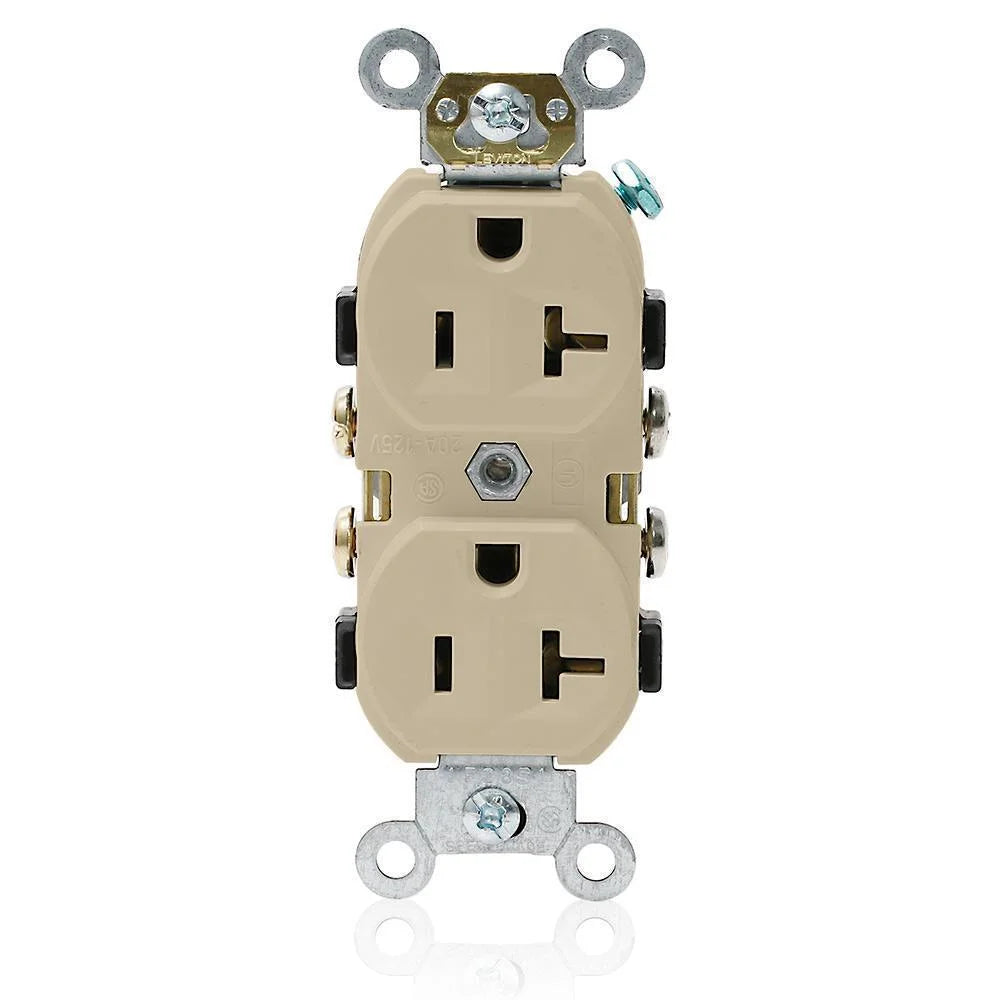

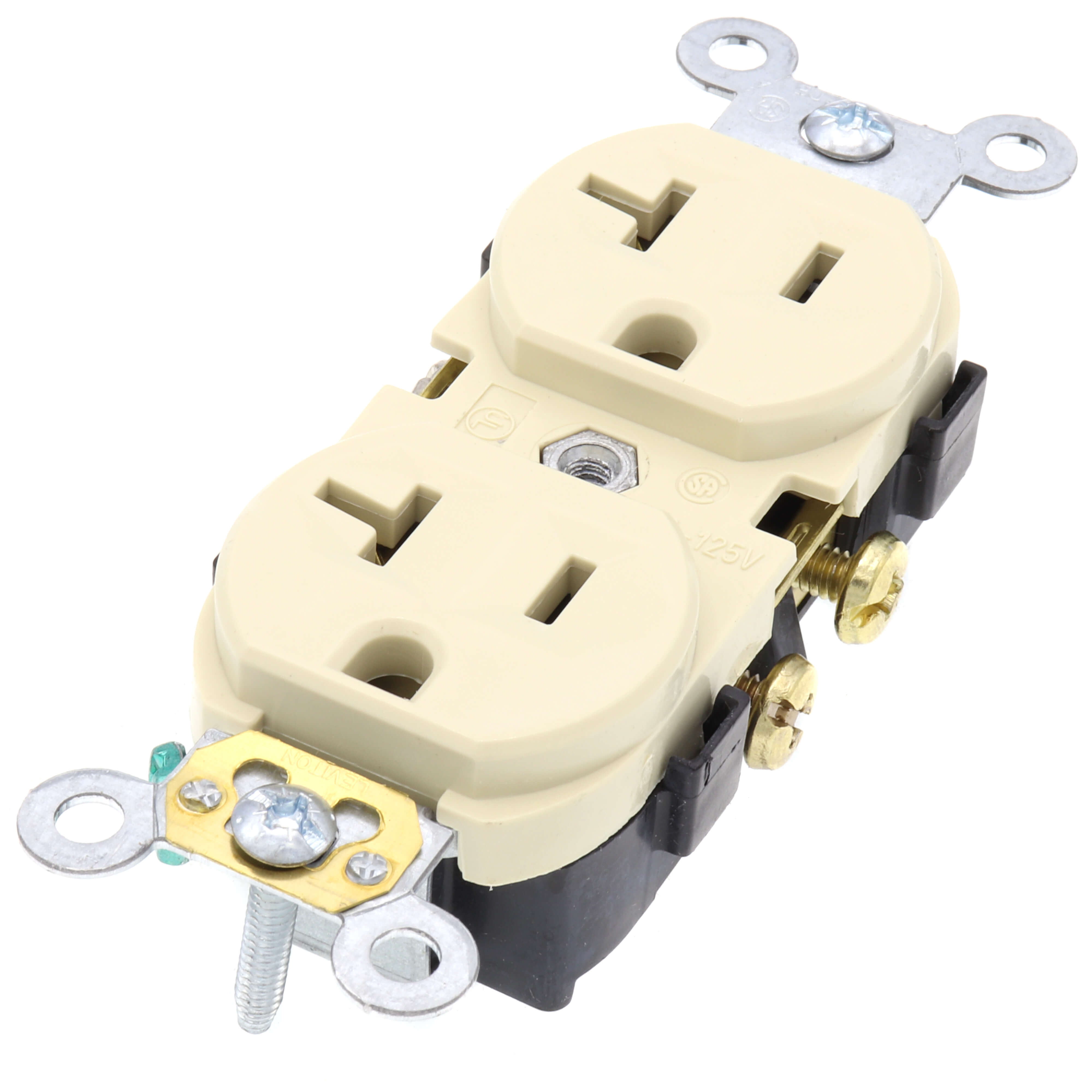

Leviton CR20-I 20A 125V Narrow Body Duplex Receptacle Straight Blade Commercial (15 Pack)

Product Description

The Leviton CR20-I is a 20A 125V narrow body duplex receptacle with a straight blade, designed for commercial use. This heavy-duty specification grade receptacle is built to withstand demanding environments. Ideal for hotels, schools, hospitals, and commercial office buildings.

• Heavy-Duty Specification Grade
• Designed to withstand demanding environments
• Suitable for hotels, schools, hospitals, and commercial office buildings

Product Highlights

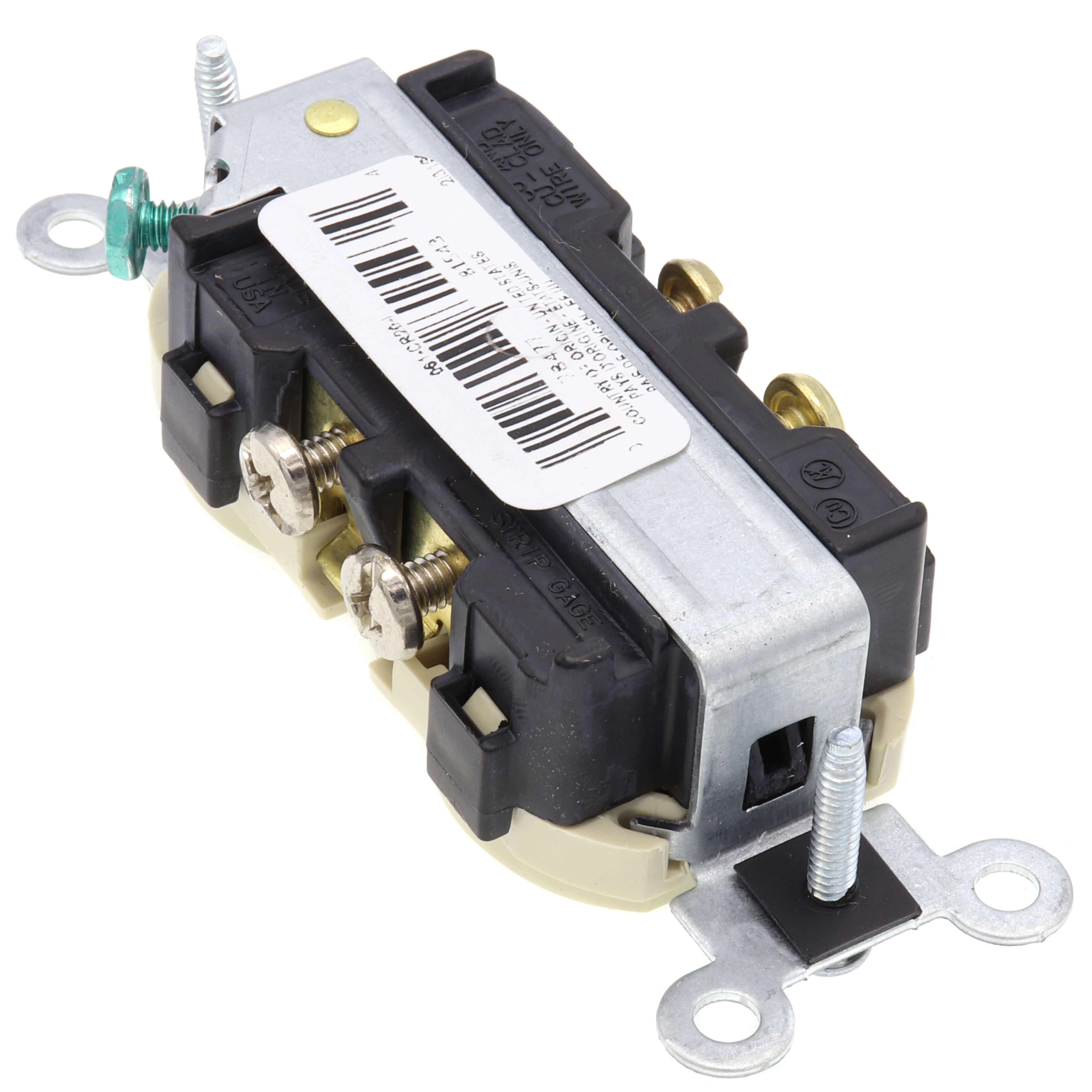

This receptacle features a narrow body, self-grounding design, and side wiring for easy installation. It is UL and CSA certified.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CR20-I
• Country of Origin: US

Technical Specifications

• Color: ivory
• Finish: ivory
• Voltage: 125 Volts
• Amperage: 20 Amps
• Power Source: Wired Electric
• Amperage Capacity: 20 Amps
• Compatible Devices: All
• Batteries Required?: No
• Poles: 2
• Wires: 3
• Type: Duplex, Narrow
• Constructional Feature: Impact Resistant
• Configuration: 5-20R
• Voltage Rating: 125 V
• Current Rating: 20 Ampere
• Ground Type: Grounding
• Material: Thermoplastic
• Wiring: Side
• Grade: Commercial, Specification
• Approval: UL 498, CSA C22.2, NOM 057
• Applicable Standard: ANSI C73, NEMA WD-6
• Power Rating: 1 HP
• Contact Material: Brass
• Strap Material: Zinc Plated Steel
• Temperature Rating: -40 to 60 Deg C
• Application: Commercial Grade
• Phase: 1-Phase
• NEMA Rating: 5-20R
• Standard: UL/CSA
• Connection: Screw terminal
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Country of Origin: US
• Horsepower: 1 hp
• Terminal Type: Side Wired
• Dielectric Strength: 2000 (Min.)
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Wire Size: 14-10
• Operating Temp: -40C to 60C
• AC Horsepower RatingsAt Rated Voltage: 1 HP
• Standards and Certifications: NEMA WD-2 WD-6
• ANSI: C-73
• UL498 File: E13399
• UL Fed Spec WC-596 File: E13399
• CSA C22.2 No. 42 File: 152105
• NOM: 057
• Ground: Self Grounding
• Pole: 2
• Wire: 3
• Termination: Side
• Face Material: Nylon
• Body Material: Nylon
• Electrical Specifications Dielectric Voltage: Withstands 2000V per UL498
• Current Limiting: Full Rated Current
• Temperature Rise Max: 30C after 100 cyc OL at 150 pct rated current
• Environmental Specifications: Flammability Rated V-2 per UL94
• Number of Outlets: 2
• Total Power Outlets: 2
