Product Description

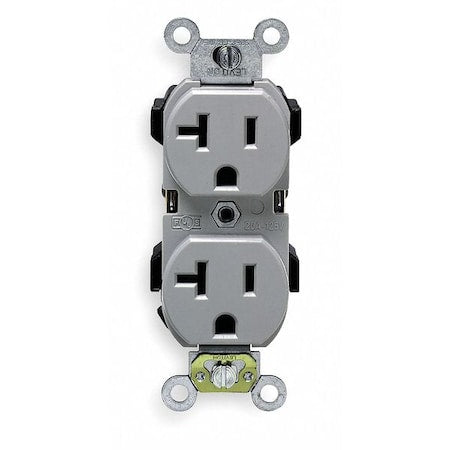

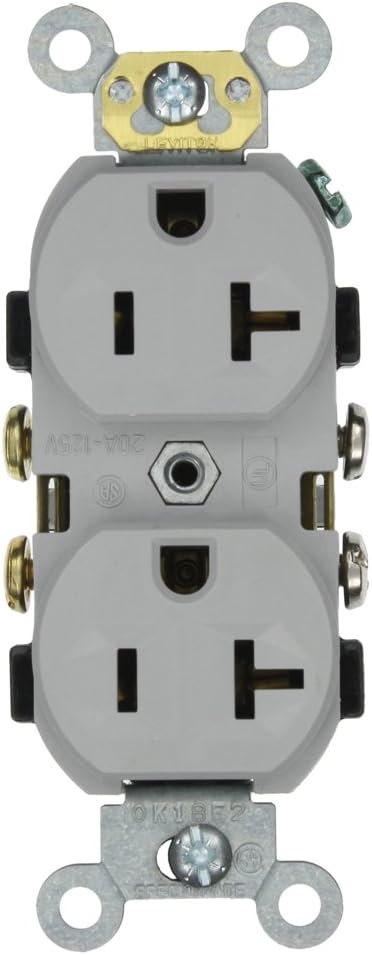

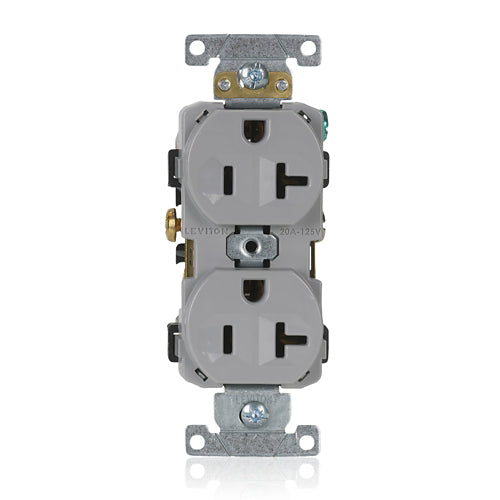

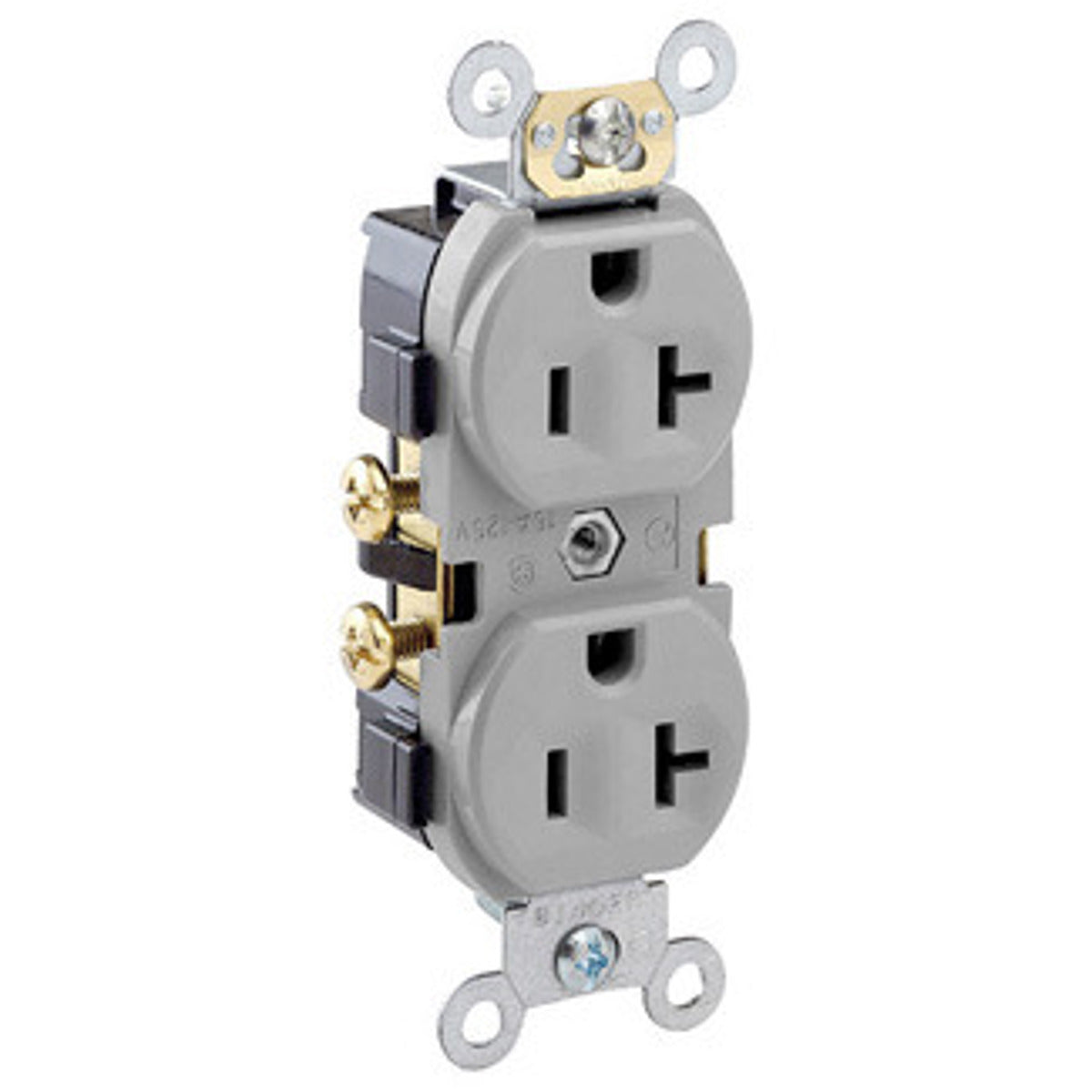

The Leviton CR20-GY is a 20-Amp, 125-Volt, narrow body duplex receptacle with a straight blade. It is commercial grade and self-grounding. Designed to withstand demanding environments, these commercial grade receptacles are suitable for hotels, schools, hospitals, and commercial office buildings.
- 20-Amp
- 125-Volt
- Narrow Body Duplex Receptacle
Product Highlights
This receptacle features a straight blade and is self-grounding. Ideal for commercial applications.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: CR20-GY
-
Country of Origin: US
Technical Specifications
-
Color: Gray
-
Voltage: 125 VAC
-
Material: Steel
-
Special Features: Indented Face
-
Amperage: 20 Amps
-
Poles: 2
-
Wires: 3
-
Phase: 1-Phase
-
Receptacle Type: Duplex Indented Face Straight Blade
-
Amperage Rating: 20 A
-
Application: Hotels, Schools, Hospitals and Commercial Office Buildings Applications
-
Grade: Commercial Specification Grade
-
Horsepower: 1 hp
-
NEMA Rating: NEMA 5-20R
-
Number of Poles: 2
-
Number of Wires: 3
-
Standards/Approvals: NEMA WD-2/WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Temperature Rating: -40 to 60 deg C
-
Terminal Type: Side Wired
-
Type: Duplex, Narrow
-
Voltage Rating: 125 VAC
-
Manufacturer Part Number: CR20-GY
-
Country of Origin: US
-
Mfg Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD-2/WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Amperage Rating UOM: A
-
Country: USA|Canada
-
Horsepower UOM: hp
-
Temperature Rating UOM: deg C
-
Voltage Rating UOM: VAC
-
NEMA: 5-20R
-
RoHS Compliant: Yes
-
Grounding: Self-Grounding
-
Pole: 2
-
Wire: 3
-
Flammability: Rated V-2 per UL94
-
Body Material: Polypropylene
-
Face Material: Nylon
-
Ground Clips: Brass
-
Grounding Screw: Steel 8-32
-
Line Contacts: Brass .031 Thick
-
Strap Material: Zinc-Plated Steel
-
Terminal Screws: Steel 8-32
-
Product ID: Ratings are permanently marked on device
-
Screw Terminal Torque: 14-18 in-lbs
-
Terminal Accom.: 14-10 AWG
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Termination: Side Wire
-
Device Type: Duplex Receptacle Outlet
-
Feature: Indented Face
-
ANSI: C-73
-
NOM: 057
-
Applicable Standards: UL 498, Fed Spec W-C-595G, CSA C22.2 No. 42
-
Total Power Outlets: 2
-
Power Plug Type: Type B - 3 pin (North American)
-
Connector Type: Plug In
-
Smart Home Compatibility: Not Smart Home Compatible
-
Configuration: 5-20R
-
Constructional Feature: Impact Resistant
-
Ground Type: Grounding
-
Wiring: Side
-
Operating Temperature: -40 00b0C to 60 00b0C
-
Number of Outlets: 2
-
Environmental Conditions: Flammability (Rated V-2 per UL94)
-
Wire Size: 14-10 AWG
-
Cross Reference Products: CR20GRY, CR20GRY, CR20GY
-
Mounting: Wall
-
Number Of Poles: 2
-
Number Of Wires: 3
-
Connection: Side Wired
-
Item Type: Straight Blade;Duplex Outlet
-
Width: 1.56
-
Width UOM: Inch
-
Height: 46
-
Height UOM: Inch
-
Depth: 19
-
Depth UOM: Inch
-
Size: 46 H x 1.56 W x 19 D
-
Approval: UL 498, CSA C22.2, NOM 057
-
PDW ID: ECL157280
-
Product UPC: 07847781544
-
At Rated Voltage: 1 HP
-
Current Limiting: Full Rated Current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Number of Poles & Wires: 2 Pole / 3 Wire
-
Key Resistance Properties: Standard Resistance
-
Includes Mounting Hardware: Yes
-
Amps - Plugs and Receptacles: 20 A
-
Item - Plugs and Receptacles: Duplex Receptacle Outlet
-
Color - Plugs and Receptacles: Gray
-
Maximum Operating Temperature: 60 Degrees C
-
Minimum Operating Temperature: -40 Degrees C
-
NEMA Receptacle Configuration: 5-20R
-
Primary Resistance Properties: 20 A
-
Voltage - Plugs and Receptacles: 125VAC
-
Additional Electrical Protection: Standard Protection
-
Hazardous Location Specification: Not Applicable
-
Additional Electrical Protections: Standard Protection
-
Mount Hole Center-to-Center Height: 3.28 in
-
Outlet Type - Plugs and Receptacles: Duplex
-
Country of Origin (subject to change): United States
-
Wiring Method - Plugs and Receptacles: Side
-
NEMA Receptacle Configuration - Plugs and Receptacles: 5-20R
