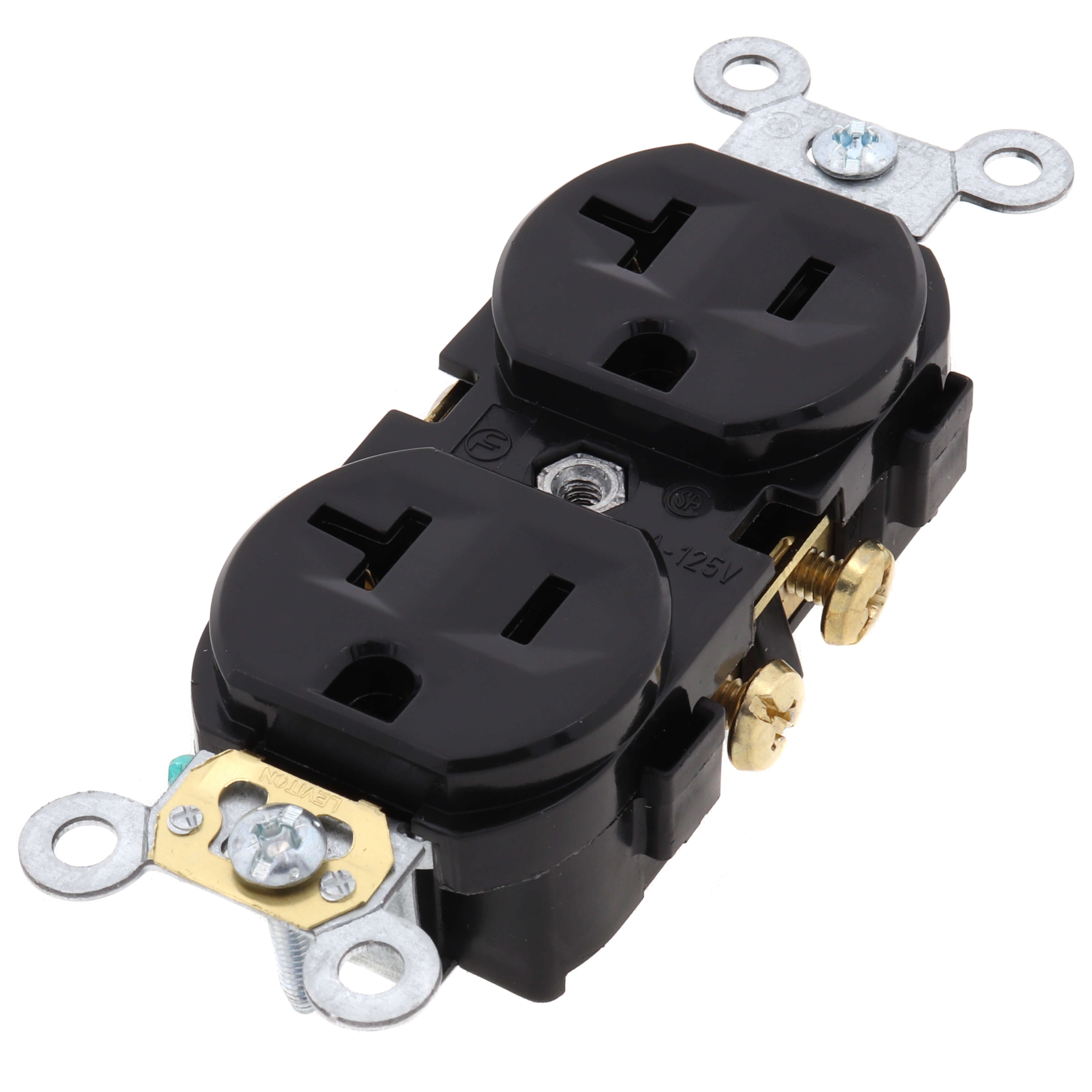

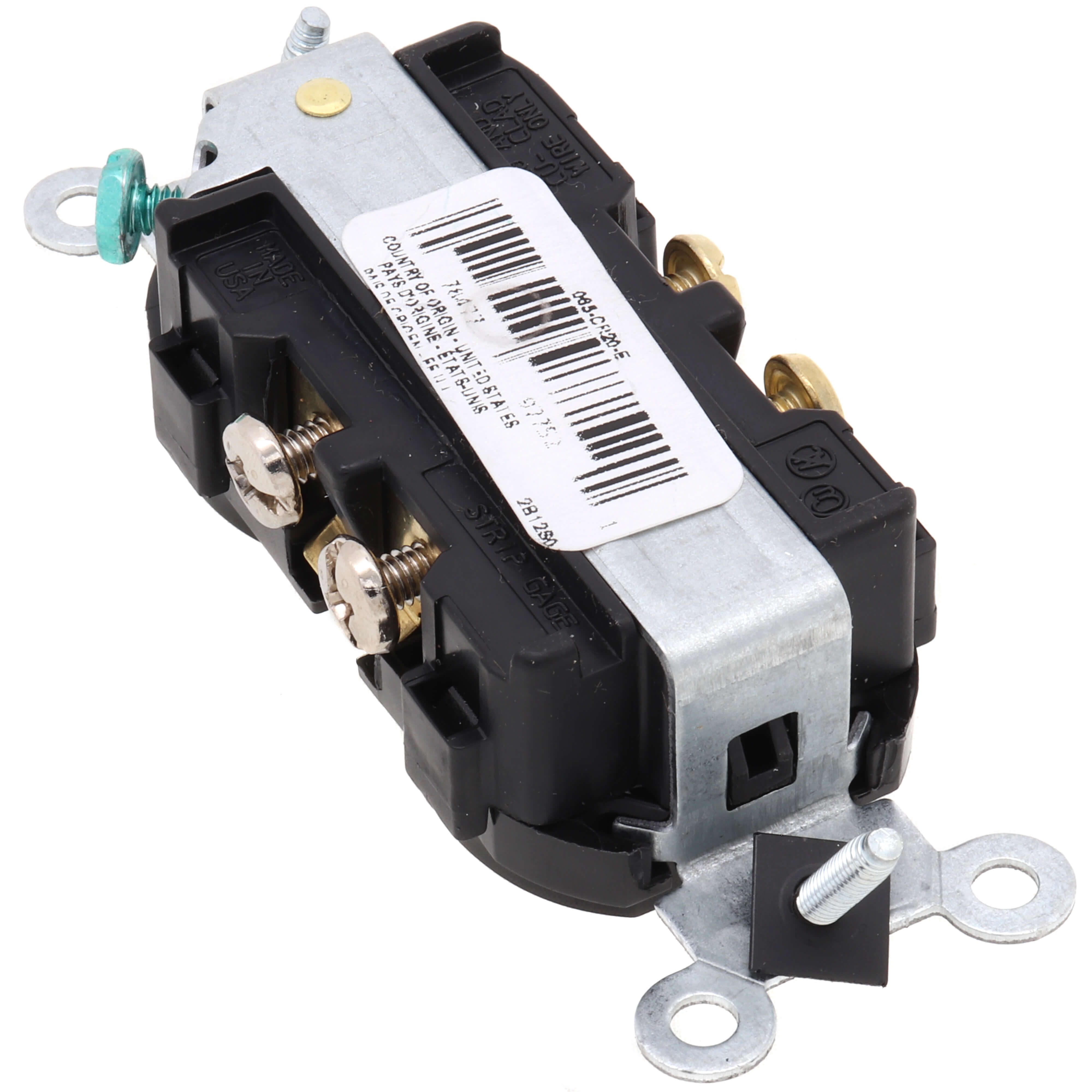

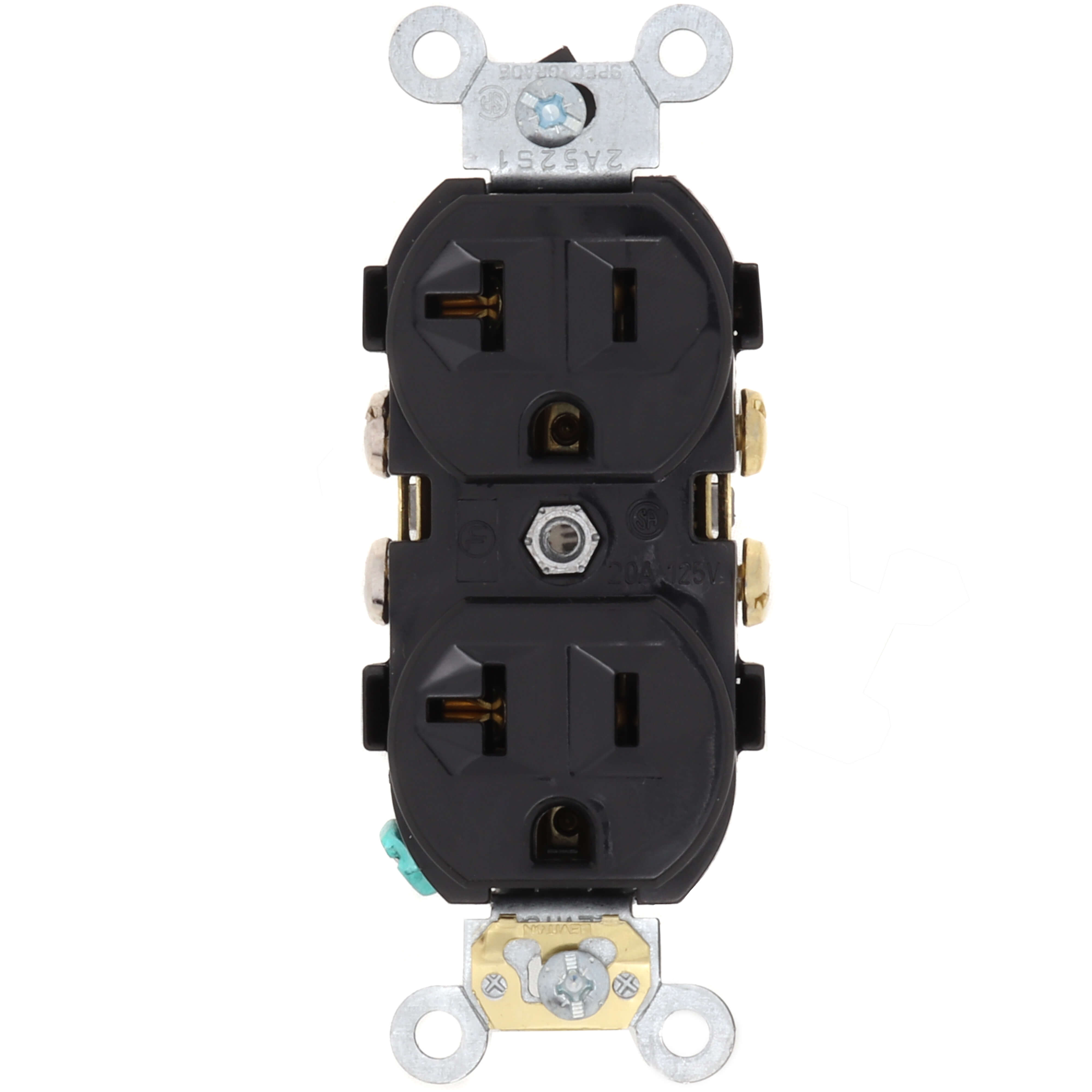

Leviton CR20-E 1-Phase Duplex Indented Face Self-Grounding Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires

Product Description

The Leviton CR20-E is a 1-Phase duplex receptacle with an indented face and self-grounding straight blade. Rated at 125 VAC and 20 A, it features 2 poles and 3 wires. Designed to withstand demanding environments, this commercial-grade receptacle is suitable for hotels, schools, hospitals, and commercial office buildings.

• Duplex Indented Face
• Self-Grounding
• Straight Blade

Product Highlights

This receptacle features heavy-duty brass power contacts for maximum conductivity and plug retention, along with a shallow design for maximum wiring room.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CR20-E
• Country of Origin: US

Technical Specifications

• Amperage: 20 A
• Poles: 2
• Wires: 3
• Voltage: 125 VAC
• Phase: 1-Phase
• Amperage Rating: 20 A
• Enclosure: NEMA WD-1/WD-2/WD-6
• Grade: Commercial Specification Grade
• Horsepower: 1 hp
• Material: Thermoplastic
• NEMA Rating: NEMA 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Side Wire
• Type: 1-Phase Duplex Indented Face Self-Grounding
• Voltage Rating: 125 VAC
• Operating Temperature: -40 to 60 deg C
• Grounding: Self-Grounding
• Body Material: Thermoplastic
• Face Material: Thermoplastic
• Line Contacts: Brass .031 Thick
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• Strap Material: Zinc Plated Steel
• Grounding Screw: Steel 8-32
• Terminal Screws: Steel 8-32
• Flammability: Rated V-2 per UL94
• Terminal Accom.: 14-10 AWG
• Current Limiting: Full Rated Current
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Screw Terminal Torque: 14-18 in-lbs
• Manufacturer Name: Leviton
• Brand Name: Leviton
• UPC: 078477977521
• GTIN: 00078477977521
• Alternative Part Number: 7362955
• Amperage Rating UOM: A
• Horsepower UOM: hp
• Temperature Rating UOM: deg C
• Voltage Rating UOM: VAC
• Mounting: Strap
• Contact Material: 0.031 Inch Brass
• Conductor Size: 14-10 AWG
• Standards: UL 498 E13399 Listed, CSA C22.2 No.42, 152105 Certified, NEMA WD-1 and WD-6 Standard, ANSI C73, NOM 057 Certified
• Connection Type: Side Wired
• Mounting Type: Surface
• AWG Range: 14 - 10 AWG
• No. of Wires: 3
• Rated Voltage: 125V
• No. of Poles: 2
• ADI Part Number: LV-CR20E
• Manufacturer: Leviton Mfg. Company, Inc
• Product Name: 20 Amp Duplex Receptacle/Outlet, Commercial Grade, Self-Grounding
• Product Type: Power Socket
• Receptacle Type: Duplex
• Current Rating: 20 A
• RoHS Compliant: True
• Pole: 2
• Wire: 3
• ANSI: C-73
• NEMA: WD-1 & WD-6
• NOM: 057
• Applicable Standards: UL 498, Fed Spec W-C-595G, CSA C22.2 No. 42
• Device Type: Duplex Receptacle Outlet
• Feature 4: Indented Face
• AC Horsepower Ratings At Rated Voltage: 1 HP
• Nema: 5-20R
• ECCN: EAR99
• Standard: NEMA WD-1 & WD-6
• Maximum Load Capacity: 1 hp
• Environmental Conditions: V2 Flammability Rated Per UL94
• Dielectric Strength: 2000 Volt
• Style: Duplex
• Terminal Connection: Side Wired
• UNSPSC: 39121406
• Energy Star Flag: No
• RoHS Flag: Contact manufacturer
• Item Name: Straight Blade Duplex Receptacle
• Maximum Wire Size: 10 AWG
• Minimum Wire Size: 14 AWG
• Number of Outlets: 2
• Wire Connection Type: Screw Terminals
• NEMA Enclosure Rating: Not Rated
• Resistance Properties: Not Applicable
• Wire Connection Types: Screw Terminals
• Connection Orientation: Straight
• Application Environment: Commercial
• Number of Poles & Wires: 2 Pole / 3 Wire
• Key Resistance Properties: Standard Resistance
• UL 94 Flammability Rating: V-2
• Amps - Plugs and Receptacles: 20 A
• Item - Plugs and Receptacles: Duplex Receptacle Outlet
• Maximum Operating Temperature: 60 Degrees C
• Minimum Operating Temperature: -40 Degrees C
• NEMA Receptacle Configuration: 5-20R
• Primary Resistance Properties: 20 A
• Voltage - Plugs and Receptacles: 125VAC
• Additional Electrical Protection: Standard Protection
• Additional Electrical Protections: Standard Protection
• Outlet Type - Plugs and Receptacles: Duplex
• Country of Origin (subject to change): United States
• Wiring Method - Plugs and Receptacles: Side
• NEMA Receptacle Configuration - Plugs and Receptacles: 5-20R
• GFCI: No
• Polarized: Yes
• Housing Color: Black
• Housing Material: Thermoplastic
• Cover Type: No Cover
• Special Features: Indented Face
• Ground Clips: Brass
