Product Description

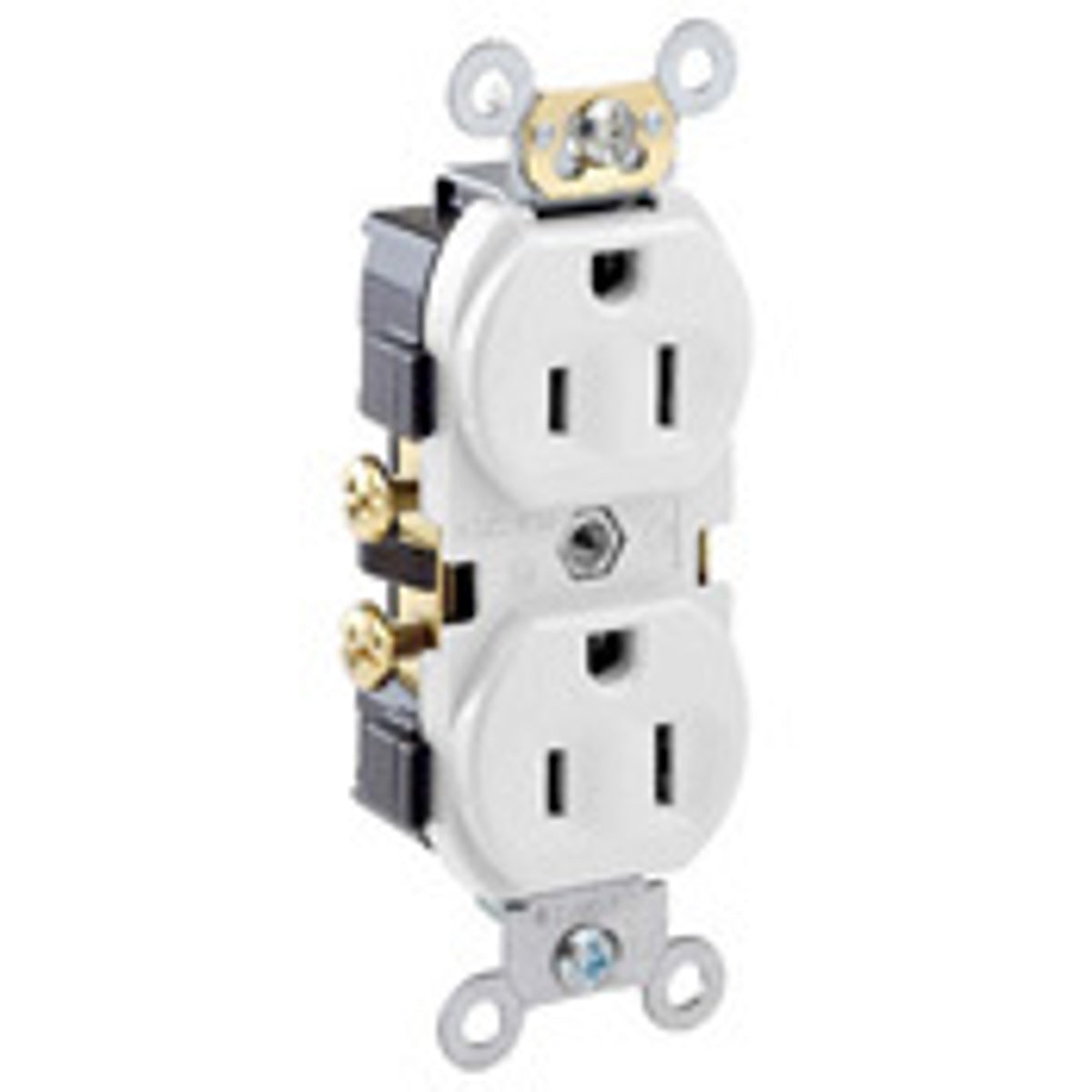

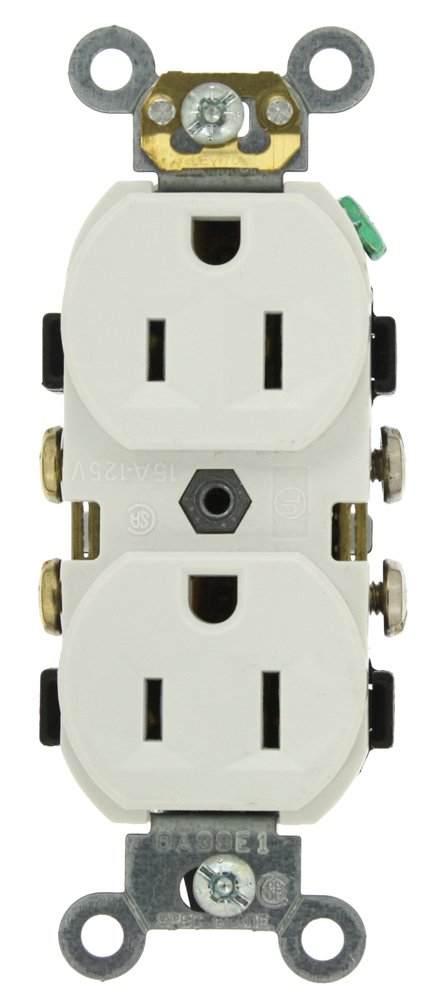

The LEVITON CR15-W is a narrow body duplex commercial grade outlet receptacle. These heavy-duty receptacles are widely specified for commercial building projects. Designed to withstand demanding environments, these are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
- Commercial Specification Grade
- Single-piece wraparound galvanized steel strap
- Brass ground contacts
Product Highlights
This receptacle features a thermoplastic nylon body and side wire terminal for easy installation. It is self-grounding and has a straight blade.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: CR15-W
-
Country of Origin: United States
Technical Specifications
-
Voltage: 125 VAC
-
Connector Type: Plug-In
-
Compatible Devices: All
-
Batteries Required?: No
-
Application: Commercial
-
Amperage: 15 A
-
Poles: 2
-
Wires: 3
-
Phase: 1-Phase
-
NEMA Rating: 5-15R
-
Grade: Commercial Grade
-
Temperature: -40 to 60 deg C
-
Terminal: Side Wire Terminal
-
Material: Thermoplastic
-
Receptacle Type: Duplex Receptacle
-
Blade Type: Straight Blade
-
Grounding: Self Grounding
-
Wiring: Side Wired
-
Number of Items: 1.0
-
Horsepower: 1/2 hp
-
Enclosure: NEMA WD-1/WD-2/WD-6
-
Standards/Approvals: NEMA WD-2/WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498 File No. E13399|UL94 V-2 Flammability Rating
-
Type: 1-Phase Duplex Indented Face Self-Grounding
-
Manufacturer Item Status: Active
-
Manufacturer Name: Leviton
-
Brand Name: Leviton
-
UPC: 078477815205
-
GTIN: 00078477815205
-
Alternative Part Number: 7333778
-
Amperage Rating UOM: A
-
Country: USA|Canada
-
Country Of Origin: US
-
Horsepower UOM: hp
-
IDEA Index ID: 7333778
-
Temperature Rating UOM: deg C
-
Voltage Rating UOM: VAC
-
Dielectric Voltage: Withstands 2000V per UL498
-
Current Limiting: Full Rated Current
-
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
-
Face Material: Nylon
-
Body Material: Nylon
-
NEMA: 5-15R
-
Wire Size: 14-10 AWG
-
Dielectric: 2000 V
-
Wire Count: 3
-
Device Type: Duplex Receptacle Outlet
-
Product UPC: 07847781520
-
12-Digit UPC: 078477815205
-
Applications: Heavy Duty (in Aaccordance with VDE)
-
Mounting Type: Screw, Wall Box, Flush
-
TC Connection: Side Wired
-
Conductor Size: 14-10 AWG
-
Connection Type: Side Wire
-
Number of Poles: 2 Pole
-
Number of Wires: 3 Wire
-
Number of Phases: 1 Phase
-
Termination Type: Side Wire
-
Operating Temperature: -40 degrees C
-
Environmental Conditions: UL 94 Requirements, V2 Rated Flammability
-
Catalog Number: CR15-W
-
Manufacturer: Leviton
-
Mounting: Wall
-
Number of Outlets: 2
-
Item Type: Straight Blade;Duplex Outlet
-
Width: 1.56
-
Width UOM: Inch
-
Height: 46
-
Height UOM: Inch
-
Depth: 1.245
-
Depth UOM: Inch
-
Size: 46 H x 1.56 W x 1.245 D
-
Voltage Rating: 125
-
Cross Reference Products: CR15WHI
-
Maximum Load Capacity: 1/2 hp
-
Strap Material: Zinc Plated Steel
-
Contact Material: 0.031 Inch Double-Wipe Brass
-
Style: Duplex
-
Standards: UL 498 E13399 Listed, CSA C22.2 No.42 152105, ANSI C-73, NOM 057, NEMA WD-1, WD-2, WD-6
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Ground Clips: Brass-Plated
-
Sub-Category: Duplex Receptacles
-
Line Contacts: Brass Double Wipe .031 Thick
-
Wiring Method: Side
-
Grounding Screw: Steel 8-32
-
Number of Gangs: 1
-
Power Indicator: No
-
Terminal Accom.: 14-10 AWG
-
Terminal Screws: Steel 8-32
-
At Rated Voltage: 1/2 HP
-
CSA C22.2 No. 42: File 152105
-
Tamper Resistant: No
-
Surge Suppression: No
-
Weather Resistant: No
-
Corrosion Resistant: No
-
Screw Terminal Torque: 14-18 in-lbs
-
Application Environment: Commercial
-
Amps - Plugs and Receptacles: 15
-
Item - Plugs and Receptacles: Receptacle
-
Amps - Plugs and Receptacles: 15
-
Color - Plugs and Receptacles: White
-
Voltage - Plugs and Receptacles: 125VAC
-
Outlet Type - Plugs and Receptacles: Standard Duplex
-
Country of Origin (subject to change): United States
-
Mounting Type - Plugs and Receptacles: Flush
-
Wiring Method - Plugs and Receptacles: Side
-
Weather Resistant - Plugs and Receptacles: No
-
NEMA Receptacle Configuration - Plugs and Receptacles: 5-15R
-
Power sockets: 2 power sockets
-
AC: AC 125 V
-
W: 2P+E
