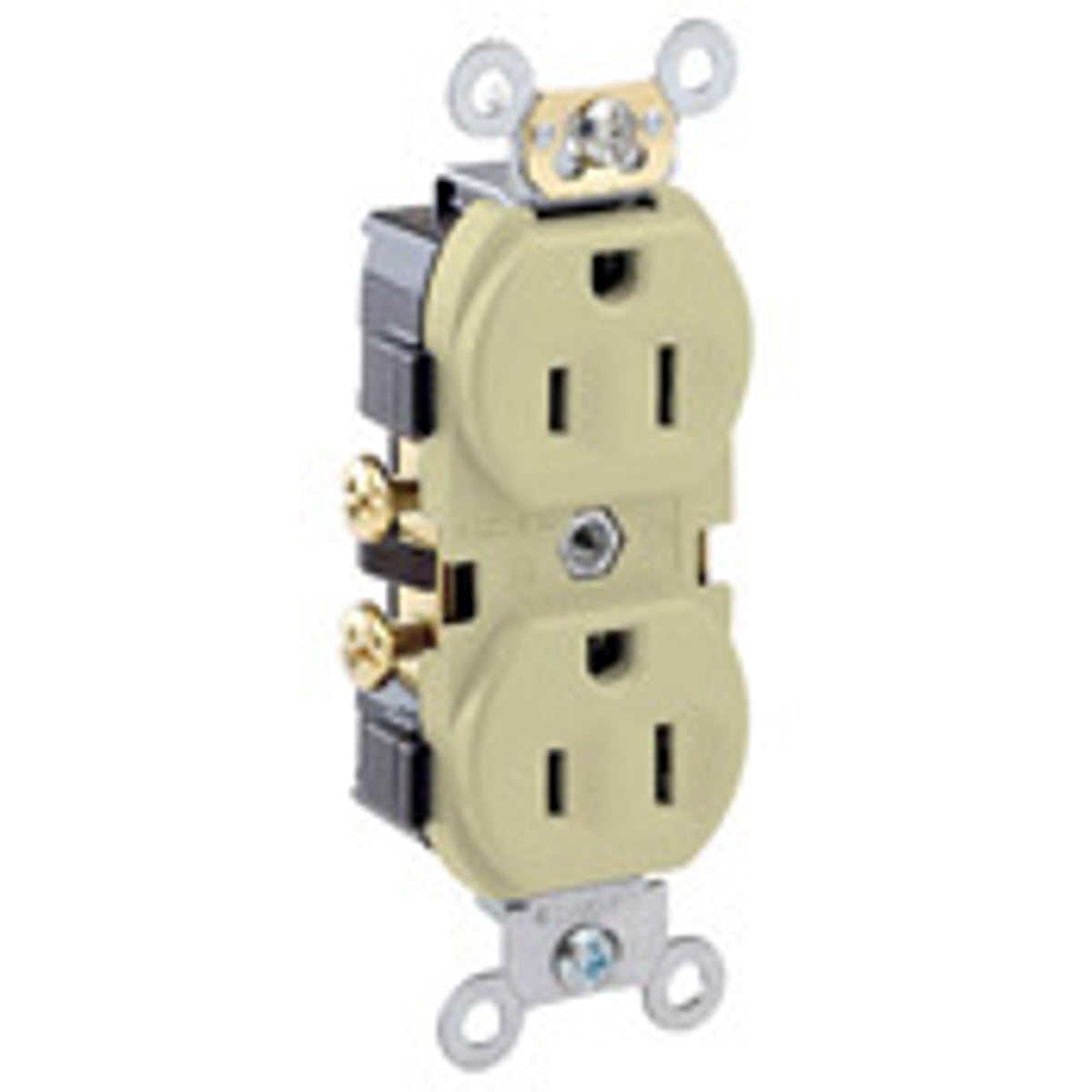

Leviton CR15-I 15 Amp, 125 Volt, Narrow Body Duplex Receptacle

Product Description

The LEVITON CR15-I is a heavy-duty specification grade receptacle designed to withstand demanding environments. This commercial grade, straight blade duplex receptacle is ideal for hotels, schools, hospitals, and commercial office buildings. It supports 15A and 125V. The shallow design allows for maximum wiring room in the box.

• Manufactured to Withstand the Demands of Commercial and Institutional Applications
• Heavy Duty Brass Power Contacts for Maximum Conductivity and Plug Retention
• Shallow Design for Maximum Wiring Room in Box

Product Highlights

Durable duplex receptacle for commercial and institutional applications. Designed for maximum conductivity and easy installation.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: CR15-I
• Country of Origin: United States

Technical Specifications

• UNSPSC Code: 39121400
• Type: 1-Phase Duplex Indented Face Self-Grounding
• Grade: Commercial
• Material: Thermoplastic
• Enclosure: NEMA WD-1/WD-6
• Horsepower: 1/2 hp
• NEMA Rating: NEMA 5-15R
• Terminal Type: Side Wire
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 deg C
• MPN: CR15-I
• Brand: LEVITON
• UPC: 078477814918
• Country of Origin: US
• Mfg Standards/Approvals: ANSI (C-73), CSA C22.2 NO 42 (File 152105), NEMA (WD-1, WD-6), NOM Certified (057), UL 498 (File E13399), UL Fed Spec WC-596 (File E13399)
• Dielectric Voltage: Withstands 2000V per UL498
• Current Limiting: Full Rated Current
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Body Material: Nylon
• Face Material: Nylon
• Mounting Type: Screw, Wall Box, Flush
• TC Connection: Side Wired
• Conductor Size: 14-10 AWG
• Connection Type: Side Wire
• Number of Phases: 1 Phase
• Termination Type: Side Wire
• Flamability Class: Rated V-2 Per UL94
• Operating Temperature: -40 degrees C
• Environmental Conditions: UL 94 Requirements, V2 Rated Flammability
• Amperage: 15 A
• Voltage: 125 VAC
• Pole: 2
• Wire: 3
• Grounding: Grounded
• Polarized: Yes
• Standards: ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399
• Cover Type: No Cover
• Mount Type: Flush
• Device Type: Duplex Receptacle Outlet
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• Flammability: Rated V-2 per UL94
• Ground Clips: Brass-Plated
• Strap Material: Zinc-Plated Steel
• Housing Color: Ivory
• Line Contacts: Brass Double Wipe .031 Thick
• Wiring Method: Side
• Number of Outlets: 2
• Contact Material: Brass
• Special Features: Indented Face
• Screw Terminal Torque: 14-18 in-lbs
• AC Horsepower Ratings At Rated Voltage: 1/2 HP
• RoHS Compliant: Yes
• Rated Voltage: 125V
• AWG Range: 14 - 10 AWG
• No. of Wires: 3
• No. of Poles: 2
• ECCN: EAR99
• UNSPSC: 39121406
