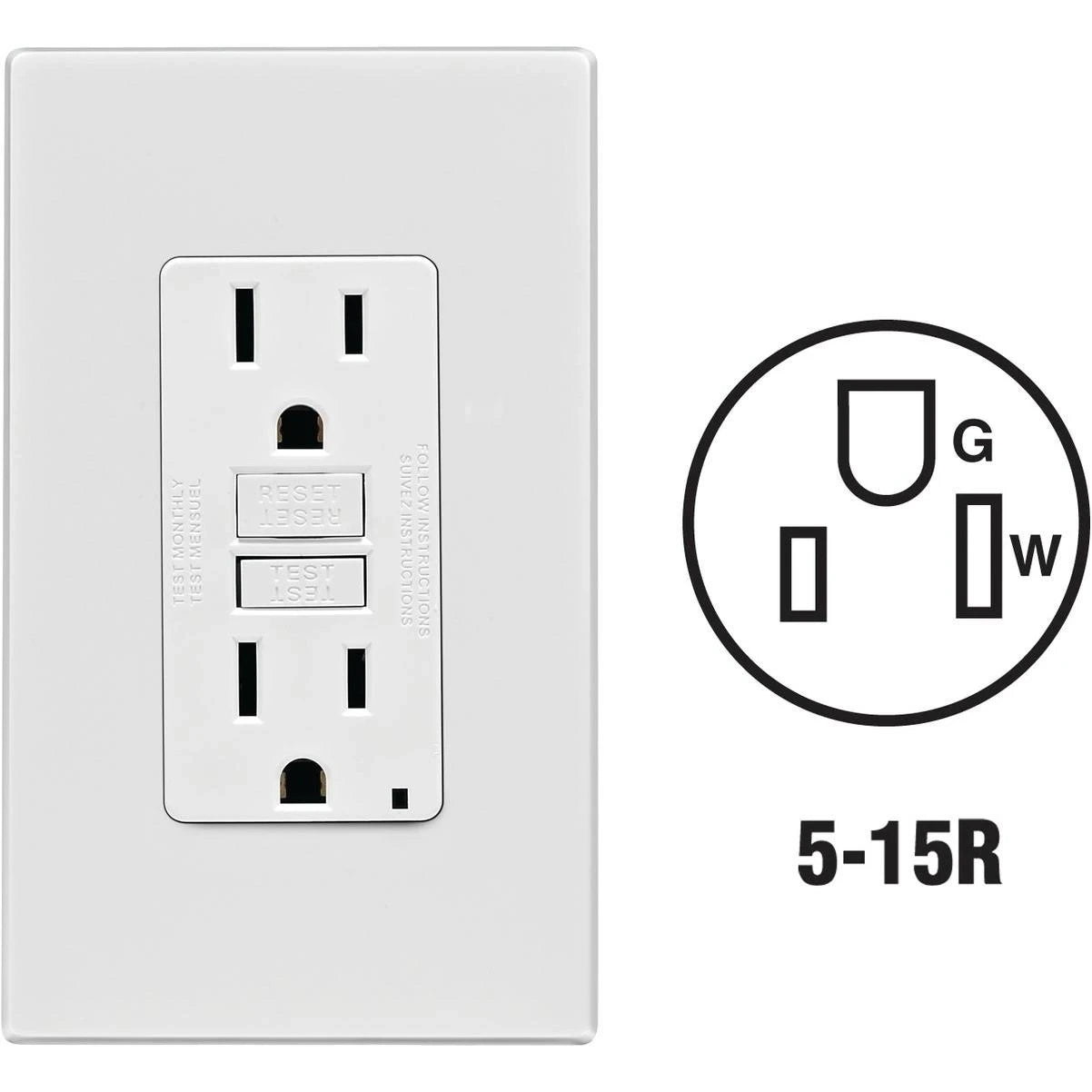

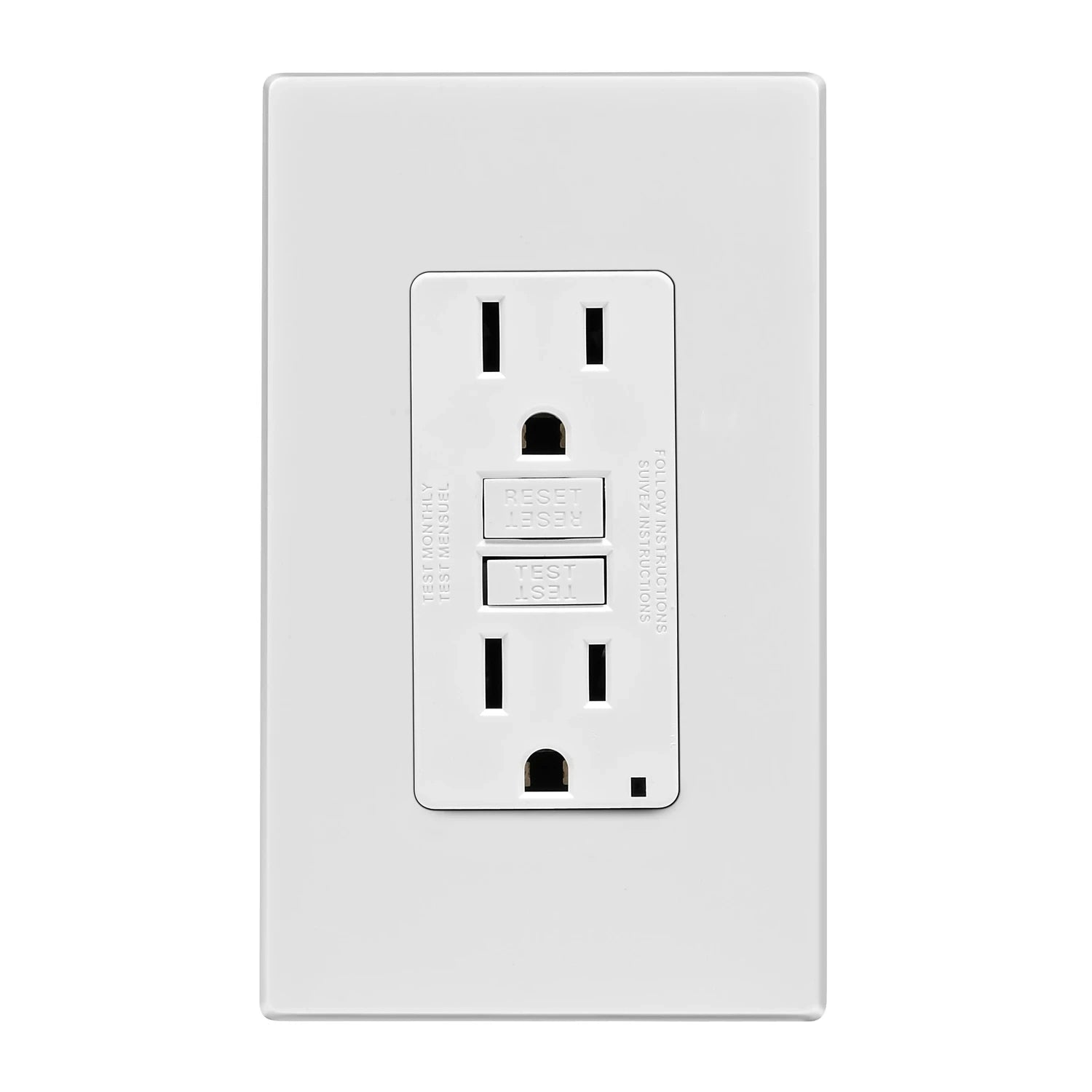

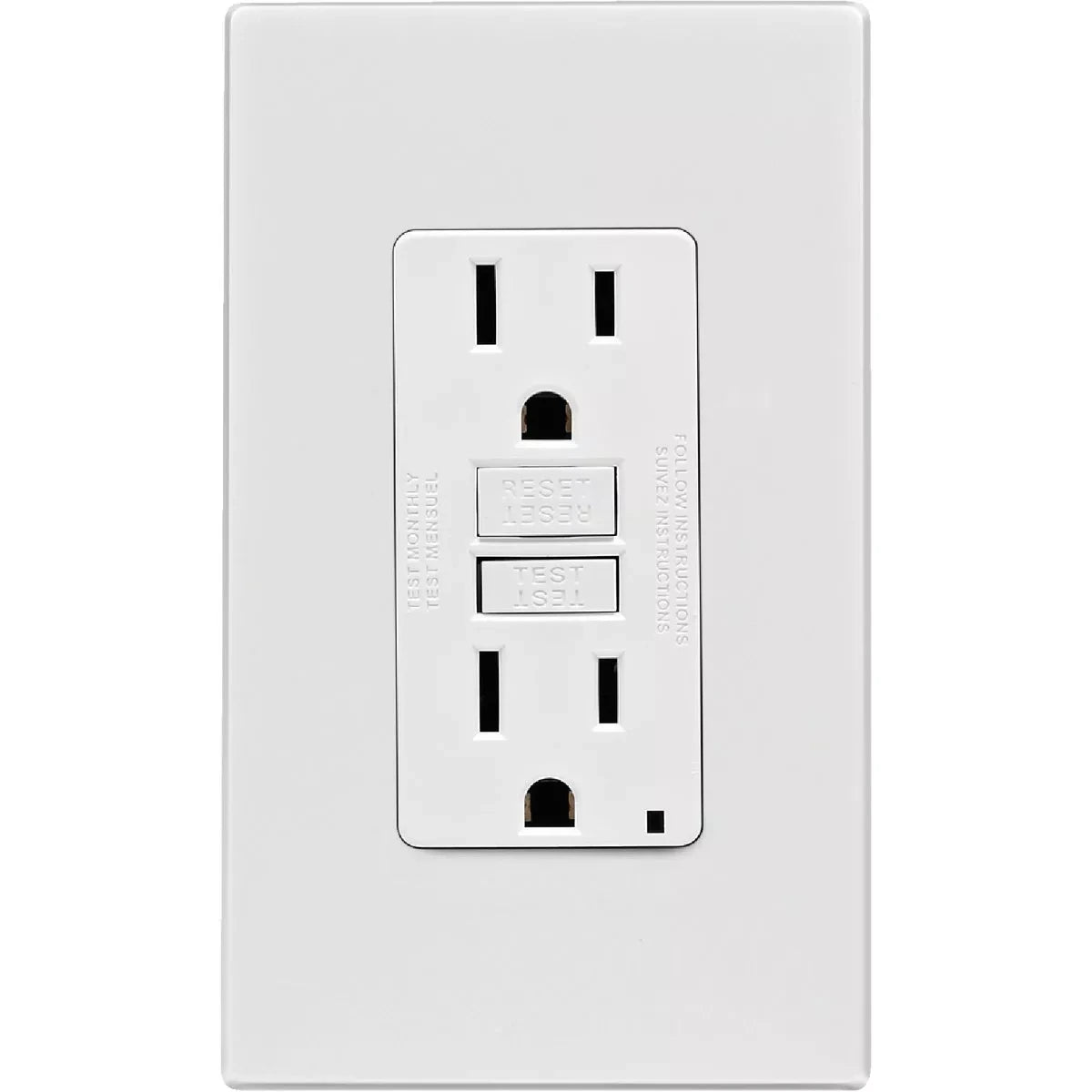

Leviton C52-GFNT1-0PW SmartlockPro self-test GFCI outlet 15A 125V (Screwless wallplate)

Brand: LEVITON
SKU: C52-GFNT1-0PW
Availability: In Stock
Ships in 3 - 4 Business Days
$35.35
$35.35
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Leviton C52-GFNT1-0PW is a SmartlockPro self-test GFCI outlet that provides 15A, 125V ground-fault protection for residential installations. The device performs automatic internal self-tests and includes a patented reset lockout, status indicator for power/protection and line/load reversal, and a slim profile for installation in shallow wall boxes. It supports back and side wiring with external back-wire clamps and offers 20A feed-through for downstream protection.

  • Automatic SmartlockPro self-test continuously verifies GFCI functionality and indicates status with indicator lights.
  • 15A, 125V NEMA 5-15R duplex receptacle with 20A feed-through; 2-pole, 3-wire termination supports back and side wiring.
  • Patented reset lockout prevents unsafe resets; UL and CSA listings and dielectric/temperature ratings per standards.

Product Highlights

15A/125V self-testing GFCI duplex receptacle, NEMA 5-15R, back and side wiring, screwless wallplate, UL/CSA certified

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: C52-GFNT1-0PW
  • Country of Origin: US
Technical Specifications
Brand
Leviton
Manufacturer Part Number
C52-GFNT1-0PW
Model Number
C52-GFNT1-0PW
Amperage
15 A (receptacle)
Feed-Through Rating
20 A at 125 V
Voltage
125 V
Receptacle
NEMA 5-15R (duplex)
Number of Poles
2
Number of Wires
3
Wiring/Termination
Back and side wiring with external back-wire clamps
Body Material
Polycarbonate
Strap Material
Galvanized steel
Self-Test
Automatic internal self-test (SmartlockPro)
Reset Lockout
Patented reset lockout prevents reset if wired incorrectly or unable to respond
Status Indicator
Indicator light for power/protection and line/load reversal
Mounting Type
Wall
Type
Duplex GFCI receptacle
Wire Size
14-10 AWG
Frequency
60 Hz
Dielectric Voltage
Withstands 1250 VAC per UL 943 and CSA-C22.2 No. 144.1-06
Temperature Rise
Maximum 30°C after 100 cycles overload at 150% rated current
NEMA Standards
NEMA WD6, NEMA WD1
Certifications
UL listed, CSA
Standards and Certifications
UL, Federal Specification, CSA
Compatibility
Decora compatible
Mounting Depth
1.125 in
Weight
0.36 lb
Accessories Included
Screwless wallplate
Grade
Residential
Type of Protection
Ground-fault circuit interrupter (GFCI)
UPC
078477714065
Country of Origin
US
