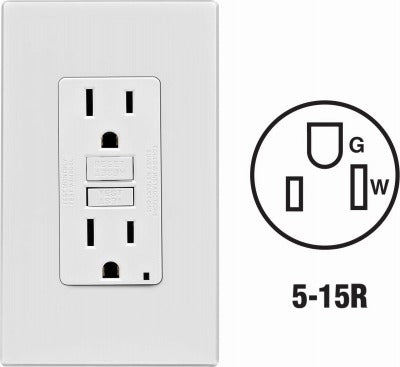

Leviton C52-GFNT1-0PW 15A Self-test Gfci Outlet Nema 5-15R White

Product Description

The LEVITON MFG CO C52-GFNT1-0PW is a 15-amp, residential-grade GFCI (ground fault circuit interrupter) outlet with an integrated self-test function. It operates on a 2-pole, 3-wire configuration and is rated NEMA 5-15R. The self-test feature automatically verifies that the ground fault protection circuit is functioning, reducing the need for manual testing. Brass double-wipe contacts and clamps ensure a reliable, low-resistance connection. A self-grounding clip simplifies installation in metal boxes where a separate ground wire to the device may not be available. This outlet ships in a 3-pack and includes a screwless wall plate. It is suited for installation by licensed electricians in residential applications.

This GFCI outlet is intended for residential-grade installations where NEC-required ground fault protection is needed. Typical locations include bathrooms, kitchens, garages, crawl spaces, unfinished basements, and outdoor receptacle circuits. The 20-amp feed-through capability allows the device to protect downstream outlets on the same circuit without requiring a 20-amp rated receptacle at each location. Back-wired and side-wired termination options give installers flexibility depending on box type and wiring method.

Key Features

• Self-test function automatically verifies GFCI protection is active
• 20-amp feed-through for downstream outlet protection on the same circuit
• Brass double-wipe contacts and clamps for reliable electrical connection
• Self-grounding clip for simplified installation in grounded metal boxes
• Back-wired and side-wired termination options for installation flexibility
• Screwless wall plate included; monochromatic button design
• Comes as a 3-pack (unit of measure: EA, package quantity: 3)

Compatibility

Designed as an OEM-style residential-grade GFCI receptacle replacement rated NEMA 5-15R, suitable for standard 15-amp branch circuits requiring ground fault protection per NEC requirements.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and all applicable local codes. De-energize the circuit at the breaker panel and verify the absence of voltage with a meter before beginning any wiring work. Follow the line and load terminal labeling on the device carefully when wiring for feed-through protection. Do not exceed the device's rated voltage or amperage when specifying for a given circuit.
