Product Description

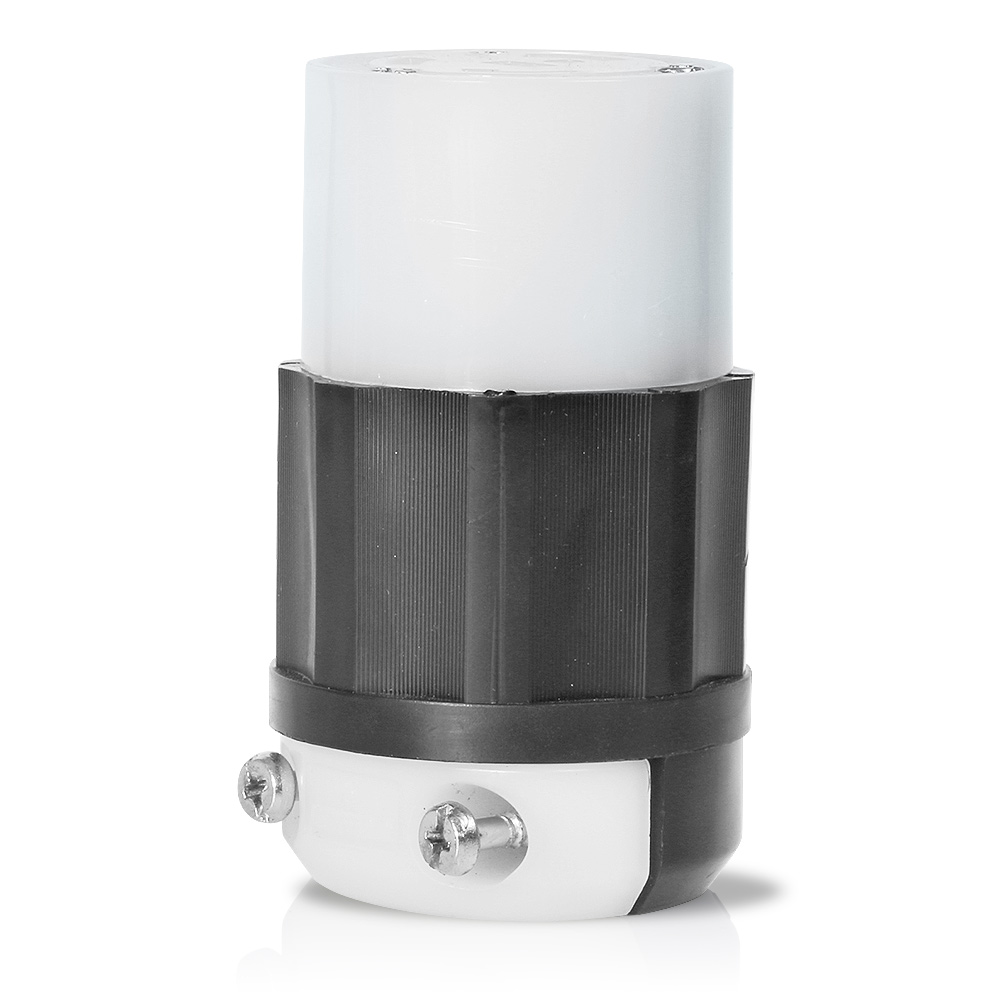

The Leviton C2623 is a locking connector rated for thirty amps and two hundred fifty volts. This industrial-grade locking connector features a NEMA L6-30R configuration with two poles and three wires. It is designed for grounding and suitable for various industrial applications.
- Durable nylon body withstands severe impacts and chemicals.
- Compatible with cords measuring between zero point three eight five inches to zero point nine three inches in diameter.
- Temperature rating between negative forty to sixty degrees Celsius.
Product Highlights
Leviton C2623 connectors provide reliable performance for demanding environments. They are ideal for powering generators, compressors, and transfer switches.
Product Information
Standard Information
-
Manufacturer: Leviton
-
Catalog Number: C2623
Technical Specifications
-
Amperage Rating: 30 A
-
Voltage Rating: 250 VAC
-
NEMA Rating: L6-30R
-
Number of Poles: 2
-
Number of Wires: 3
-
Material: Nylon
-
Dimensions: 28 inches diameter x 3.53 inches length
-
Cord Diameter: 0.385 to 0.93 inches
