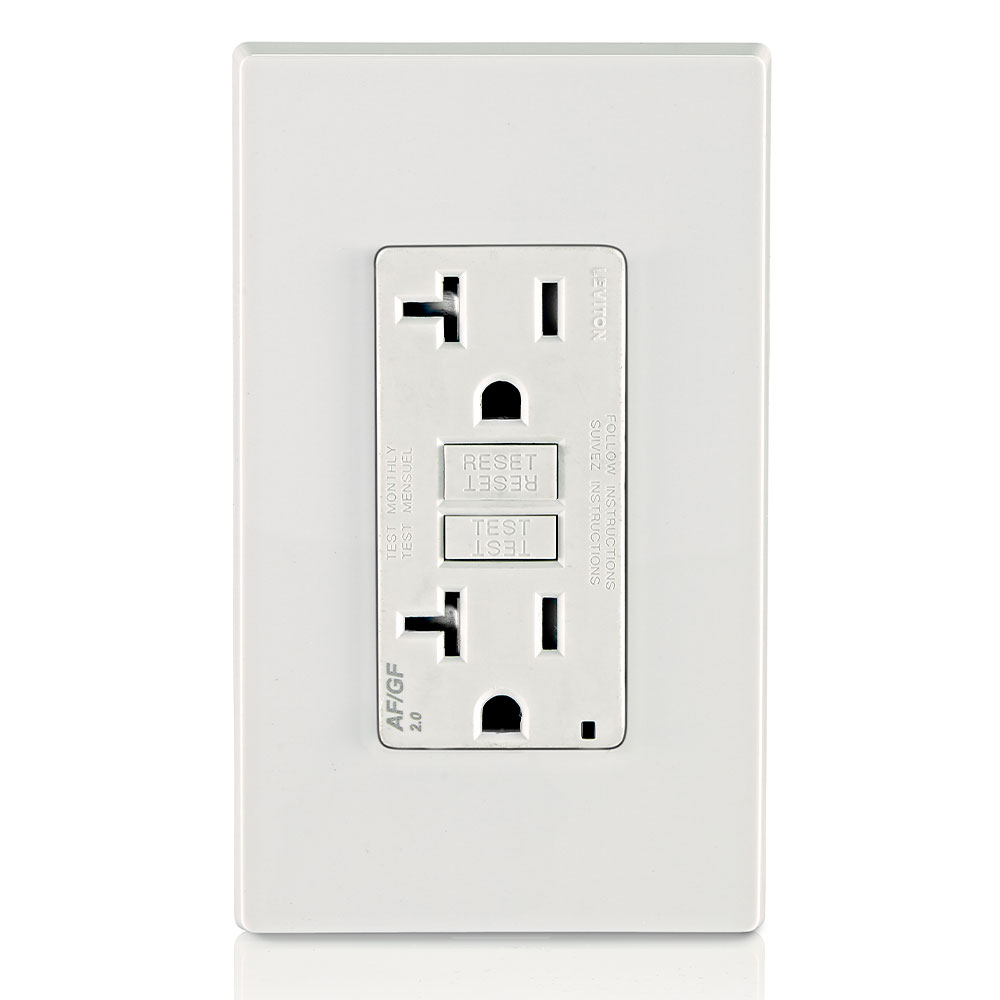

Leviton AGTR2-W SmartlockPro 20A AFCI/GFCI Receptacle 125V Dual Function NEMA 5-20R

Product Description

The Leviton AGTR2-W is a smart dual function AFCI and GFCI receptacle rated for twenty amps and one hundred twenty-five volts. This device helps protect against electrical fires from arc faults and electrical shocks due to ground faults. Designed for residential kitchens and laundry areas, the receptacle meets NEC requirements for updated safety standards.

• Dual function: AFCI and GFCI in one device
• Self-test feature ensures proper operation
• Compatible with Decora devices for multi-gang installations

Product Highlights

This receptacle features a patented lockout action for safety, automatically testing the GFCI circuit upon initial power-up, providing immediate feedback on functionality through a status indicator light. Enhanced surge protection and noise immunity further promote reliability in residential use.

Product Information

Standard Information

• Brand: Leviton
• Model Number: AGTR2-W

Technical Specifications

• Amperage: 20 A
• Voltage Rating: 125 VAC
• Number of Wires: 3
• Number of Poles: 2
• NEMA Rating: 5-20R
• Temperature Rating: -35 degrees Celsius to 66 degrees Celsius
• Material: Polycarbonate
• Dimensions: 4.21 inches H x 1.68 inches W x 1.38 inches D
• Grounding: Self-grounding
• Warranty: 2 years
