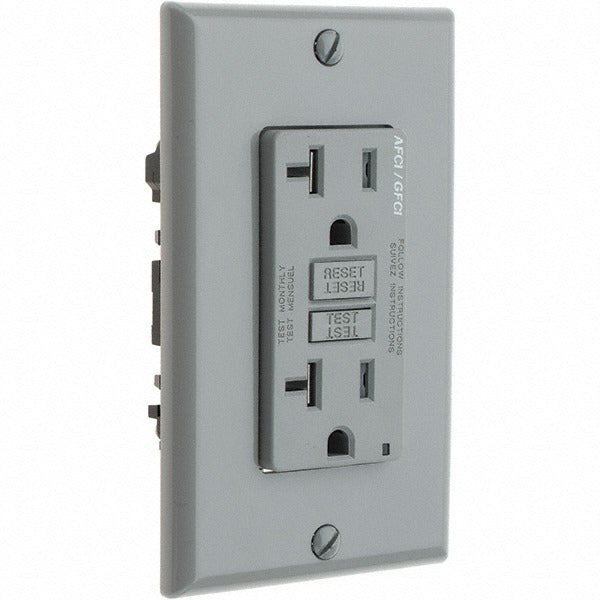

Leviton AGTR2-GY Gfci Receptacle 20A 5-20R Commercial

Product Description

The LEVITON AGTR2-GY is a commercial-grade GFCI receptacle rated for 20-amp service with a NEMA 5-20R configuration. It provides ground-fault circuit interrupter protection by continuously monitoring current flow and tripping within milliseconds when a fault is detected. The unit features a manual reset mechanism and accepts wiring from both the back and side terminals, giving installers flexibility when working in single-gang boxes or multi-device applications. Licensed electricians install this receptacle in commercial environments where the NEC mandates GFCI protection, including kitchens, bathrooms, break rooms, and exterior locations.

The AGTR2-GY is intended for single-phase, 3-wire circuits in commercial buildings, light industrial spaces, and institutional facilities. It suits new construction and retrofit work wherever a 20-amp GFCI outlet is required by code. The 5-20R blade configuration accepts standard 5-15 and 5-20 plugs, making it practical for general-purpose commercial circuits.

Key Features

• NEMA 5-20R configuration accepts both 5-15 and 5-20 plug types
• Manual reset for positive, deliberate restoration after a fault trip
• Back and side wiring terminals for flexible installation in commercial boxes
• Single-phase, 2-pole, 3-wire design suits standard commercial branch circuits
• CSA Certified to meet North American safety standards
• Commercial grade construction for durability in high-use environments

Compatibility

Designed as an OEM-style replacement or new-install GFCI receptacle for single-phase, 3-wire, 20-amp commercial branch circuits requiring NEMA 5-20R outlet protection.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the branch circuit at the breaker panel and verify the circuit is dead with a voltage tester before handling any wiring. Both back-wire and side-screw terminals are available, but do not use both connection methods simultaneously on the same conductor. Follow the line and load terminal labeling carefully when wiring downstream devices through the GFCI.
