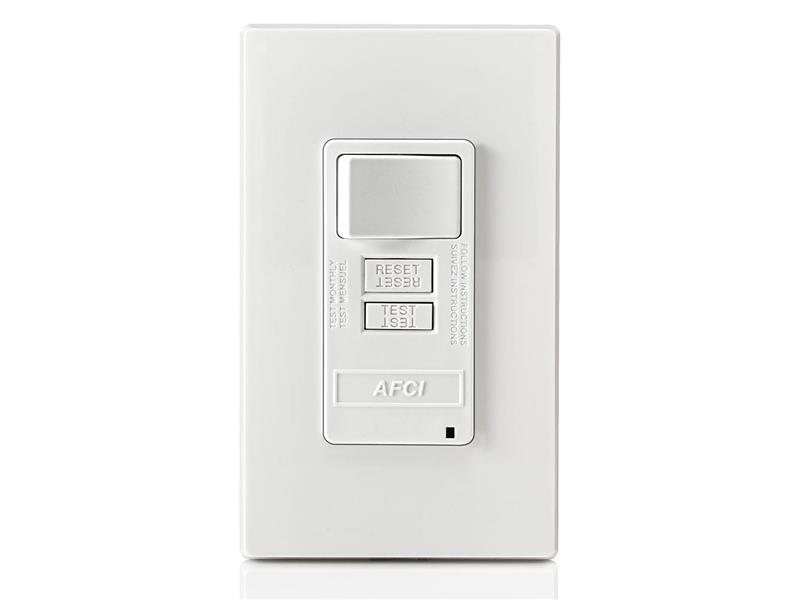

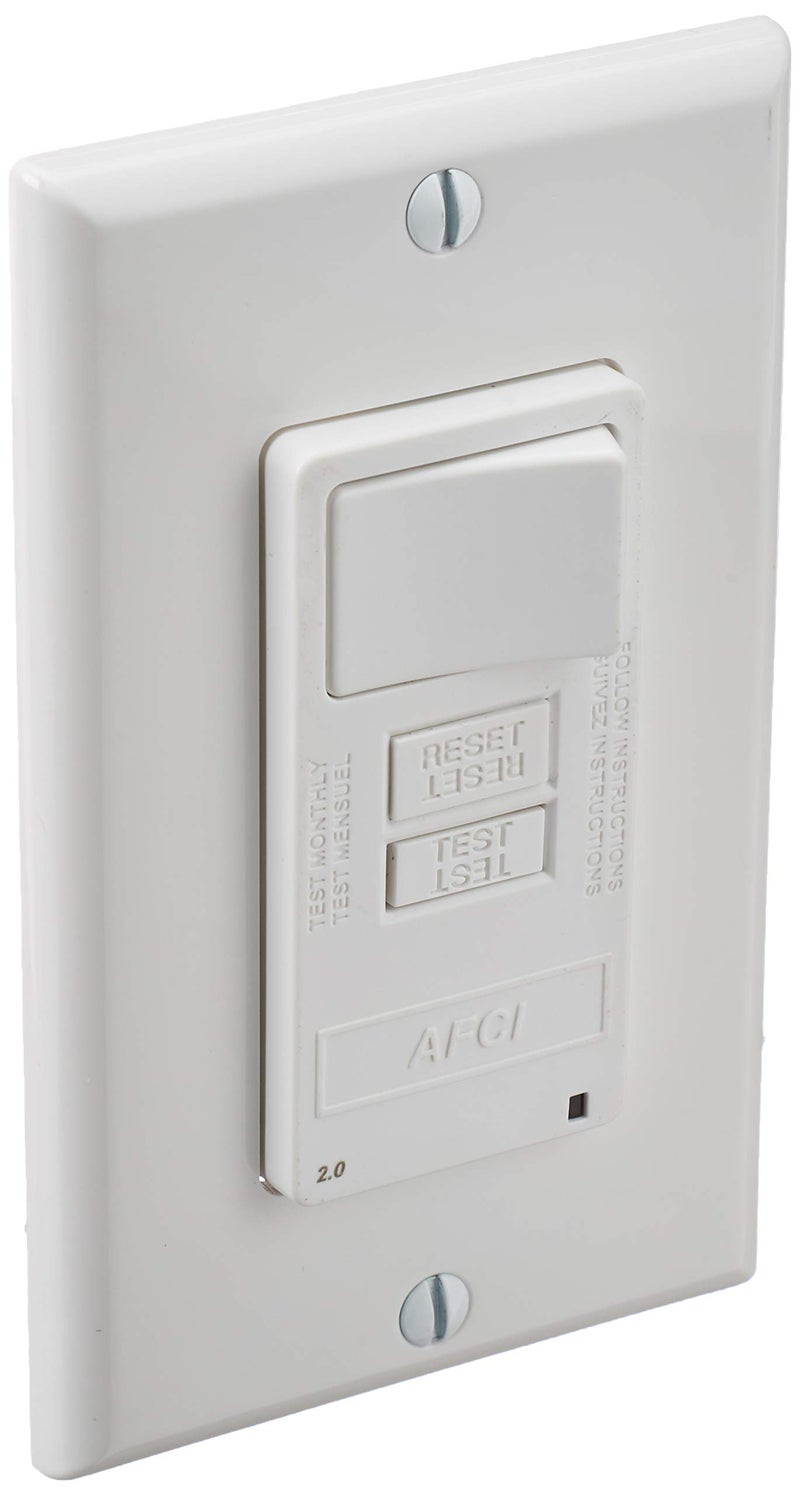

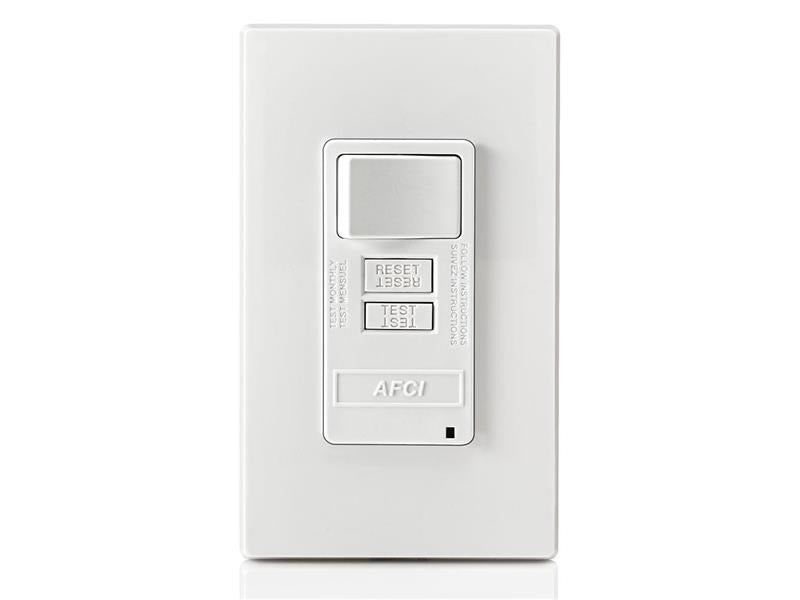

Leviton AFSW1W AFCI/Switch Combo with LED Indicator Light 15 Amp

Product Description

The LEVITON AFSW1W SmartlockPro Outlet Branch Circuit (OBC) Combination AFCI/Switch offers technology to help protect against electrical fires and the convenience of a single pole switch. Designed to detect arc-faults resulting from damage in branch circuit wiring and extensions, the OBC AFCI responds by interrupting power. It is required by the National Electrical Code in many areas of the home.

• Combination AFCI and single pole switch for new circuits or modifications to existing circuits where a switch is the first outlet in a branch circuit
• Use of TEST and RESET buttons is similar to traditional GFCI receptacles of which consumers have become familiar with.
• Automatically tests the AFCI every time the RESET button is depressed; the AFCI will not reset if the AFCI circuit is not functioning properly

Product Highlights

The Leviton AFCI/Switch combination provides both AFCI protection and a single pole switch to control lights. It identifies dangerous arcing conditions and interrupts power to prevent electrical fires.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: AFSW1W
• Country of Origin: China

Technical Specifications

• AC Horsepower Ratings At Rated Voltage: 1 HP
• Dielectric Voltage: Withstands 1250VAC per UL 1699A
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -35C to +66C
• Body Material: Polycarbonate
• Clamps: Brass
• Face Material: Thermoplastic
• Grounding Screw: Plated Steel
• Terminal Screws: Plated Steel
• Yoke: Zinc-Plated Steel
• Product ID: Ratings are permenantly marked on device
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Grounding: Self-Grounding
• Neutral: Required
• Pole: 2
• Screw Terminal Torque: 14-18 in-lbs
• Series: AFSW1
• Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
• Strap Material: Galvanized Steel
• Termination: Back & Side
• Voltage: 125 VAC
• Wire: 3
• Type: Combination Switch
• CSA Technical Information Letter No. M-02A: Yes
• NOM: 003 - ANCE
• Switch: UL 20, CSA-C22.2 No. 111
• UL1699.A: File E342815
• Port Type: Light Switch
• Control Style: Switch
• Operation Method: Outlet
• Switch Style: Combination
• Outlet Style: Combination
• Number of Ports: 1
• Material: Polycarbonate
• Model: AFSW1-W
• Number of Poles: 1
• Resistance Properties: Tamper Resistant
• Part #: AFSW1-W
• Category: Wall Switch
