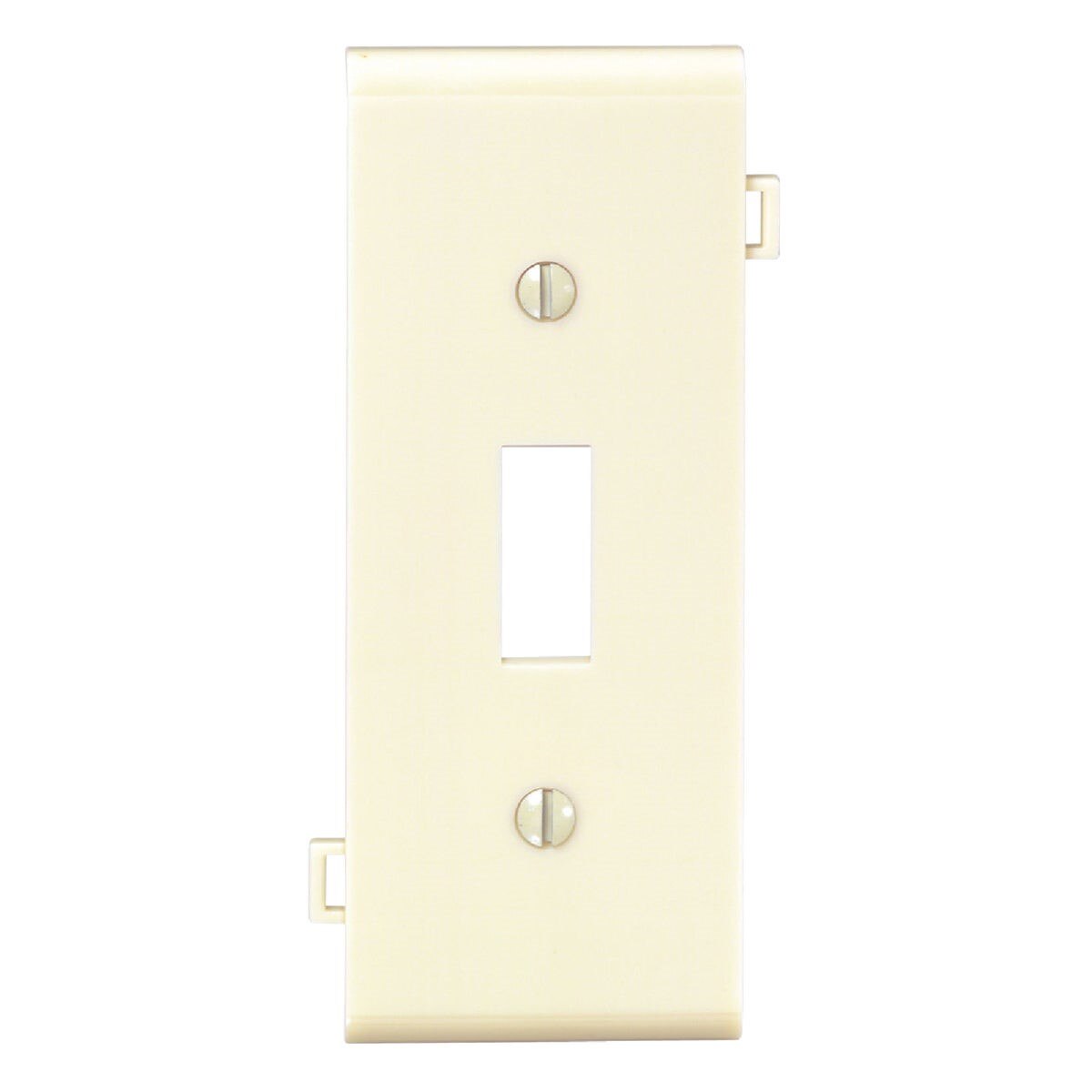

Leviton 924-0PSC1-00I Toggle Switch Wall Plate Center Panel

Product Description

The LEVITON 924-0PSC1-00I is a 1-gang plastic center panel designed for use in Leviton's sectional wall plate system. It accepts a single toggle switch cutout and serves as a middle section within a modular, multi-gang wall plate assembly. Electricians use these center panels to build out custom wall plate configurations where standard single- or multi-gang plates won't cover the required number of devices. The panel is finished in ivory and is UL listed for safe installation in residential and light commercial wiring applications.

This center panel is intended for use within a sectional wall plate assembly requiring two or more panels. It fits standard electrical box openings and can be combined with compatible end panels and other center panels to create a continuous wall plate spanning any required number of gangs. Typical applications include multi-switch lighting circuits, combination outlet and switch configurations, and retrofit installations where a single preformed multi-gang plate is not practical.

Key Features

• Center panel for Leviton's sectional wall plate system — pairs with end panels to build custom multi-gang configurations
• Accepts a single toggle switch device opening
• Fits standard electrical box openings without modification
• Ivory finish for broad compatibility with standard residential and commercial devices
• UL listed for compliance with standard electrical installation requirements
• Each panel is individually packaged

Compatibility

Designed as a center panel component for Leviton's sectional wall plate program. Must be assembled with a minimum of two panels total, including at least one end panel on each side, to form a complete wall plate. All panels in the system fit standard device box openings.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit at the breaker before removing any existing wall plate or working near wiring. Secure the assembled sectional plate to the device or wall box only after all wiring connections are completed and verified. Do not overtighten mounting screws, as plastic panels can crack under excess torque.

Technical Specifications

• Gang Count: 1-Gang
• Panel Position: Center
• Device Type: Toggle Switch
• Material: Plastic
• Color: Ivory
• Weight: 0.05 pounds
• Listing: UL Listed
• Unit of Measure: Each

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 924-0PSC1-00I
