Product Description

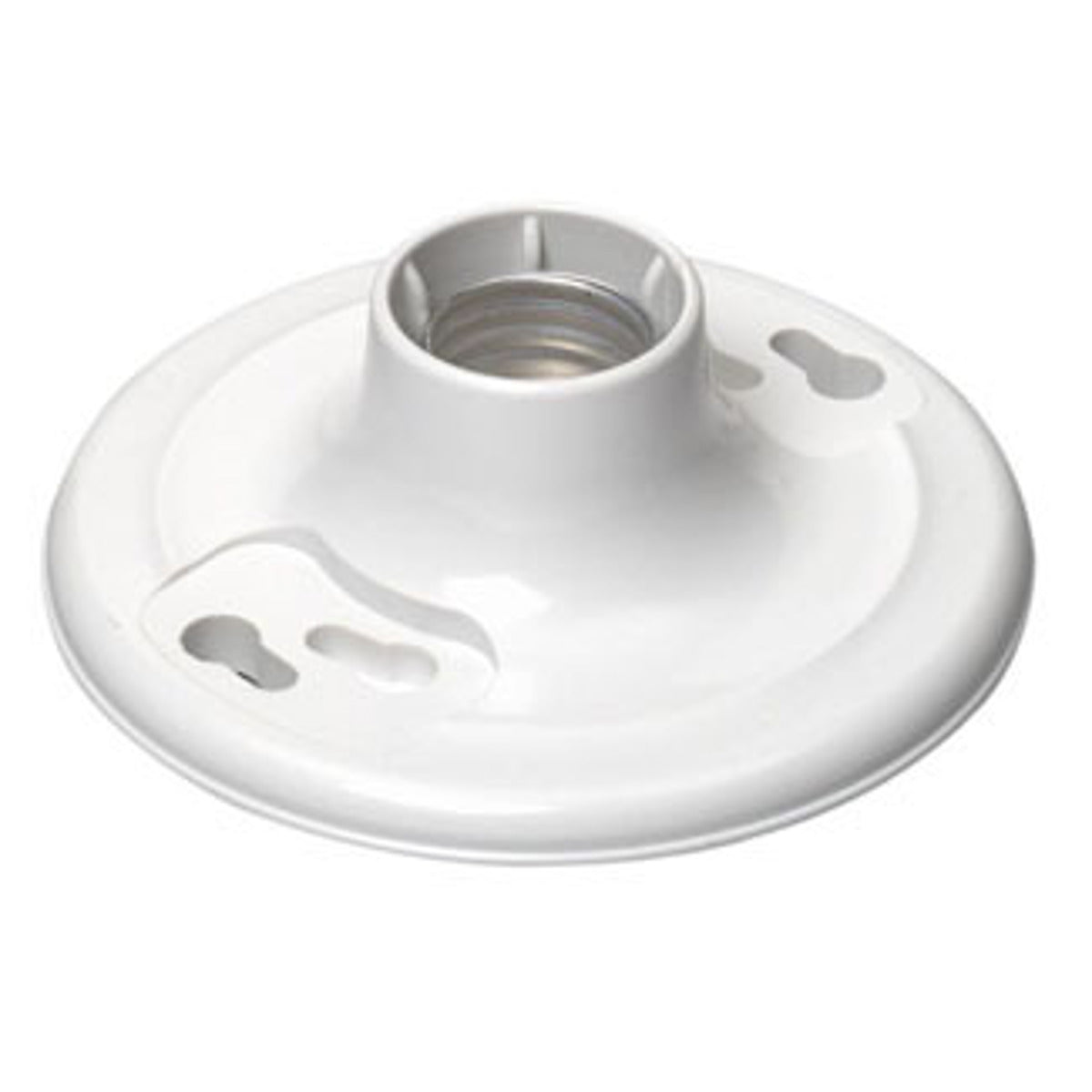

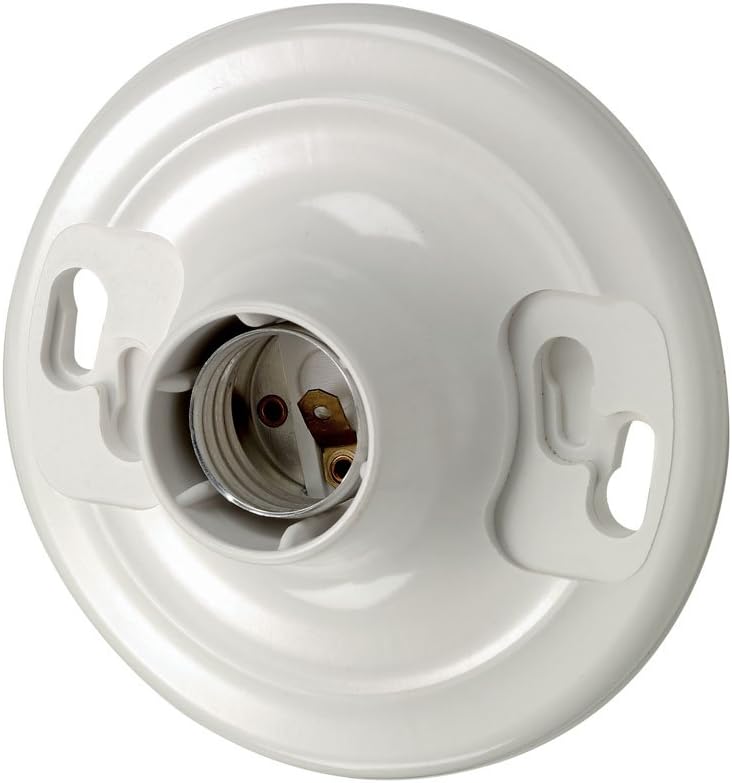

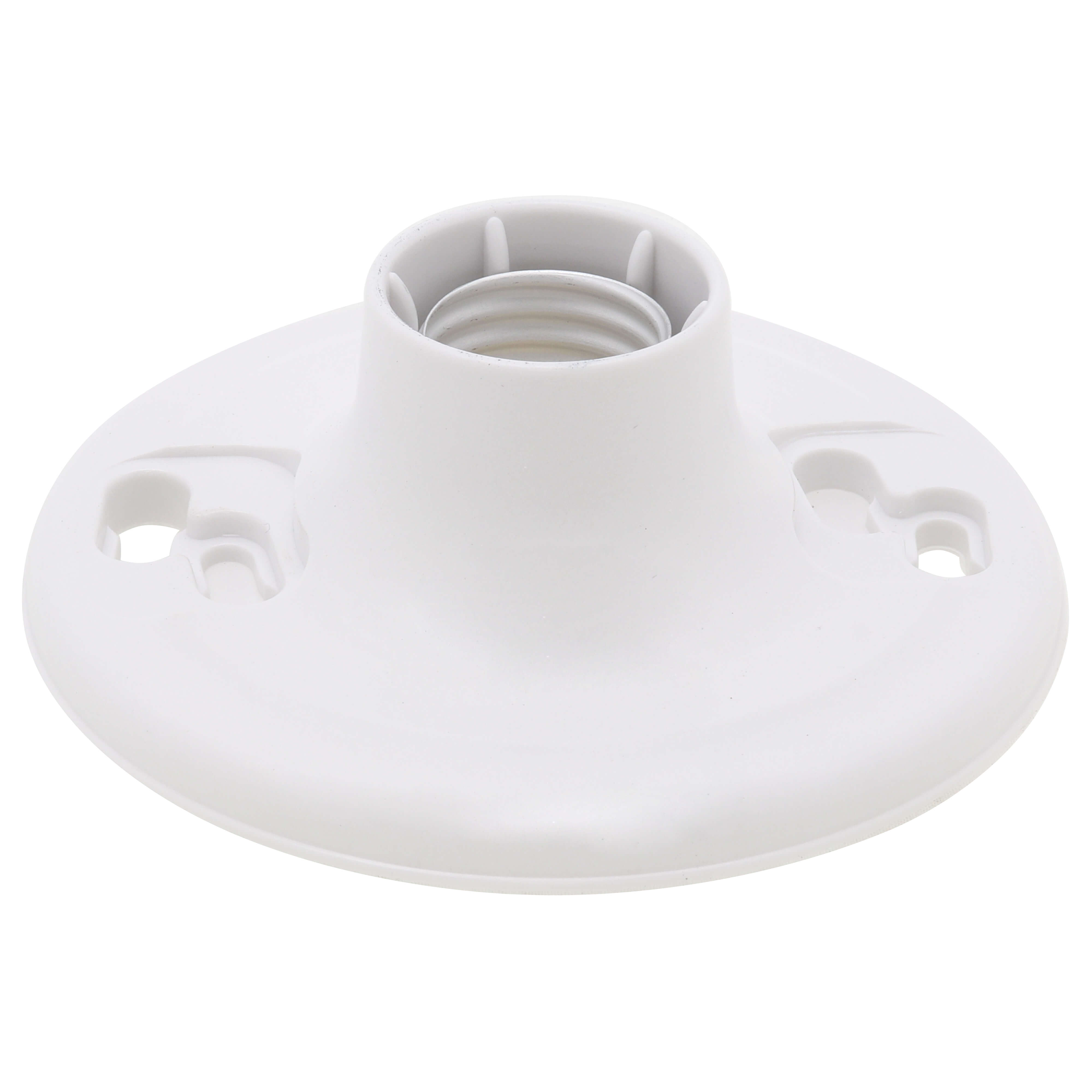

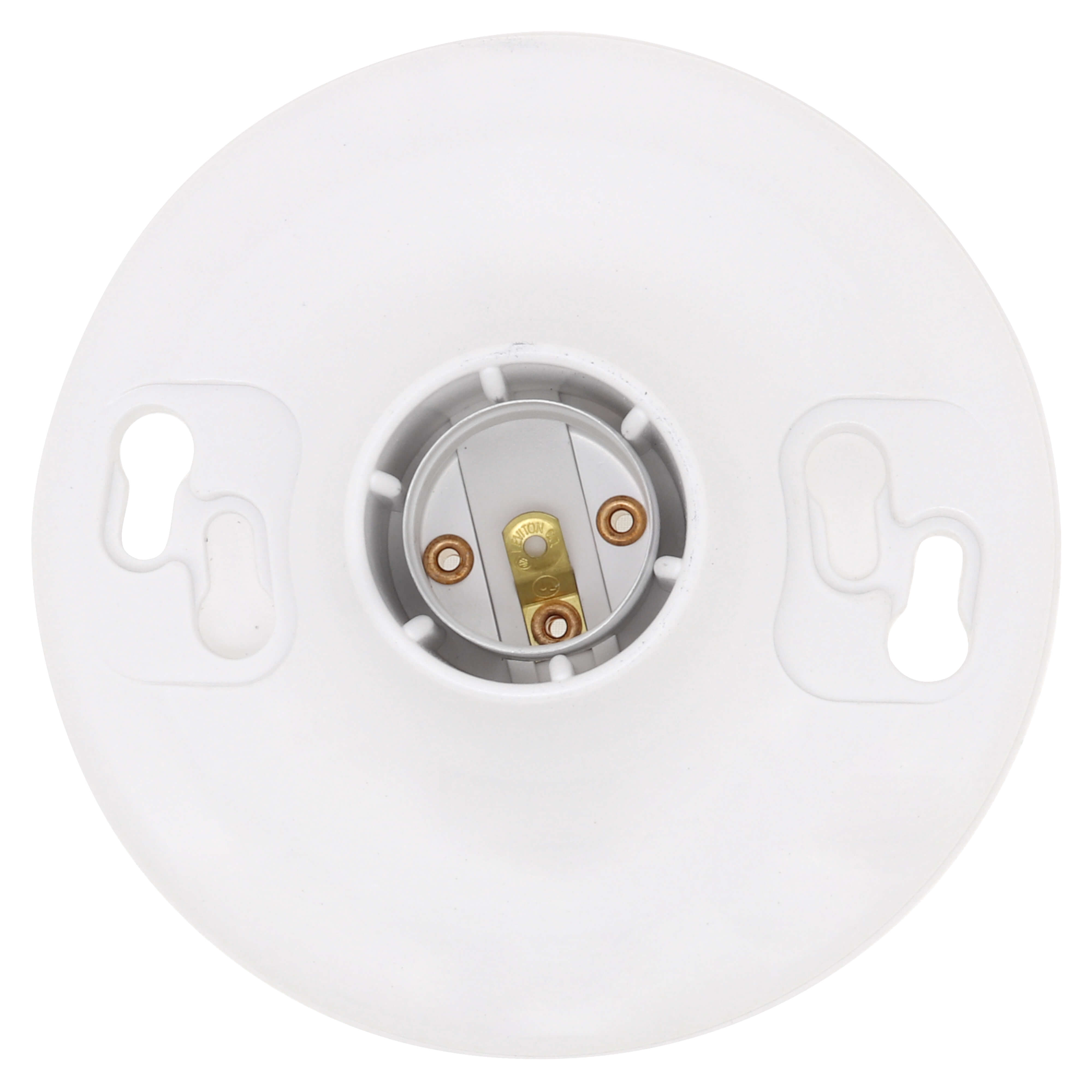

The Leviton 8829-CW1 lampholder is a 1-circuit, 1-piece keyless lampholder. This lampholder is designed for incandescent lamps with a medium base. It supports a lamp wattage of 660W and a voltage rating of 600 VAC. It features a screw terminal and twist-lock mounting for easy installation in commercial applications.
- Single circuit lampholder
- Fits 3-1/4 in or 4 in outlet box mount
- Twist-lock mounting type
Product Highlights
This keyless lampholder is suitable for commercial applications and is UL and CSA certified. It features a urea body and aluminum screw shell.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 8829-CW1
-
Country of Origin: China
Technical Specifications
-
Wattage: 660W
-
Material: Aluminum Oxide
-
Base Type: Medium
-
Specification Met: CSA, UL
-
Application: Commercial Applications
-
Connection Type: Top Wired
-
Lamp Base Type: Medium
-
Lamp Type: Medium
-
Lamp Wattage: 660 W
-
Manufacturer Part Number: 8829-CW1
-
Mounting Type: Twist-Lock
-
Standards/Approvals: UL File No. E5833|E3810|CSA File No. LR5863
-
Terminal Type: Screw
-
Type: 1-Circuit 1-Piece Keyless
-
Voltage Rating: 600 VAC
-
Manufacturer Item Status: Active
-
Manufacturer Name: Leviton
-
Brand Name: Leviton
-
UPC: 078477103166
-
GTIN: 00078477103166
-
Alternative Part Number: 7341842
-
Country Of Origin: CN
-
IDEA Index ID: 7341842
-
Lamp Wattage UOM: W
-
Voltage Rating UOM: VAC
-
Wiring Access: Top Wired
-
Max. Lamp Wattage: 660W
-
Body Material: White Urea
-
Construction: One-Piece
-
Socket Shell Material: Aluminum
-
Operator Type: Keyless
-
Circuit: Single Circuit
-
Sequence: ON-OFF
-

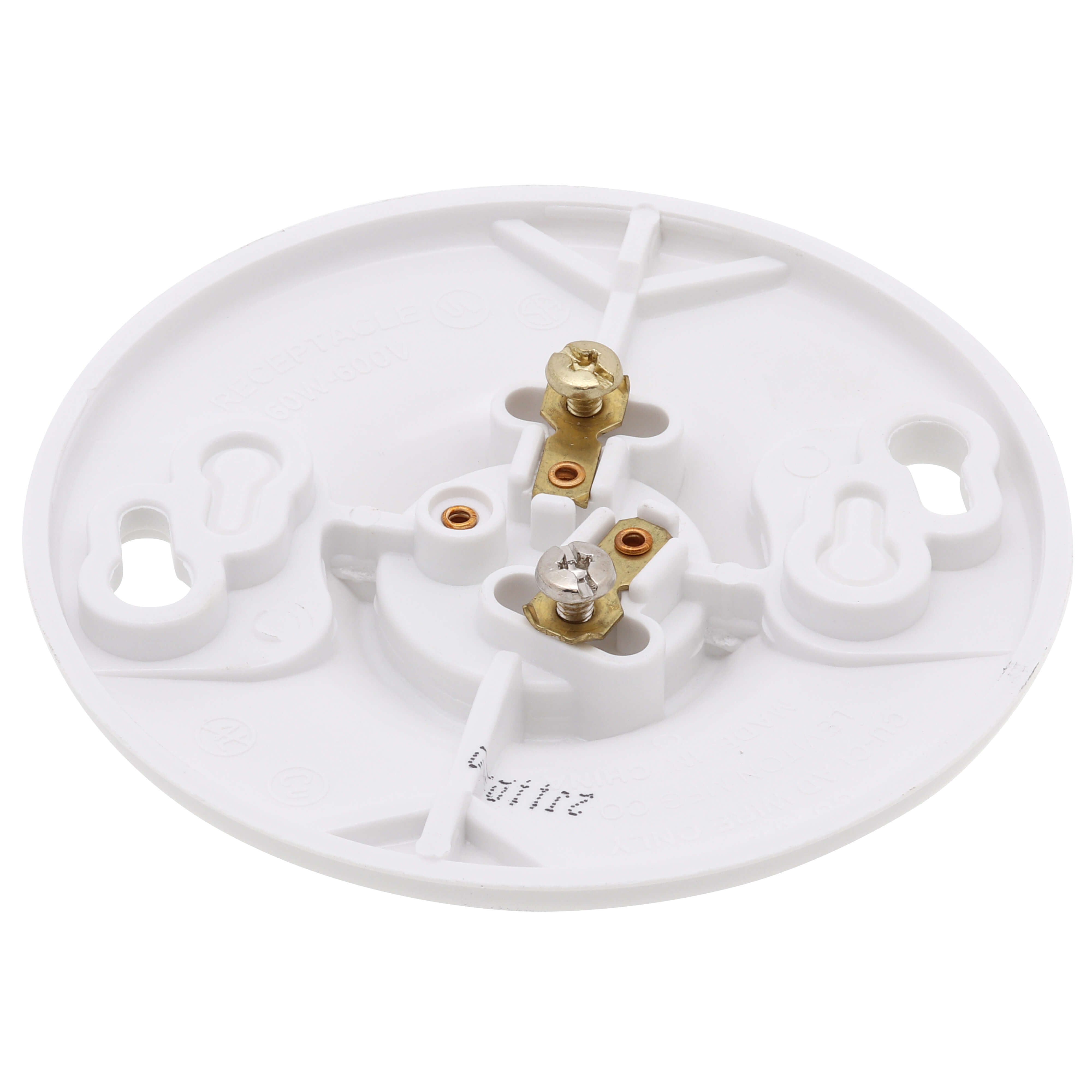

Termination: 2 Terminal Screws
-
Fits Outlet Box Size: 3-1/4 or 4 Inch
-
Standards and Certifications: UL/CSA
-
Lampholder Base: Medium (E26) Base
-
Lampholder Watts: 660W
-
Keyed: Keyless
-
Locking Type: Twist-Lock
-
Mounting: Outlet Box
-
Wiring: 2 Screw, Top Wired
-
UNSPSC: 39111803
-
Energy Star Flag: No
-
Terminal Connection: 2 Terminal Screw, Top Wired
-
Item Name: Incandescent Lampholder
-
Bulb Base: Medium
-
Bulb Base Group: Screw-In
-
Standards: UL E3810 Listed, CSA LR1863 Certified
-
Maximum Load Capacity: 660 Watt
-
Dimmable: No
-
Model / MPN: 8829-CW1
-
MPN: 8829-CW1
-
Product Group: Home Improvement
-
Product Type: LIGHT_BULB_SOCKET
-
Size: pack of 1
-
Number of Items: 1.0
-
Shell Material: Aluminum
-
Torque Range: 14 – 18 in.-lbs
-
Number in Pack: 1
-
Custom Bundle: Yes
-
Lighting Technology: Compact Fluorescent Lamp
