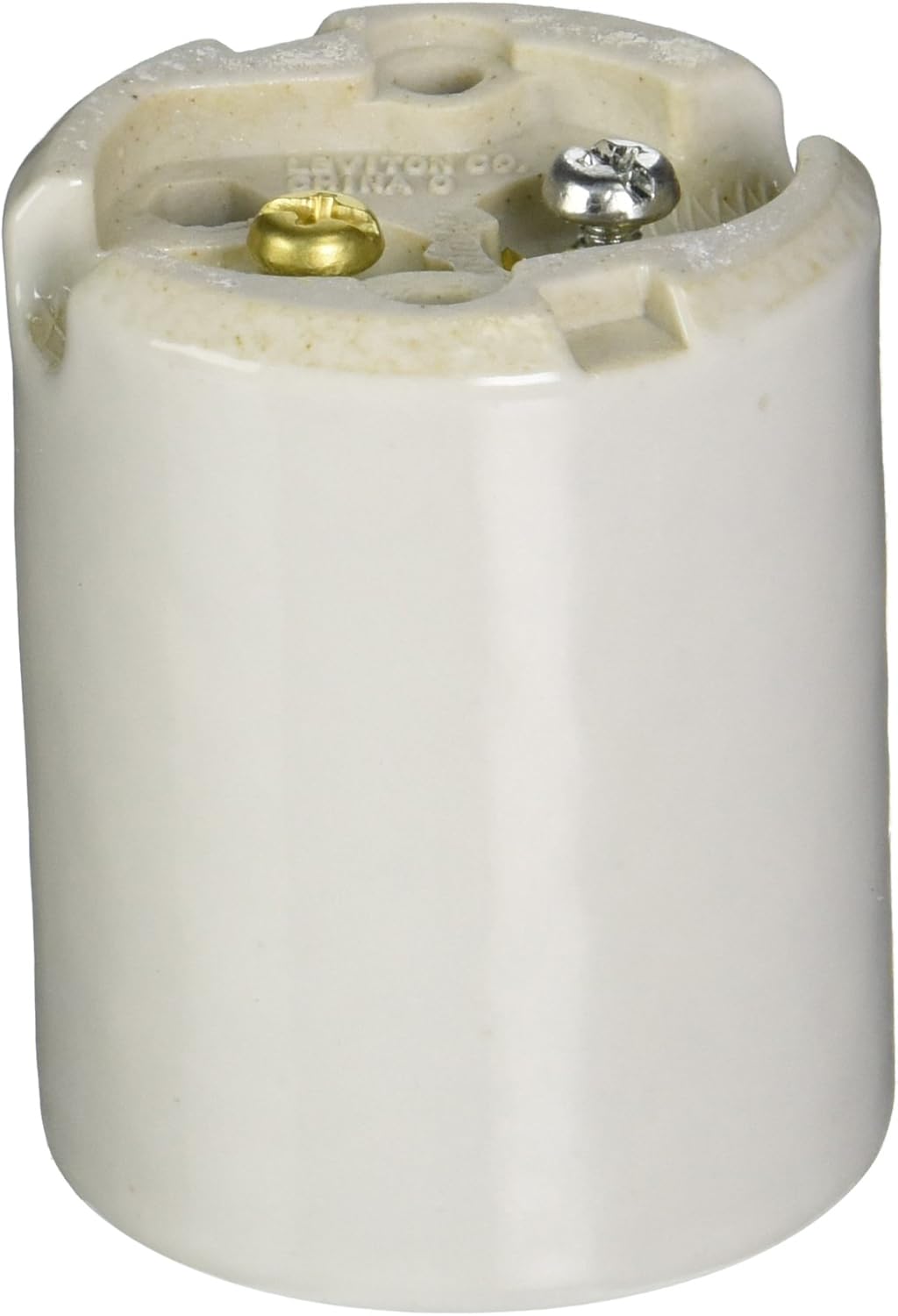

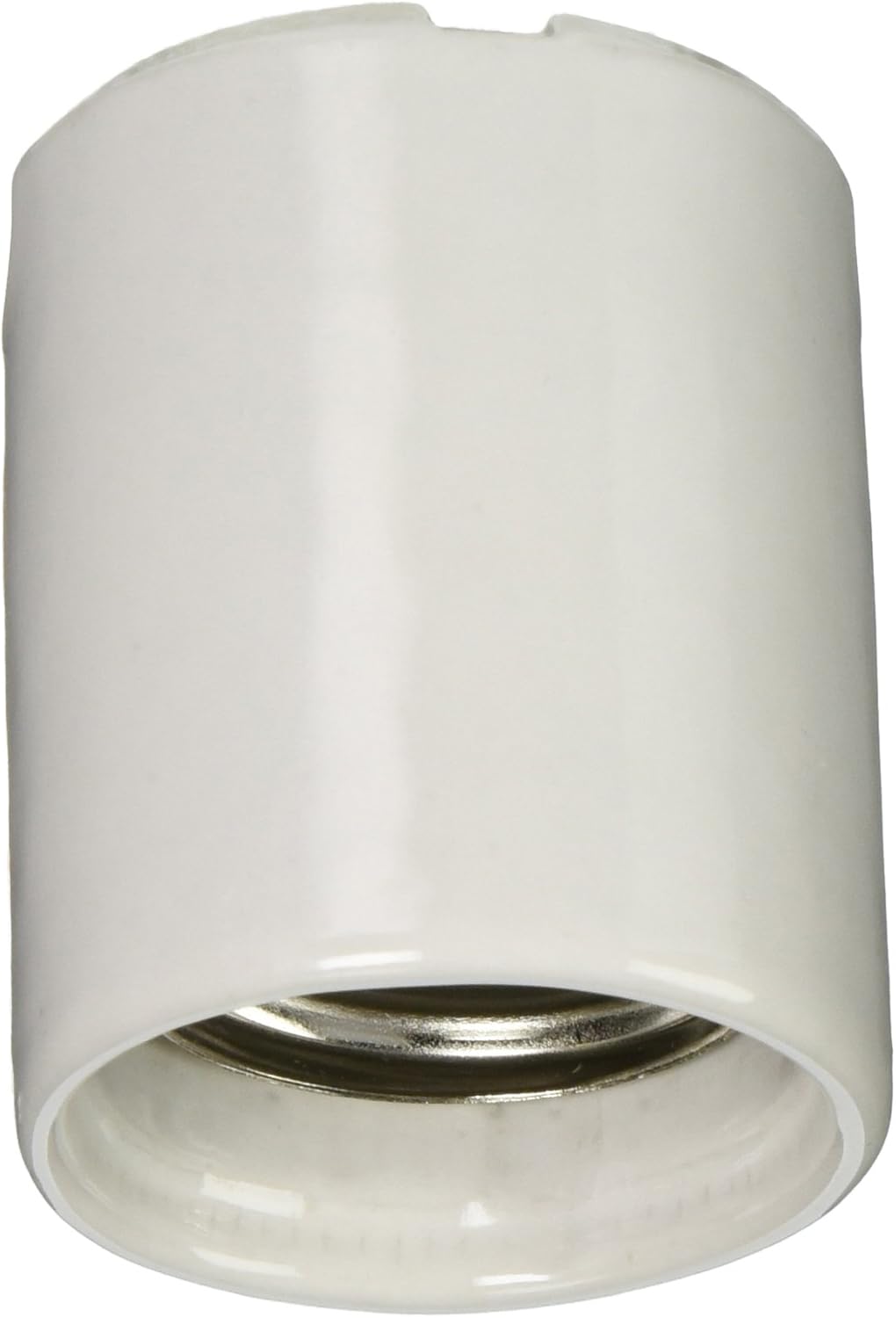

Leviton 8694 Wh Gz Porc Lamph Kless Mogul 1500W600V

Product Description

The Leviton 8694 WH GZ PORC LAMPH KLESS is a mogul lampholder with a 1500W maximum load capacity and 600V voltage rating. This keyless, one-piece lampholder is designed for incandescent lamps and features 2-way switching. It is suitable for commercial applications and has a glazed porcelain body.

• 2-way switching
• Nickel plated copper alloy screw shell
• Stainless steel contact

Product Highlights

Keyless, one-piece construction with back wired access. Ideal for commercial use with mogul base incandescent lamps.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 8694
• Country of Origin: China

Technical Specifications

• Material: Porcelain
• Power Source: Direct-Wire
• Type of Bulb: Incandescent
• Mounting Type: Wall Mount
• Special Features: 2-way switching
• Specification Met: UL
• Application: Commercial Applications
• Connection Type: Screw
• Finish: Glazed
• Lamp Base Type: Mogul
• Lamp Wattage: 1500 W
• Manufacturer Part Number: 8694
• Standards/Approvals: UL File No. E13402|CSA File No. LR1863|NOM 057|Cat. No 8751 Complies with NFPA 70-2005
• Voltage Rating: 600 VAC
• Terminal Connection: Back Wired, 2 Terminal Screw
• Item Name: Incandescent Lampholder
• Bulb Base: Mogul
• Brand Name: Leviton
• Bulb Base Group: Screw-In
• Standards: UL E13402, CSA LR1863
• Mounting: (2) #8-32 Locknut
• Maximum Load Capacity: 1500 Watt
• Dimmable: No
• Number in Pack: 1
• Lighting Technology: Incandescent
• Current Type: AC
• Connectors: Screw
• Power: 1500W
• Installation Area: Indoor
• MPN: 8694-QN
• Device Type: Light Socket
• Lampholder Type: Keyless
• Light Type: Incandescent
• Construction: One-Piece
