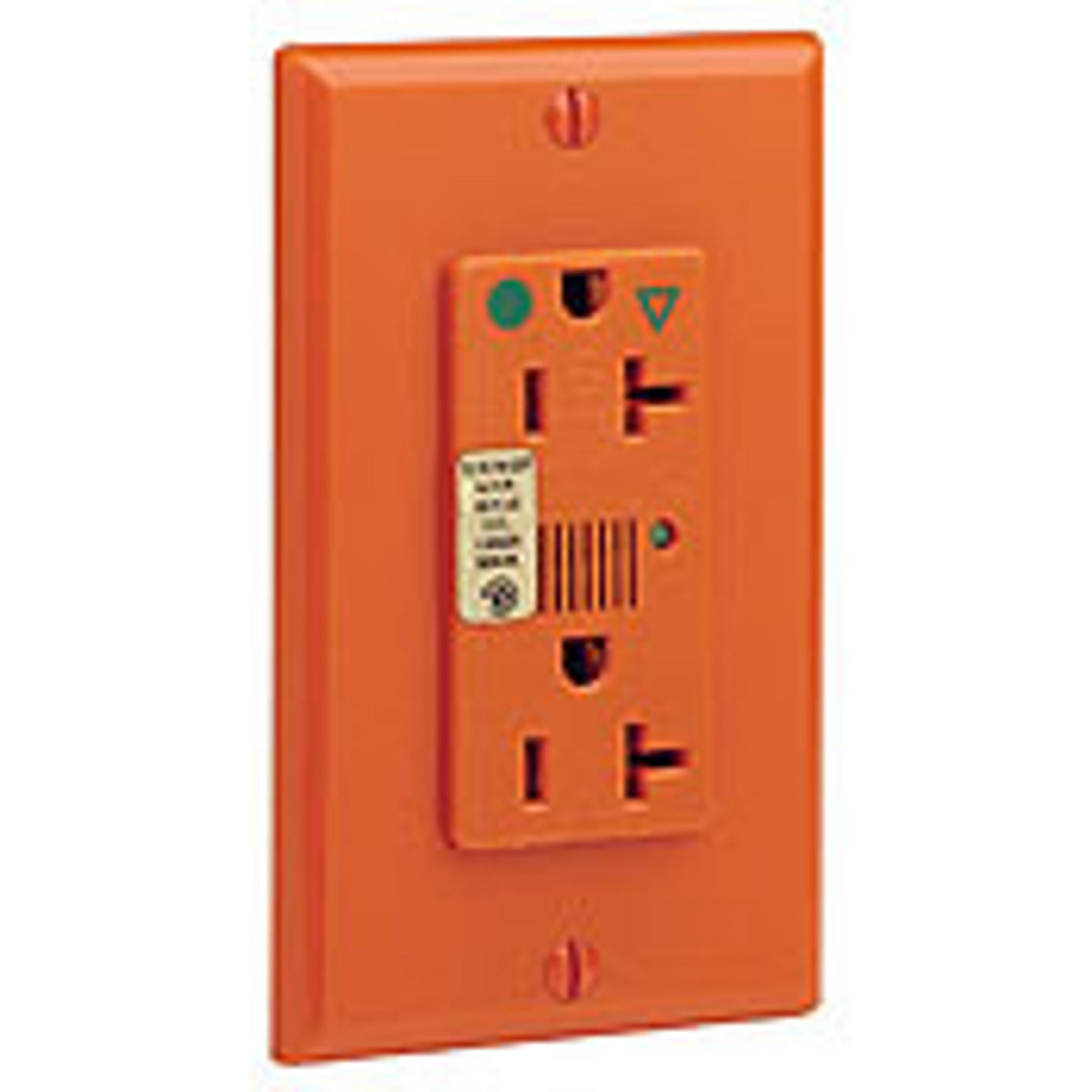

Leviton 8380-IGG surge protective receptacle 125VAC 20A 5KA

Product Description

Leviton 8380-IGG is a surge protective receptacle that provides 125 VAC and 20 A of power, with a five kA short circuit rating. This device features a straight blade design and is suitable for use in hospitals and other critical applications. The receptacle is tamper-resistant, ensuring safety against accidental contact with live circuits.

• Indicator light shows protection status
• Back and side wired for flexible installation
• Compliant with UL 1449 standards

Product Highlights

The Leviton 8380-IGG is designed to protect sensitive electrical equipment from damaging voltage surges and transients. Ideal for commercial and residential applications, this device diverts voltage spikes away from micro circuitry, ensuring reliable operation and preventing failures.

Product Information

Standard Information

• Brand: Leviton
• Voltage Rating: 125 VAC

Technical Specifications

• MPN: 8380-IGG
• Amperage Rating: 20 A
• Short Circuit Current Rating: 5 kA
• Size: 3.81 inches H x 1.7 inches W x 1.47 inches D
• Connection: Back/Side Wired
• Operating Temperature: -40 to 60 degrees C
• Material: Polycarbonate
• Mounting: Surface
• Type: 2-Pole 3-Wire Type 3-Duplex Isolated Self-Grounding
• Type of Indicators: Audible Alarm/Light
• Environmental Conditions: UL 94 V-2 Flammability Rated
