Leviton 8319-C Connector Straight Blade Hospital Grade Grounding

Product Description

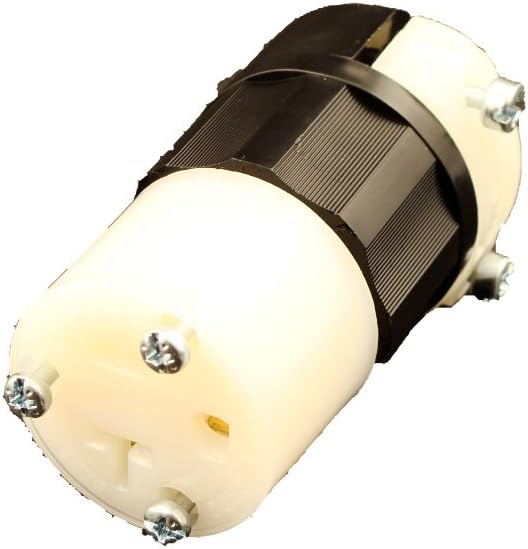

The Leviton 8319-C is a 20 Amp, 125 Volt straight blade connector designed for hospital-grade applications. Constructed with rugged nylon, it resists impact, sunlight, chemicals, and rough use. This grounding connector features solid brass contacts for enhanced conductivity and reliable performance in demanding healthcare environments.

• 20 Amp, 125 Volt
• Straight Blade, Hospital Grade
• Cable Mount Grounding

Product Highlights

Durable nylon construction, solid brass contacts, and suitability for hospital environments ensure long-lasting performance and reliability.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 8319-C
• Country of Origin: US

Technical Specifications

• Voltage: 125 Volts
• Material: Nylon
• Certification: NEMA
• Batteries Included?: No
• Batteries Required?: No
• Included Components: 8319-C
• National Stock Number: 5935-01-012-3066
• Amperage Rating: 20 A
• Cord Diameter: 0.245 to 0.7 in
• Grade: Hospital
• NEMA Rating: NEMA 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Screw
• Type: Cable Mount Grounding
• Voltage Rating: 125 VAC
• Manufacturer: LEVITON
• Operating Temperature: -40°C to 60°C
• Assembly Screws: Steel, Zinc Plated
• Back Cover: Thermoplastic
• Blades/Contacts: Solid Brass
• Body Material: Super Tough Nylon
• Clamp Insert: Nylon
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Grounding
• Pole: 2
• Product ID: Ratings and NEMA I.D. permanently marked on device
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Terminal Accom.: 18-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, White-Neutral
• Torque Range: 10-14 in-lbs
• Wire: 3
• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NOM: 057
• UL 498: File E13399
• UL Fed Spec WC-596: File E13393
