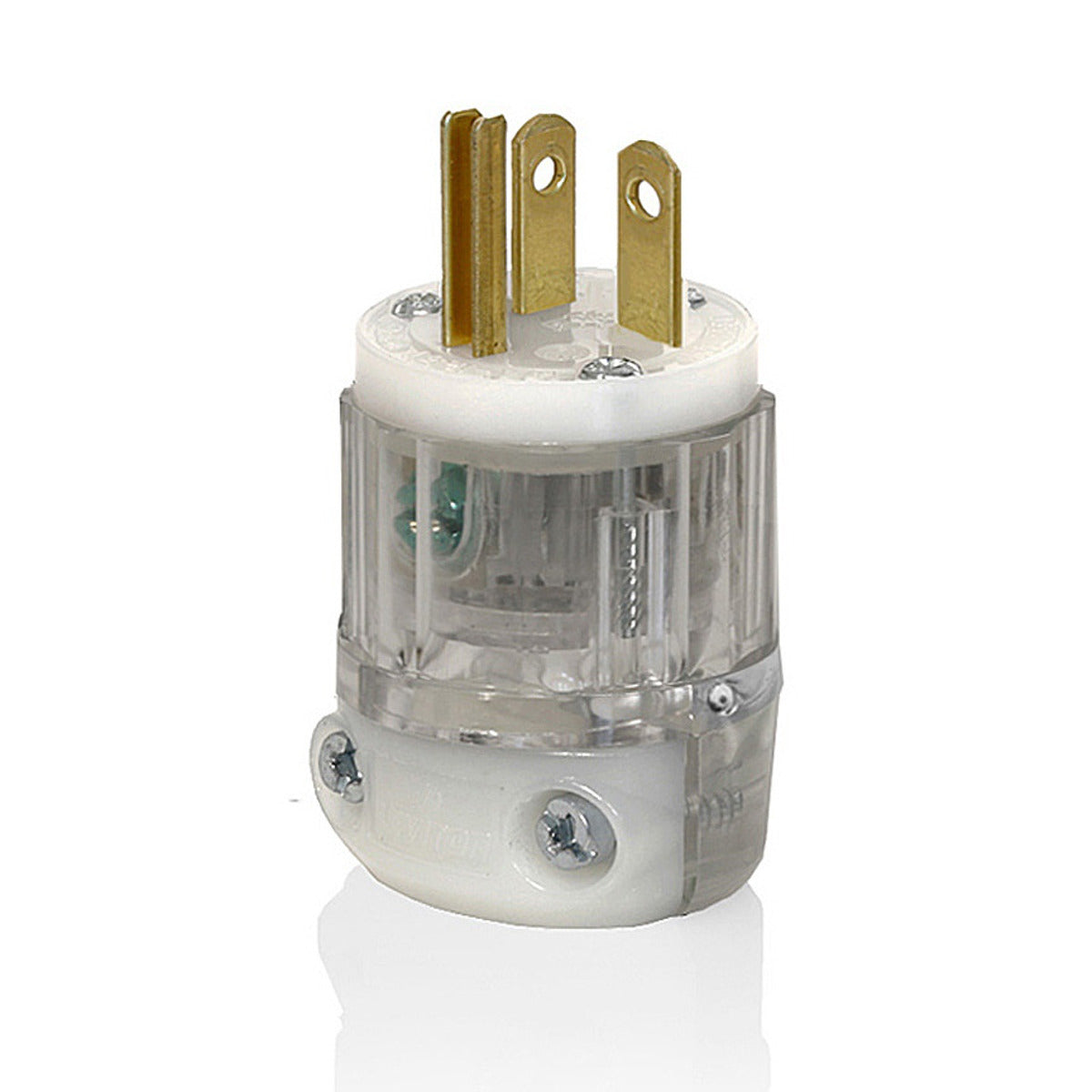

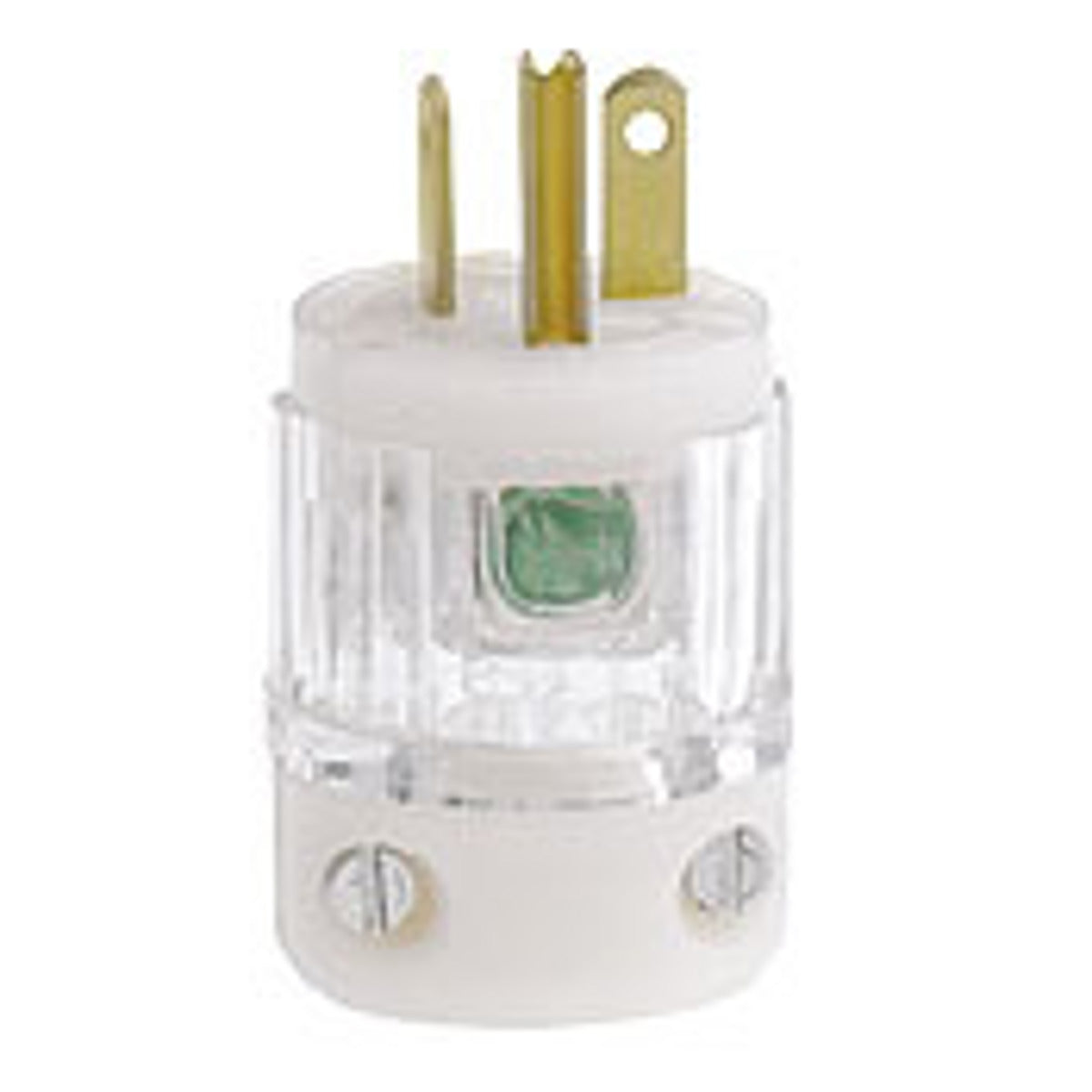

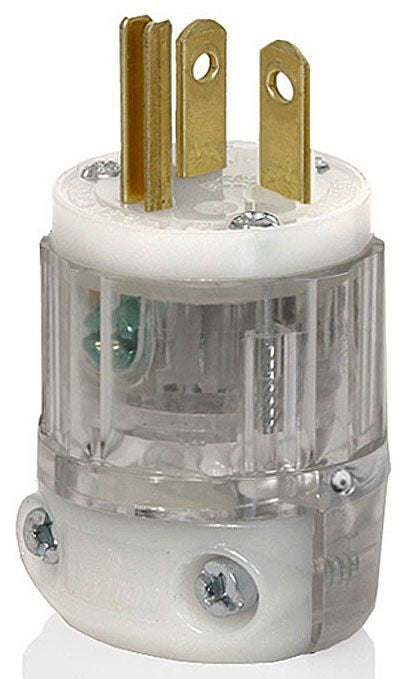

Leviton 8315-PLC Straight Blade Plug 20 A 125 V (1.53 in Dia x 1.98 in H)

Product Description

Leviton 8315-PLC is a hospital-grade straight-blade NEMA 5-20P plug rated 20 A and 125 V with a power-indicating pilot light. It is a cable-mount, grounding device that accepts 18�10 AWG conductors and accommodates a cord grip range of .250�.685 in. The super-tough nylon body houses solid brass blades/contacts, is certified to NEMA/ANSI/CSA/UL standards, and is rated for operation from -40 to +60 deg C.

• Hospital-grade NEMA 5-20P, 2-pole 3-wire grounding plug rated 20 A, 125 V with power indication
• Accepts 18�10 AWG conductors; cord grip range .250�.685 in; screw terminal connections
• Super-tough nylon body with solid brass blades/contacts; operating temperature -40 to +60 deg C

Product Highlights

Hospital-grade NEMA 5-20P plug with pilot light, accepts 18�10 AWG, cord grip .250�.685 in, super-tough nylon body

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 8315-PLC
• Country of Origin: United States

Technical Specifications

• Manufacturer: Leviton
• Manufacturer Part Number: 8315-PLC
• Brand: Leviton
• UPC: 078477978726
• Item Type: Straight Blade Plug
• NEMA Configuration: 5-20P
• Amperage Rating: 20 A
• Voltage Rating: 125 V
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Yes
• Polarized: Yes
• Mounting Type: Cable mount
• Body Material: Super tough nylon
• Back Cover Material: Thermoplastic
• Blade/Contact Material: Solid brass
• Terminal Accommodation (Wire Size): 18-10 AWG
• Cord Grip Range: .250 - .685 in
• Operating Temperature Range: -40 to +60 deg C
• Power Indication: Yes (pilot light)
• Pilot Light Rating: 30,000 hours
• Dielectric Withstand: 2000 V per UL498
• Temperature Rise: Max 30 deg C after 250 cycles OL at 200% rated current
• Standards and Certifications: NEMA; ANSI C-73; NOM 057; CSA C22.2 No. 42; UL 498; UL Fed Spec WC-596
• Environmental Conditions: Flammability V-2 per UL94; dry environment
• Grade: Hospital
• Size/Dimensions: 1.53 in Dia x 1.98 in H
• Country of Origin: Mexico
• RoHS Compliant: Yes
