Leviton 8315-CT Plug Hg 2Po 3Wi 5-20P 20A 125V

Brand: LEVITON
SKU: 8315-CT
Availability: Out Of Stock
$39.84
$39.84
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

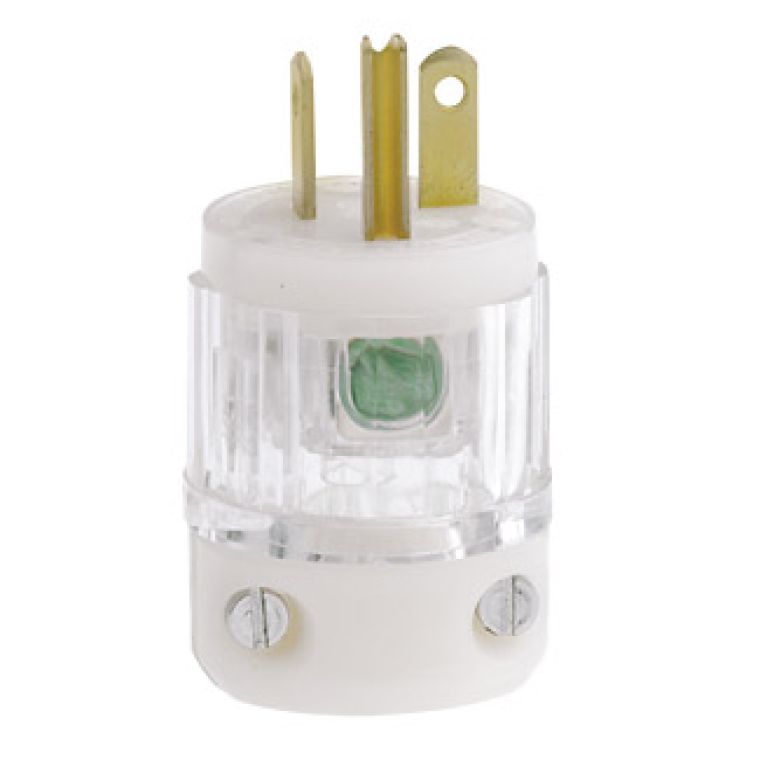

The Leviton 8315-CT straight blade plug is a cable mount grounding plug with a NEMA 5-20P rating. This 20A, 125V AC, 2-pole, 3-wire hospital-grade plug features rugged nylon construction that resists impact, sunlight, and chemicals. It accommodates cord diameters from 0.25 to 0.685 inches and wire sizes from 18 to 10 AWG.

  • Features unmatched quality and performance confirmed by rigorous UL 498 testing
  • Rugged construction resists impact, sunlight, chemicals and rough use
  • All contacts are solid 1-piece brass for better conductivity

Product Highlights

This Leviton straight blade plug is ideal for industrial applications requiring a durable and reliable connection.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 8315-CT
  • Country of Origin: United States
Technical Specifications
Amperage Rating
20 A
Voltage Rating
125 VAC
NEMA Rating
5-20P
Number of Poles
2
Number of Wires
3
Type
Cable Mount Grounding
Grade
Hospital
Material
Nylon
Cord Diameter
0.25 to 0.685 in
Temperature Rating
-40 to 60 deg C
Grounding
Grounded
Horsepower Rating
1 hp
IP Rating
Not Rated
Polarized
Yes
Resistance Properties
Shatter and Crack Resistant, Chemical Resistant, Moisture Resistant
UL 94 Flammability Rating
V-2
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Face Diameter
1.39 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Connection Orientation
Straight
Standards
ANSI C-73, NOM 057, NEMA WD-1/WD-6, CSA C22.2 No. 42 File No. LR406, UL 498 File No. E13399, Federal Specification WC596, UL94 V-2 Flammability Rating
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
NEMA Plug Configuration
5-20P
