Product Description

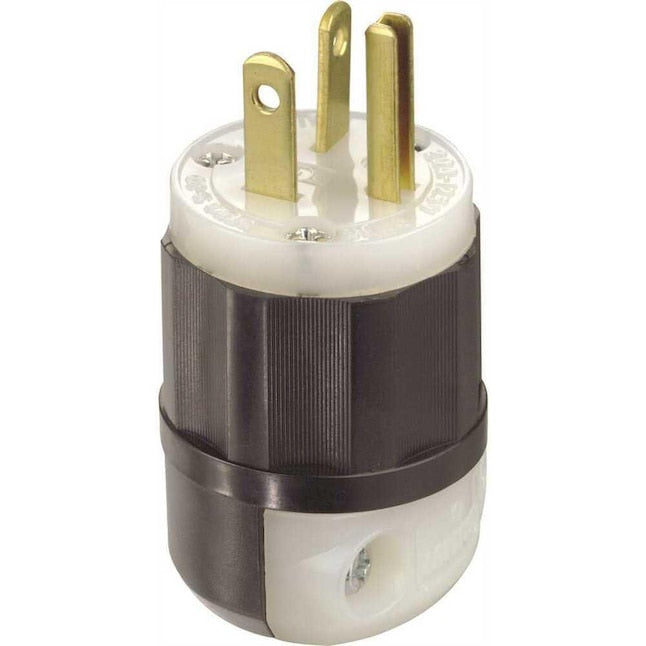

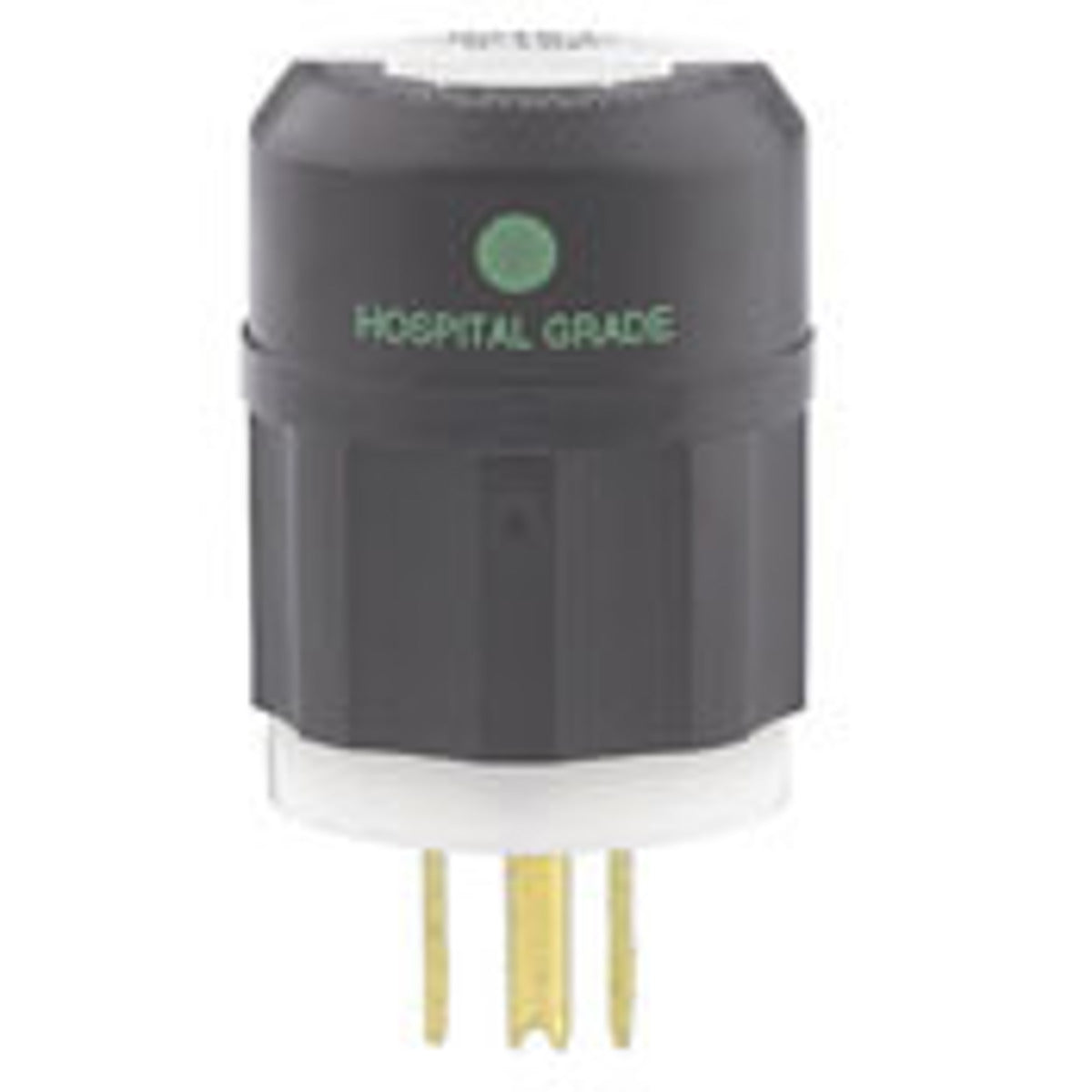

The Leviton 8315-C is a 20 Amp, 125 Volt, straight blade plug designed for hospital-grade applications. This grounding plug features a super tough nylon body for durability. It is suitable for cable mounting and offers reliable performance in demanding environments. The ergonomic design ensures a secure grip.
- Rated for 20 Amps and 125 Volts
- Hospital grade for critical applications
- Constructed with super tough nylon body
Product Highlights
This Leviton straight blade plug is ideal for hospital settings, providing a safe and durable power connection.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 8315-C
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: 8315-C
-
Manufacturer: Leviton
-
Brand: Leviton
-
Sub Brand: Black & White
-
Country of Origin: Mexico
-
Made in USA: No
-
Amperage Rating: 20 A
-
Application: Hospitals
-
Material: Super Tough Nylon (Body)
-
Mounting: Cable
-
NEMA Rating: 5-20P
-
Number of Poles: 2
-
Number of Wires: 3
-
Standard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399);UL Fed Spec WC-596 (File E13393)
-
UPC: 078477795910
-
GTIN: 00078477795910
-
Item Type: Straight Blade Plug
-
Environmental Conditions: Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
-
Voltage Rating: 125 VAC
-
Wire Size: 18-10 AWG (Terminal Accommodation);.250-.685 IN (Cord Grip Range)
-
Cord Diameter: 0.25 to 0.685 in
-
Grade: Hospital
-
Temperature Rating: -40 to 60 deg C
-
Type: Cable Mount Grounding
-
Phase: Single
-
Shrouded: No
-
Cord Size: 0.245 in to 0.7 in
-
Grounding: Grounded
-
IP Rating: Not Rated
-
Polarized: Yes
-
Standards: ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13399, UL Federal Specification WC-596 File E13393
-
Body Length: 1.98 in
-
Wiring Style: Standard
-
Face Diameter: 1.39 in
-
Housing Material: Impact Modified Nylon
-
Outside Diameter: 1.53 in
-
Horsepower Rating: 1 hp
-
Maximum Wire Size: 10 AWG
-
Minimum Wire Size: 18 AWG
-
NEMA Configuration: 5-20
-
Insulation Material: Nylon
-
Wire Connection Type: Screw Terminals
-
NEMA Enclosure Rating: Not Rated
-
Resistance Properties: Shatter and Crack Resistant, Chemical Resistant, Moisture Resistant
-
Connection Orientation: Straight
-
NEMA Plug Configuration: 5-20P
-
Power Indicating Lights: Without Power Indicating Lights
-
UL 94 Flammability Rating: V-2
-
For Maximum Cable Diameter: 0.7 in
-
For Minimum Cable Diameter: 0.245 in
-
Amps - Plugs and Receptacles: 20 A
-
Item - Plugs and Receptacles: Straight Blade Plug
-
Maximum Operating Temperature: 60 Degrees C
-
Minimum Operating Temperature: -40 Degrees C
-
Voltage - Plugs and Receptacles: 125VAC
-
Hazardous Location Specification: Not Applicable
-
HP: 1.0
-
Amps: 20
-
Antimicrobial: No
-
Special Features: Ergonomic, Fluted Body Design
-
Temperature Rise: Max 30°C after 250 cycles OL at 200 percent rated current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Current Interrupting: Certified for current interrupting at full rated current
-
Flammability: Rated V-2 per UL94
-
Operating Temperature: -40°C to 60°C
-
Body Material: Super Tough Nylon
-
Back Cover: Thermoplastic
-
Wire Module: Nylon
-
Cord-Clamp: Nylon
-
Clamp Insert: Nylon
-
Blades/Contacts: Solid Brass
-
Terminal Screws: Brass
-
Assembly Screws: Steel, Zinc Plated
-
Terminal ID: Black-Hot, Green-Ground, White-Neutral
-
Terminal Accom.: 18-10 AWG
-
Product ID: Ratings and NEMA I.D. permanently marked on device
-
Cord Range: .245 - .700
-
ANSI: C-73
-
UL 498: File E13399
-
UL Fed Spec WC-596: File E13393
-
CSA C22.2 No. 42: File LR-406
-
NOM: 057
-
Connector Type: Type B
-
Product Grade: Hospital
-
Specification Met: NEMA
