Product Description

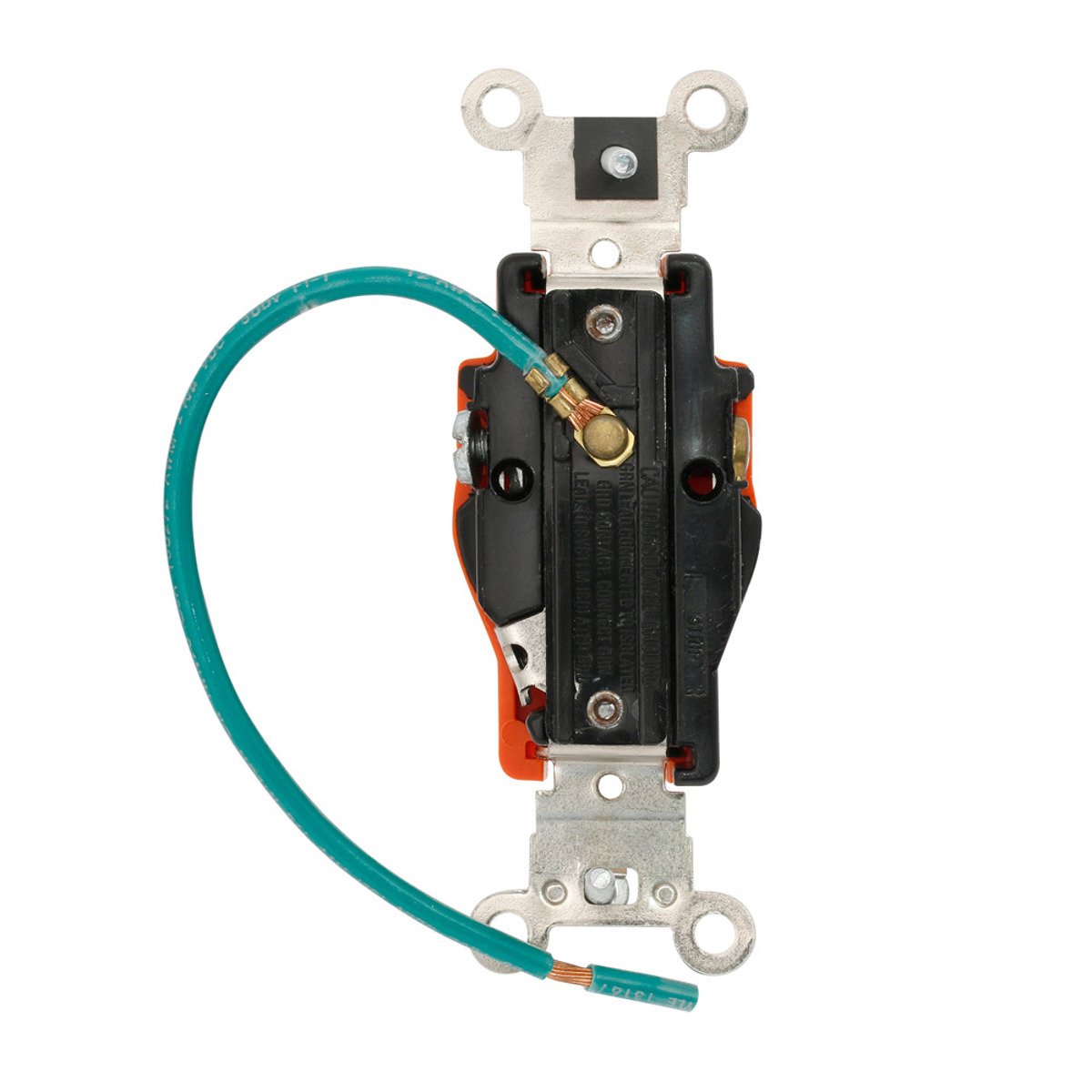

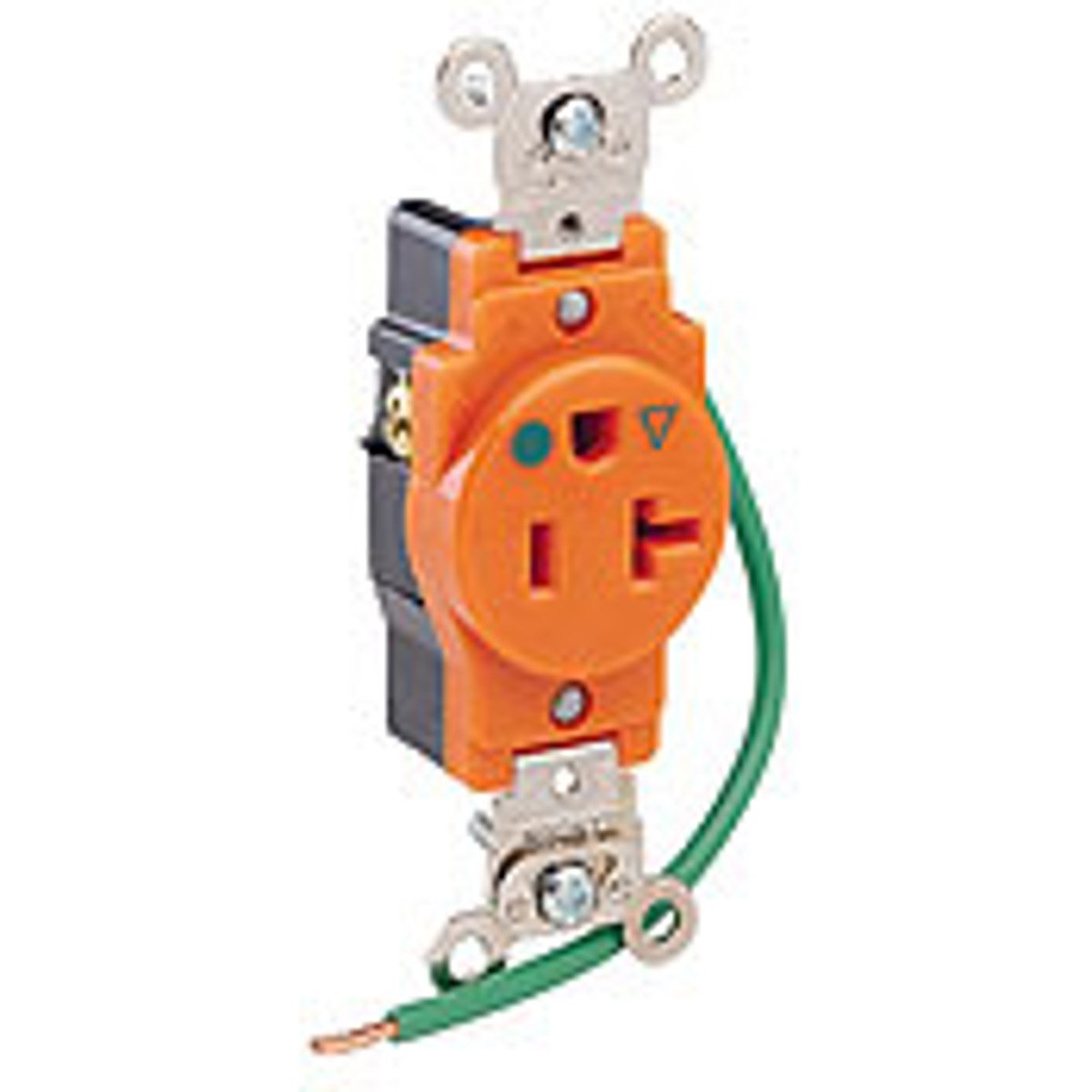

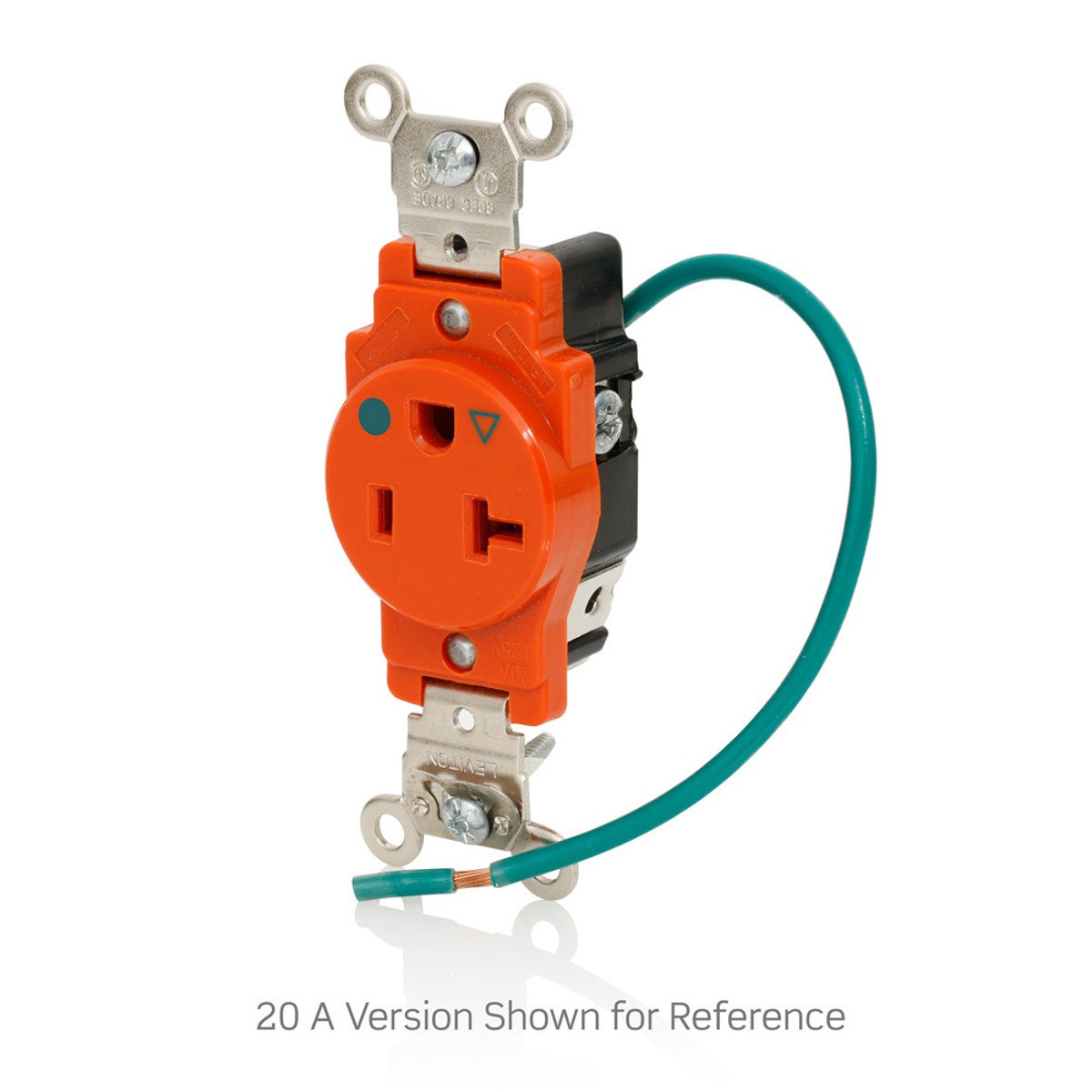

Leviton 8310-OIG is an extra heavy-duty isolated ground single straight blade receptacle. This receptacle supports a voltage rating of one hundred twenty-five VAC and an amperage rating of twenty A. It is designed for applications that require two poles and three wires. This product is suitable for hospital-grade installations and can handle a horsepower rating of one HP.
- Impact resistant thermoplastic nylon cover
- Back and side wire terminal options
- Power Indication lens with long-lasting LED
Product Highlights
This receptacle is engineered for robust applications. It is ideal for health care facilities, manufacturing plants, and educational institutions. Its construction ensures durability and reliable performance in demanding environments.
Product Information
Standard Information
-
Manufacturer: Leviton
-
MPN: 8310-OIG
Technical Specifications
-
Voltage Rating: 125 VAC
-
Amperage Rating: 20 A
-
Material: Thermoplastic
-
NEMA Rating: NEMA 5-20R
-
Dimensions: 46 inches H x 1.31 inches W x 16 inches D
-
Temperature Rating: -40 to 60 degrees C
-
Number of Poles: 2
-
Number of Wires: 3
-
Environmental Conditions: Flammability (Rated V-2 per UL94)
