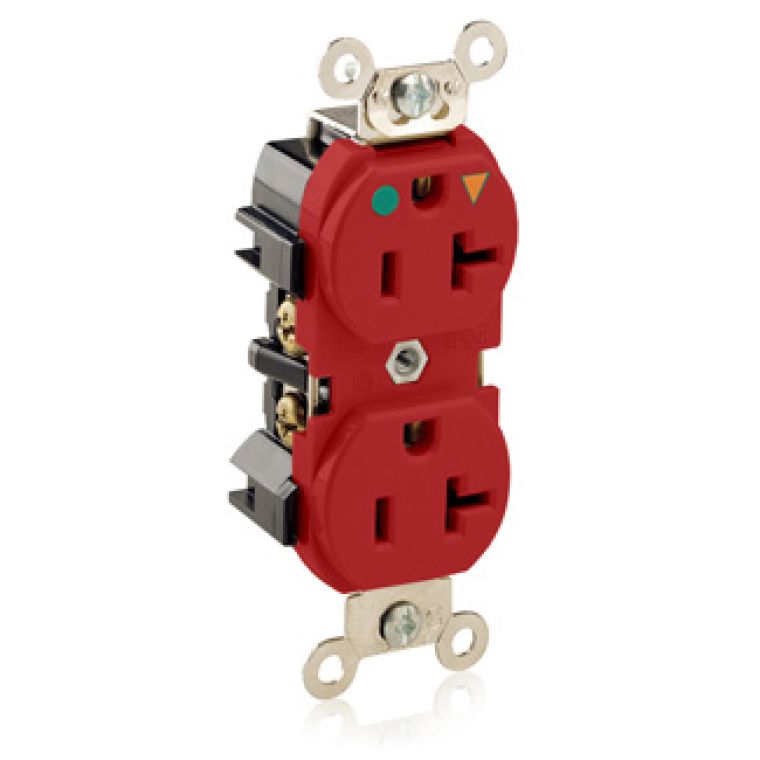

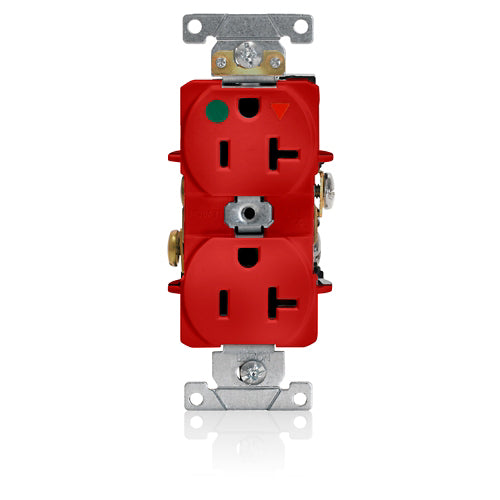

Leviton 8300IGR 20 Amp Isolated Ground Duplex Receptacle/Outlet, Hospital Grade

Product Description

The LEVITON 8300IGR is a heavy-duty hospital-grade isolated ground duplex receptacle outlet. Rated for 20 Amp and 125 Volt, it features a smooth face and is designed for back or side wire installation. This receptacle is suitable for applications requiring high-abuse tolerance, such as healthcare facilities, manufacturing plants, and schools.

• Smooth Face
• Isolated Ground
• Heavy-Duty Hospital Grade

Product Highlights

This receptacle ensures continuous, safe operation in demanding environments. It is ideal for health care facilities, manufacturing plants and schools.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 8300IGR
• Country of Origin: Mexico

Technical Specifications

• Nema: 5-20R
• Amperage: 20 A
• At Rated Voltage: 1 HP
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 3000V min
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C temperature rise at full rated current
• Voltage: 125 VAC
• Wire: 3
• Flammability: Rated V-0 per UL 94
• Operating Temperature: -40°C to 60°C
• Body Material: PBT Polyester Blend
• Clamp Nuts: 0.030" Brass
• Face Material: PBT Polyester Blend
• Ground Clips: Brass
• Ground Contacts: 0030" Brass
• Grounding Screw: #8 Hex Head, Triple-Drive Bass
• Line Contacts: 0.030" Phosopher Bronze
• Mounting Screws: Triple-Drive Plated Steel
• Shutter Mechanism: Acetal
• Strap Material: Steel (Galvanized G60)
• Terminal Screws: #8 Triple-Drive Brass
• Terminal Clamp: Brass
• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back or Side Wire
• Wire Type: Stranded or Solid
• ANSI: C-73
• Applicable Standards: UL 498, Fed Spec W-C-569, CSA 22.2 No. 42
• CSA C22.2 No. 42: File 152105
• Certification/Listing: cULus, NOM-ANCE
• NEMA: WD-6
• NOM: 057
• RoHS: RoHS Compliant
• UL Fed Spec WC-596: File E13399
• UL498HG: File E13399
• Brand Name: Leviton
• Brand Part Number: 8300-IGR
• ECCN: EAR99
• Standard: NEMA WD-6
• Connection Type: Back and Side Wired
• Material: PBT Polyester Blend
• Mounting Type: Wall
• Amperage Rating: 20A
• AWG Range: 14 - 10 AWG
• NEMA Configuration: 5-20R
• No. of Wires: 3
• No. of Poles: 2
• ADI Part Number: LV-8300IGR
• Manufacturer: Leviton Mfg. Company, Inc
• Manufacturer Part Number: 8300IGR
• Product Name: Power Socket
• Product Type: Power Socket
• Current Rating: 20 A
• Voltage Rating: 125V AC
• Country of Origin: MX
• Type: Duplex
• Ground: Isolated Ground
• Application Grade: Hospital
• Waterproof: No
• Weather Resistant: No
• Tamper Resistant: No
• Wiring Method: Back, Side
