Product Description

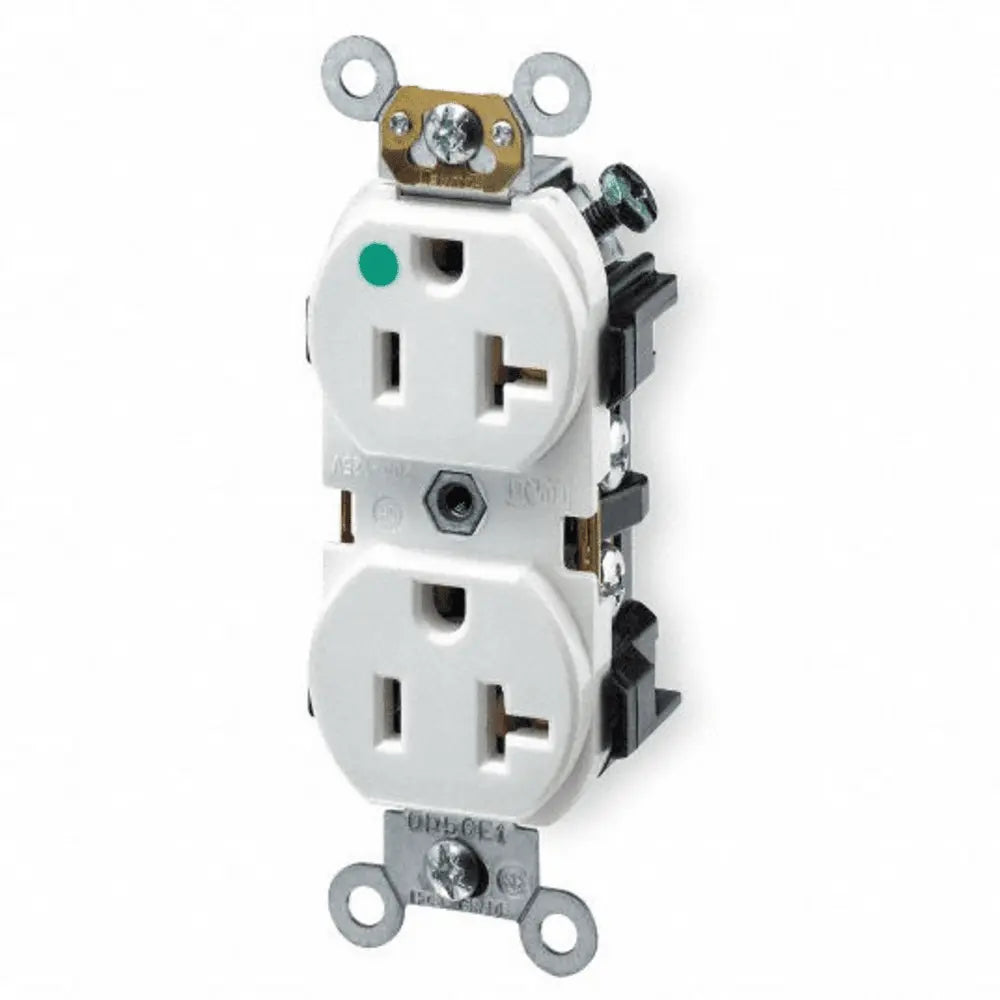

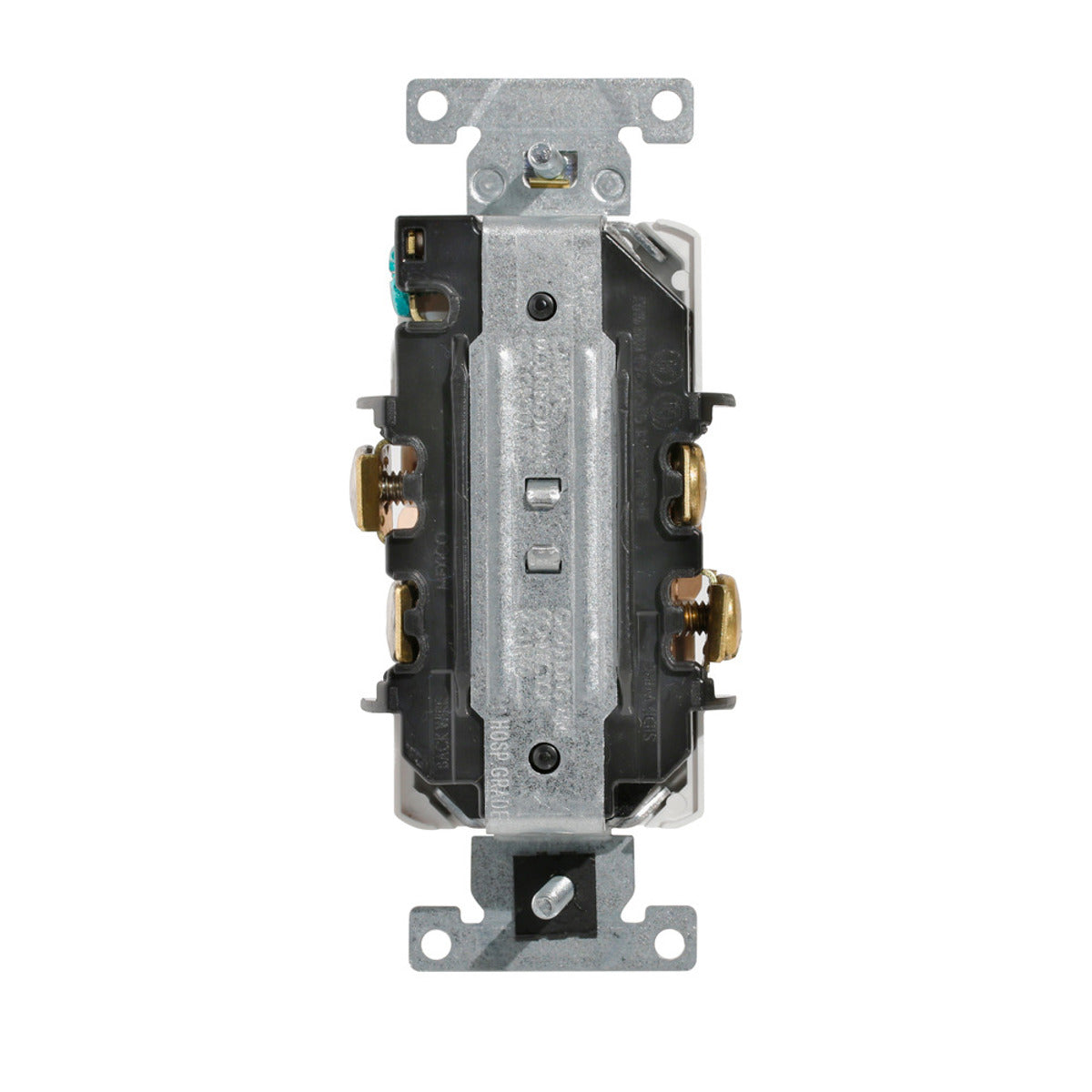

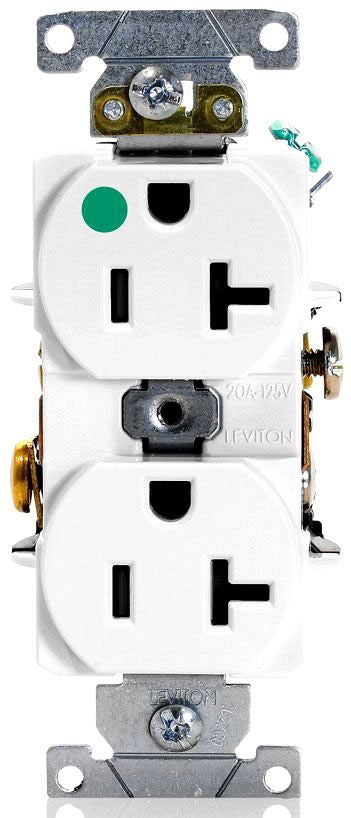

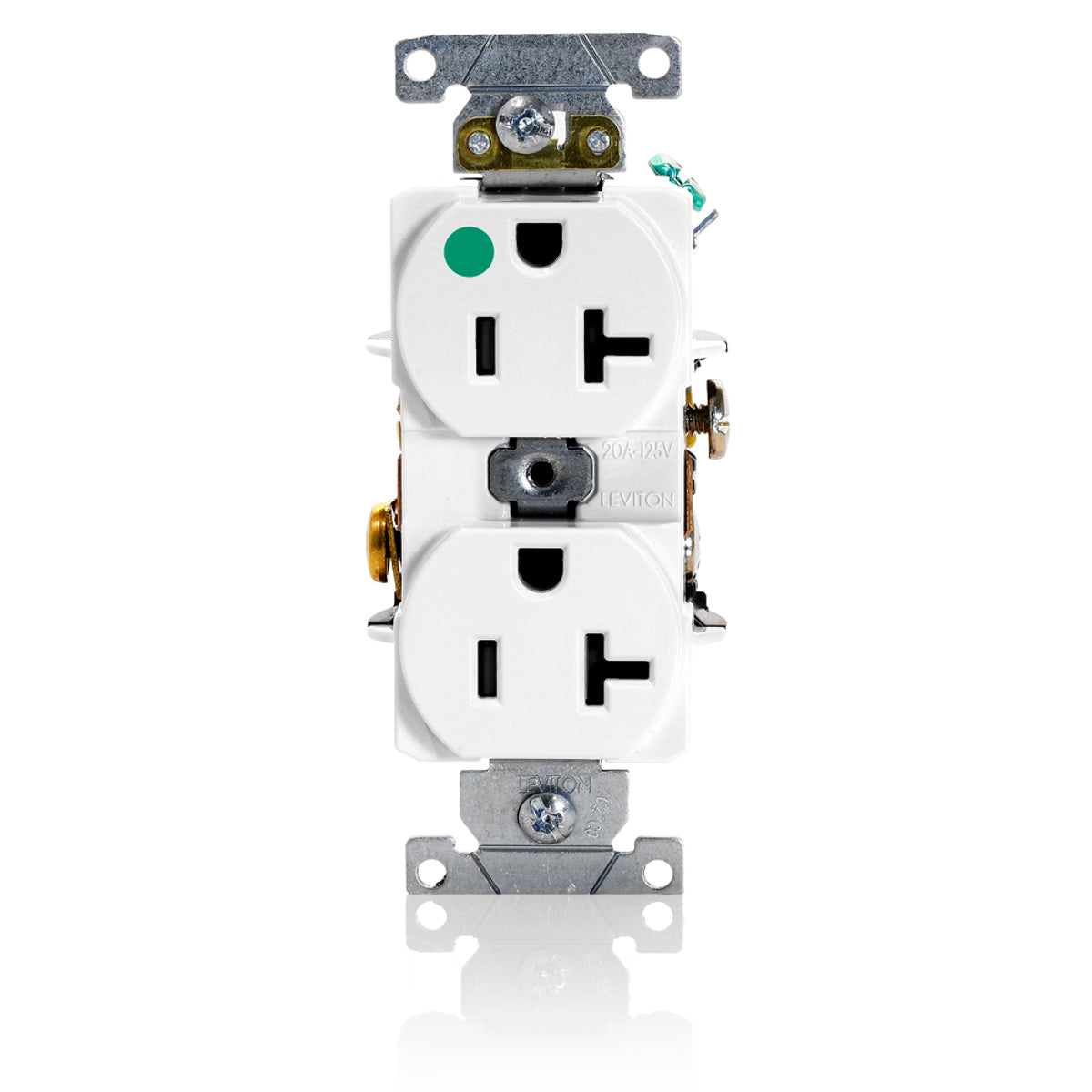

The Leviton 8300-HW is a straight blade duplex receptacle with a heavy-duty slim body. This 125 VAC, 20 A, 1 hp, 2-pole, 3-wire receptacle features NEMA 5-20R NEMA rating and NEMA WD-6/IP20 enclosure. It is constructed with thermoplastic material and has back/side wire terminals. Suitable for health care facilities, manufacturing plants and schools.
- Impact-resistant thermoplastic nylon cover and body
- Nickel plated brass clamp nuts/ground clips
- 14 to 10 AWG wire terminal
Product Highlights
This heavy-duty, slim-body receptacle is ideal for high-abuse applications. It features back and side wiring options and break-off tabs for easy two-circuit conversion.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 8300-HW
-
Country of Origin: Mexico
Technical Specifications
-
Type: Heavy Duty Slim Body
-
Grade: Hospital
-
Material: Thermoplastic
-
Enclosure: NEMA WD-6/IP20
-
Horsepower: 1 hp
-
NEMA Rating: NEMA 5-20R
-
Manufacturer: LEVITON
-
Terminal Type: Back/Side Wire
-
Voltage Rating: 125 VAC
-
Amperage Rating: 20 A
-
Number of Poles: 2
-
Number of Wires: 3
-
Temperature Rating: -40 to 60 deg C
-
Receptacle Type: Straight Blade Duplex
-
Grounding: Self-Grounding
-
Device Type: Duplex Receptacle Outlet
-
Feature 4: Smooth Face
-
Flammability: Rated V-2 per UL94
-
Current Limiting: Full Rated Current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Standard: ANSI (C-73);CSA C22.2 No. 42 (File 152105);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399)
-
Wire Size: 14-10
-
Connection: Back and Side Wired
-
Number Of Poles: 2 Pole
-
Number Of Wires: 3
-
Dielectric Strength: 2000 (Min.)
-
Application: Commercial
-
UPC: 078477818916
-
GTIN: 00078477818916
-
Mounting: Wallbox
-
Phase: 1 Phase
-
Number of Outlets: 2
-
Item Type: Straight Blade;Duplex Outlet
-
Width: 1.51 in
-
Torque Range: 14-16 inch pounds
-
Terminal Accom.: 14-10 AWG
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Termination: Back or Side Wire
-
Strap Material: Galvanized Steel with Riveted Ground Contacts
-
Line Contacts: Phosphor Bronze
-
Body Material: Nylon
-
Face Material: Nylon
-
Grounding Screw: Brass
-
Terminal Screws: Brass
-
Screw Terminal Torque: 14-18 in-lbs
-
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
-
NEMA Configuration: 5-20R
-
Amperage: 20 A
-
Pole: 2
-
Wire: 3
-
ANSI: C-73
-
CSA C22.2 No. 42: File 152105
-
NOM: 057
-
UL Fed Spec WC-596: File E13399
-
UL498HG: File E13399
-
RoHS Compliant: True
-
Wire Count: 3
-
Connection Type: Back and Side Wired
-
Mounting Type: Wall Box
-
Termination Type: Back Wire,Side Wire
-
Flamability Class: Rated V-2 Per UL94
-
Power Plug Type: Type A - 2 pin (North American)
-
Total Power Outlets: 2
-
ECCN: EAR99
-
UNSPSC: 39121406
-
AWG Range: 14 - 10 AWG
-
No. of Wires: 3
-
Rated Voltage: 125V
-
Color Family: White
-
No. of Poles: 2
-
ADI Part Number: LV-8300HW
-
Manufacturer Part Number: 8300-HW
-
Product Name: 20A Duplex Receptacle/Outlet, Hospital Grade, Self-Grounding
-
Product Type: Receptacle
-
Current Rating: 20A
-
Item Dimensions L x W: 1.74"L x 1.09"W
