Product Description

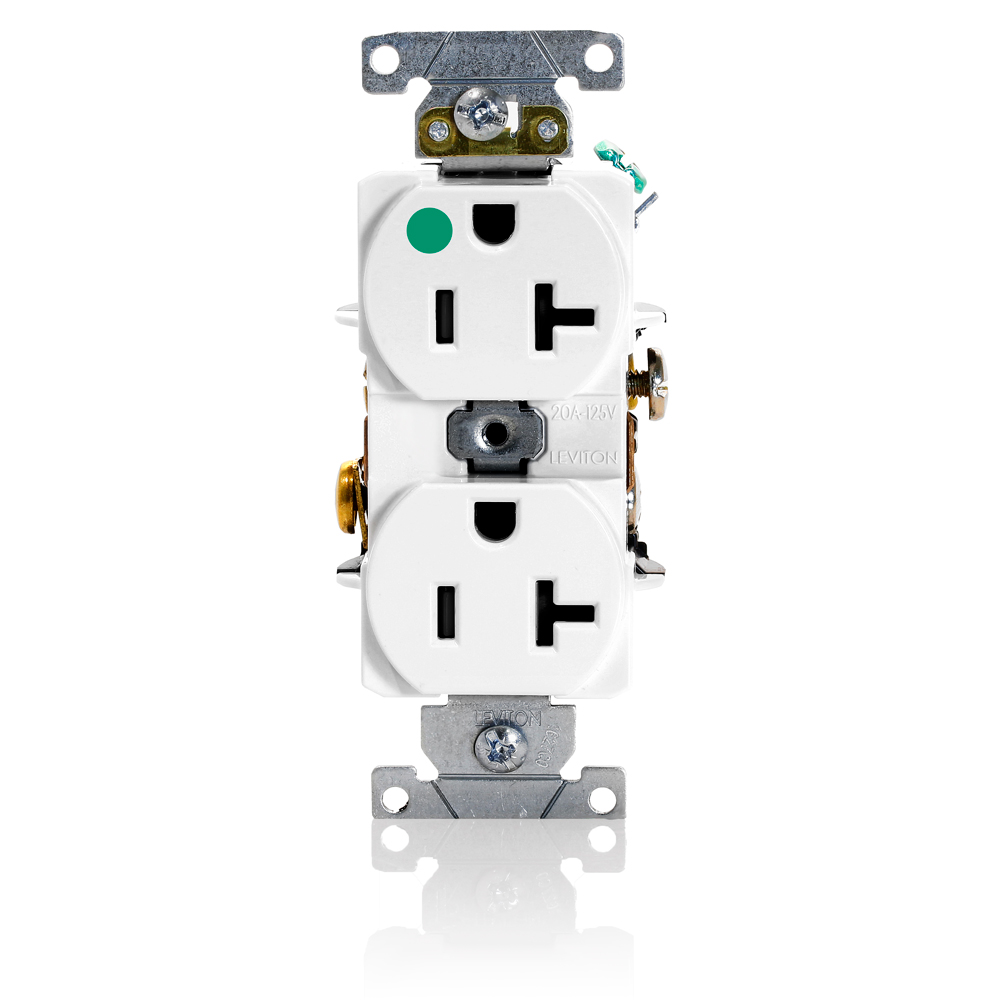

The Leviton 8300-HW is a heavy-duty hospital grade duplex receptacle designed for high-abuse environments where superior performance is a priority. This model is crafted in white with a self-grounding feature, compatible with a power rating of 125 volts and 20 amps.
- Impact-resistant nylon construction enhances durability.
- Features a smooth face that prevents dirt accumulation.
- Equipped with a permanent green dot lens and a 100,000-hour LED indicator for operational status.
Product Highlights
Leviton's 8300-HW receptacle stands out for its robust design tailored for health care facilities, schools, and manufacturing plants. It meets stringent UL hospital grade standards, ensuring reliability in demanding applications.
Product Information
Standard Information
-
Brand: Leviton
-
MPN: 8300-HW
-
NEMA Rating: 5-20R
Technical Specifications
-
Color: White
-
Voltage: 125 VAC
-
Amperage: 20 A
-
Number of Poles: 2
-
Number of Wires: 3
-
Temperature Rating: -40 to 60 degrees C
-
Material: Thermoplastic
-
Mounting Type: Wall Box
-
Connection Type: Back and Side Wired
-
Standards: ANSI C-73, CSA C22.2 No. 42, UL498HG
