Product Description

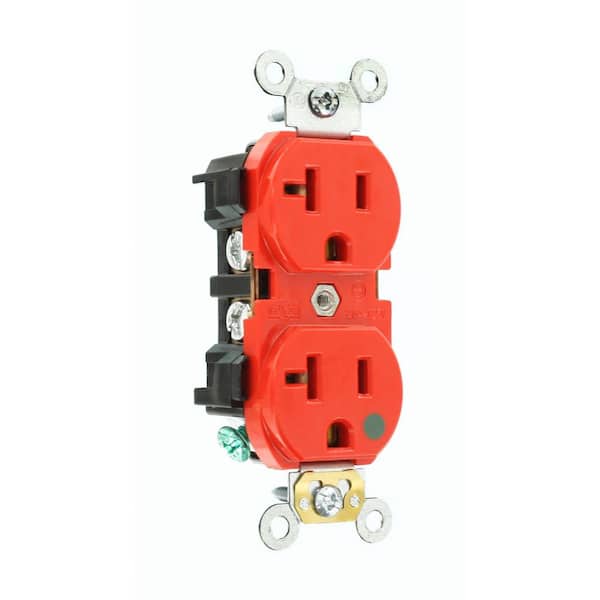

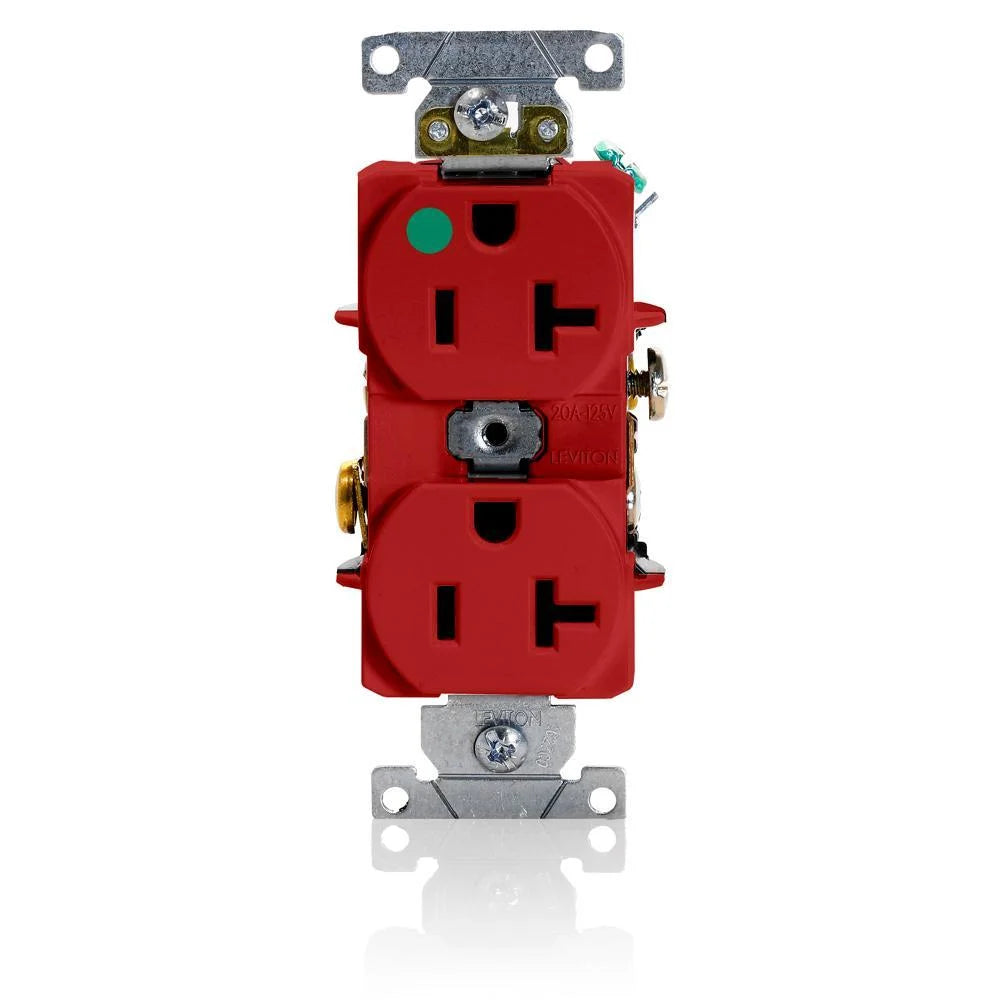

The Leviton 8300-HR is a 20-Amp, 125-Volt, heavy-duty hospital-grade duplex receptacle with a straight blade and self-grounding features. Constructed with a thermoplastic material, this receptacle is suitable for commercial applications. It features back and side wiring options and a slim body design.
- 20-Amp
- 125-Volt
- Heavy Duty Hospital Grade
Product Highlights
This heavy-duty receptacle is ideal for high-abuse environments such as healthcare facilities, manufacturing plants, and schools.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 8300-HR
-
Country of Origin: Mexico
Technical Specifications
-
Voltage: 125 Volts
-
Material: Nylon
-
Amperage: 20 A
-
Poles: 2
-
Wires: 3
-
Amperage Rating: 20 A
-
Application: Commercial Applications
-
Enclosure: NEMA WD-6/IP20
-
Grade: Hospital
-
Horsepower: 1 hp
-
Manufacturer Part Number: 8300-HR
-
NEMA Rating: NEMA 5-20R
-
Number of Poles: 2
-
Number of Wires: 3
-
Standards/Approvals: ANSI (C-73)|CSA C22.2 No. 42 152105|NOM Certified|UL498HG E13399|UL Federal Specification WC-596 File No. E13399|UL94 Flammability Rating
-
Temperature Rating: -40 to 60 deg C
-

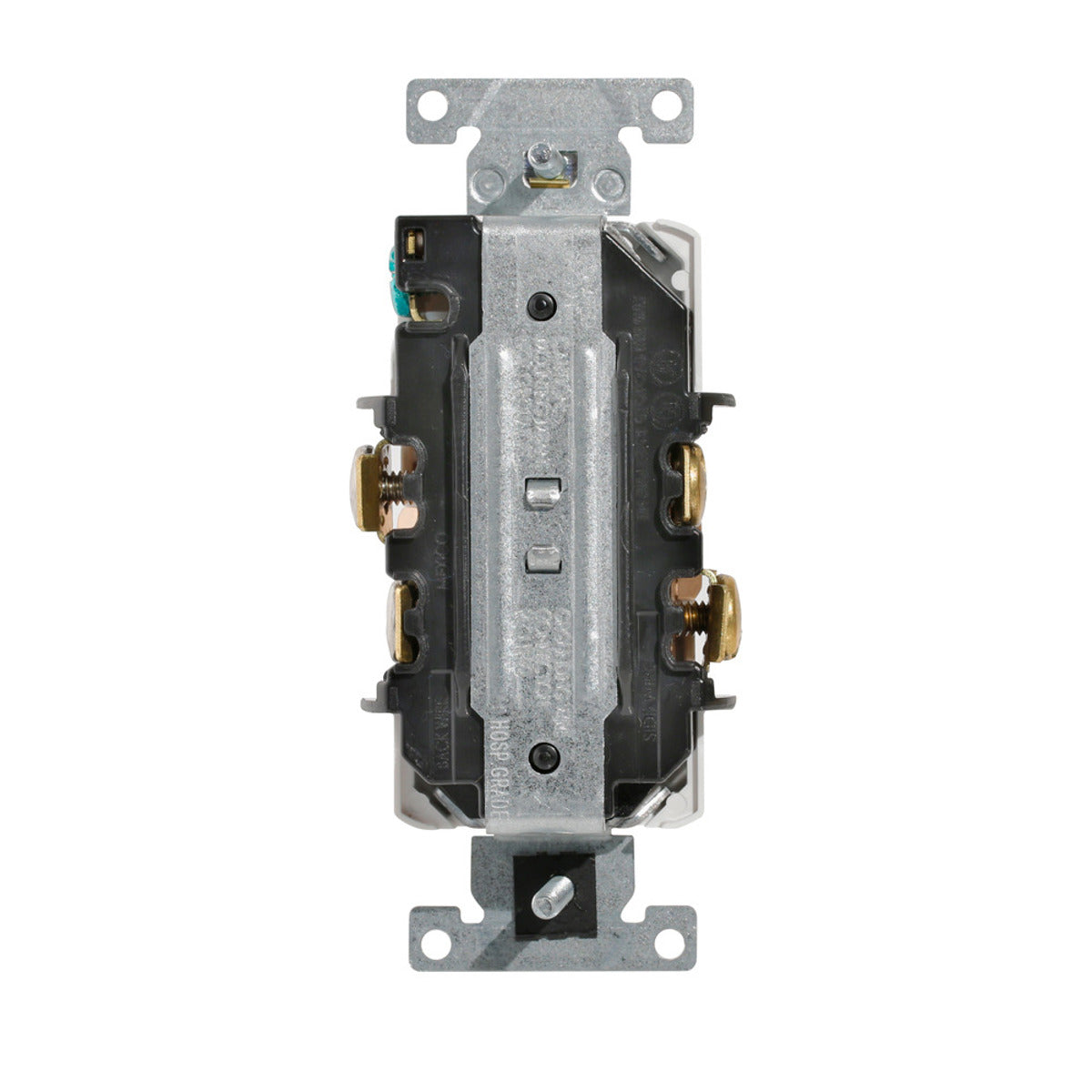

Terminal Type: Back/Side Wire
-
Type: Heavy Duty Slim Body
-
Voltage Rating: 125 VAC
-
Country of Origin: MX
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Termination: Back or Side Wire
-
Operating Temperature: -40 00b0C to 60 00b0C
-
Dielectric Strength: 2000 V
-
Flammability: Rated V-2 per UL94
-
Body Material: Nylon
-
Face Material: Nylon
-
Grounding: Self-Grounding
-
Clamp Nuts: Zinc-Plated Steel
-
Ground Clips: Brass
-
Product ID: Markings are permanently marked on device
-
Strap Material: Galvanized Steel with Riveted Ground Contacts
-
Terminal Screws: Brass
-
Torque Range: 14-16 inch pounds
-
Current Limiting: Full Rated Current
-
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Screw Terminal Torque: 14-18 in-lbs
-
Phase: 1
-
Wire Size: 14-10
-
Connection: Back and Side Wired
-
Mounting: Wallbox
-
Environmental Conditions: Flammability (Rated V-2 per UL94)
-
NEMA: 5-20R
-
RoHS Compliant: False
-
Pole: 2
-
Wire: 3
-
Line Contacts: Phosphor Bronze
-
UNSPSC: 39121406
-
Power Plug Type: Type A - 2 pin (North American)
-
Amperage (A): 20 A
-
Specification Met: UL
-
Total Power Outlets: 2
