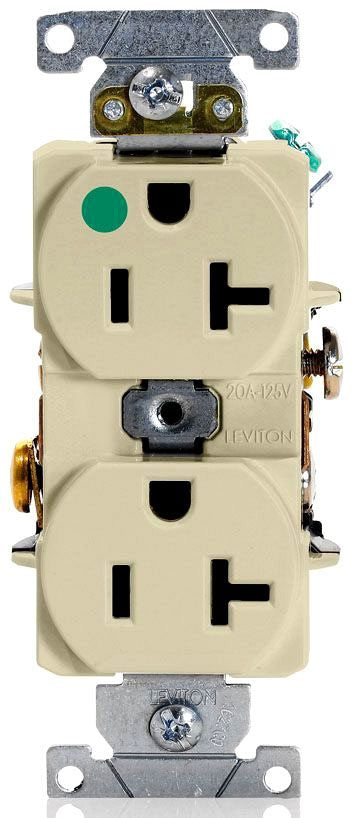

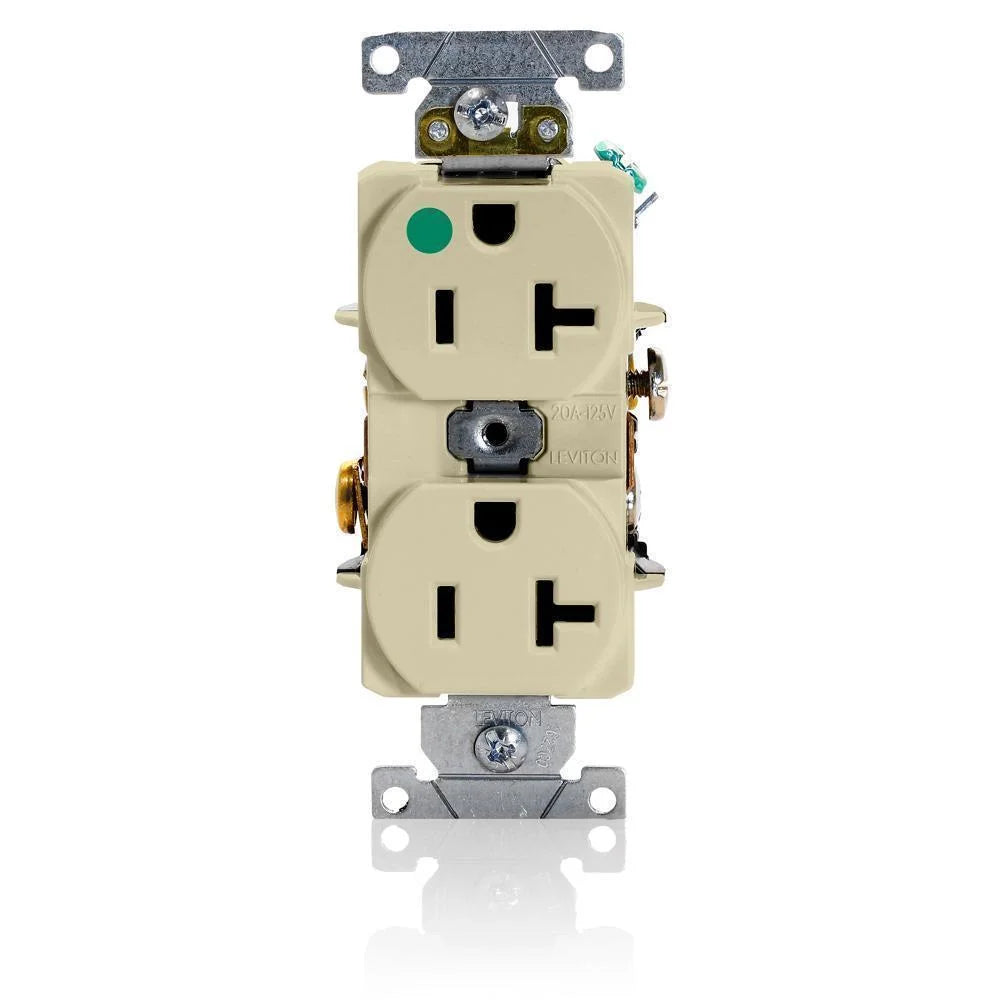

Product Description
The LEVITON 8300-HI is a straight blade receptacle designed for heavy-duty use. This duplex receptacle is hospital grade, ensuring safe and continuous operation in demanding environments. It supports 20A and 125V, and features a smooth face that resists dirt accumulation. Ideal for health care, manufacturing, and educational facilities.
- Designed to withstand demanding environments
- Smooth face resists dirt accumulation

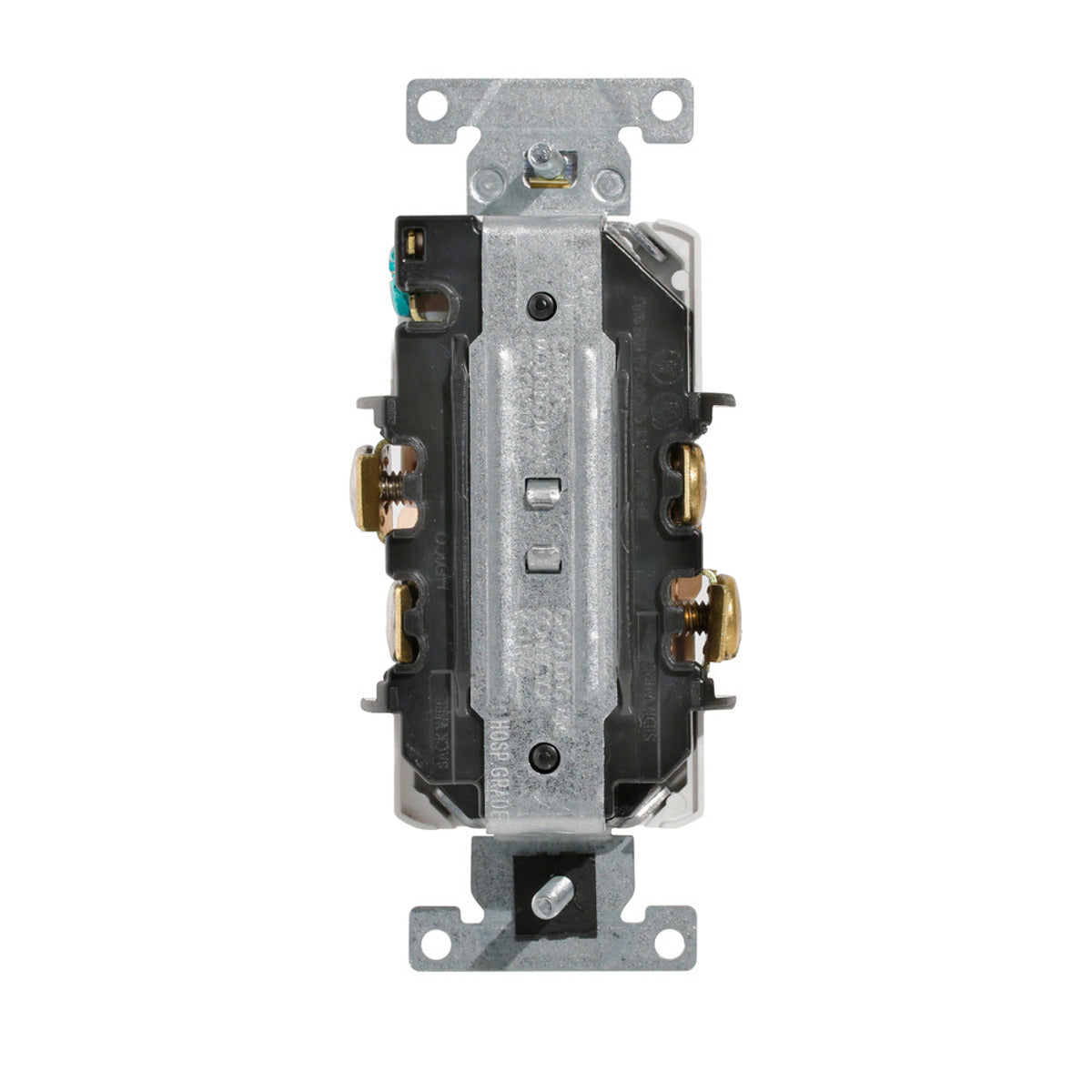

- Back and side wiring for fast and easy installation
Product Highlights
Heavy-duty, hospital-grade receptacle with smooth face and easy installation.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 8300-HI
-
Country of Origin: MX
Technical Specifications
-
Approval: UL 498, CSA C22.2, NOM 057
-
Configuration: 5-20R
-
Constructional Feature: Impact Resistant
-
Grade: Hospital, Heavy Duty
-
Ground Type: Grounding
-
Manufacturer Name: Leviton
-
Material: Nylon
-
Number Of Poles: 2-Pole
-
Number Of Wires: 3-Wire
-
PDW ID: ECL157393
-
Product UPC: 07847781890
-
Type: Hospital Grade Receptacles
-
Wiring: Back, Side
-
Amperage: 20 A
-
Voltage: 125 VAC
-
Poles: 2
-
Wires: 3
-
Amperage Rating: 20 A
-
Application: Commercial Buildings, Transportation Facilities, Municipal Buildings, Educational Facilities and Hospitals/Medical Buildings
-
Horsepower: 1 hp
-
NEMA Rating: NEMA 5-20R
-
Series: 8300-H
-
Standards/Approvals: ANSI C-73|CSA C22.2 No. 42 152105|NOM 057|UL Federal Spec WC-596 E13399|UL498HG E13399|UL 94 V-2 Flammability Rated|UL 94 V-0 Flammability Rated|NEMA WD-1|NEMA WD-6
-
Temperature Rating: -40 to 60 deg C
-
Terminal Type: Back/Side Wire
-
Country of Origin: MX
-
NEMA: 5-20R
-
Feature: Smooth Face
-
Device Type: Duplex Receptacle Outlet
-
Current Limiting: Full Rated Current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Grounding: Self-Grounding
-
Pole: 2
-
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
-
Wire: 3
-
Product ID: Markings are permanently marked on device
-
Screw Terminal Torque: 14-18 in-lbs
-
Terminal Accom.: 14-10 AWG
-
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
-
Termination: Back and Side Wire
-
Torque Range: 14-16 inch pounds
-
Operating Temperature: -40 degrees C
-
Body Material: Nylon
-
Clamp Nuts: Zinc-Plated Steel
-
Face Material: Nylon
-
Ground Clips: Brass
-
Grounding Screw: Brass
-
Line Contacts: Phosphor Bronze
-
Strap Material: Galvanized Steel with Riveted Ground Contacts
-
RoHS Compliant: True
-
Voltage Rating: 125V
-
Connection: Back and Side Wired
-
Phase: 1 Phase
-
Width: 1.51 in
-
Wire Size: 14-10
-
Dielectric Strength: 2000 (Min.)
-
Environmental Conditions: Flammability (Rated V-2 per UL94)
-
Manufacturer Item Status: Active
-
Brand Name: Leviton
-
UPC: 078477818909
-
GTIN: 00078477818909
-
Alternative Part Number: 7335581
-
Amperage Rating UOM: A
-
Horsepower UOM: hp
-
IDEA Index ID: 7335581
-
Temperature Rating UOM: deg C
-
Voltage Rating UOM: VAC
-
Mounting: Screw
-
Standard: UL Listed
-
Stock Code: 0215-9619
-
TC Connection: Back and Side Wired
-
Conductor Size: 14-10 AWG
-
Connection Type: Back and Side Wired
-
Number of Phases: 1 Phase
-
Termination Type: Back Wire,Side Wire
-
Flamability Class: Rated V-0 Per UL 94
-
Size: 46 H x 1.51 W x 1.18 D
-
Number of Outlets: 2
-
Item Type: Straight Blade;Duplex Outlet
-
Width UOM: Inch
-
Depth: 1.18
-
Depth UOM: Inch
-
Catalog Number: 8300-HI
-
Made in USA: No
-
Mount Type: Flush
-
Housing Color: Ivory
-
Overall Depth: 1.07 in
-
Wiring Method: Back, Side
-
Receptacle Type: Duplex
-
CSA C22.2 No. 42: File 152105
-
Horsepower Rating: 1 hp
-
Maximum Wire Size: 10 AWG
-
Minimum Wire Size: 14 AWG
-
NEMA Configuration: 5-20
-
UL Fed Spec WC-596: File E13399
-
Wire Connection Type: Screw Terminals
-
NEMA Enclosure Rating: Not Rated
-
Resistance Properties: Not Applicable
-
Wire Connection Types: Screw Terminals
-
Connection Orientation: Straight
-
Application Environment: Heavy-Duty Hospital Grade
-
Number of Poles & Wires: 2 Pole / 3 Wire
-
Key Resistance Properties: Standard Resistance
-
Includes Mounting Hardware: Yes
-
Amps - Plugs and Receptacles: 20 A
-
Item - Plugs and Receptacles: Duplex Receptacle Outlet
-
Color - Plugs and Receptacles: Ivory
-
Maximum Operating Temperature: 60 Degrees C
-
Minimum Operating Temperature: -40 Degrees C
-
NEMA Receptacle Configuration: 5-20R
-
Voltage - Plugs and Receptacles: 125VAC
-
Additional Electrical Protection: Standard Protection
-
Hazardous Location Specification: Not Applicable
-
Additional Electrical Protections: Standard Protection
-
Mount Hole Center-to-Center Height: 3.28 in
-
Outlet Type - Plugs and Receptacles: Duplex
-
Wiring Method - Plugs and Receptacles: Back and Side
-
ADI Part Number: LV-8300HI
-
Product Type: Receptacle
-
Current Rating: 20A
