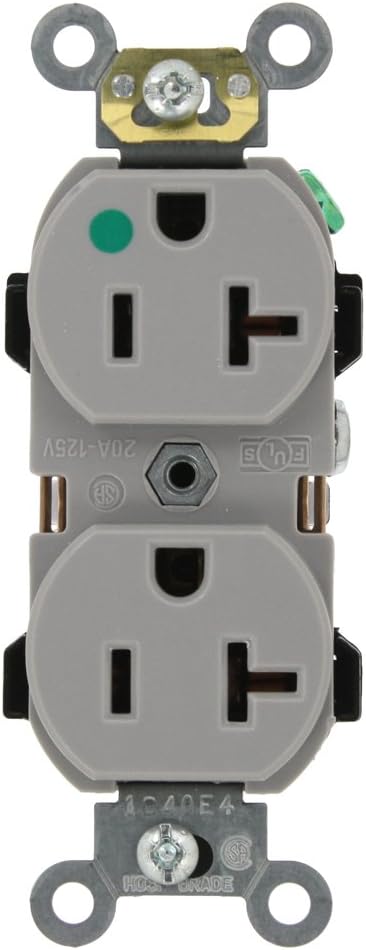

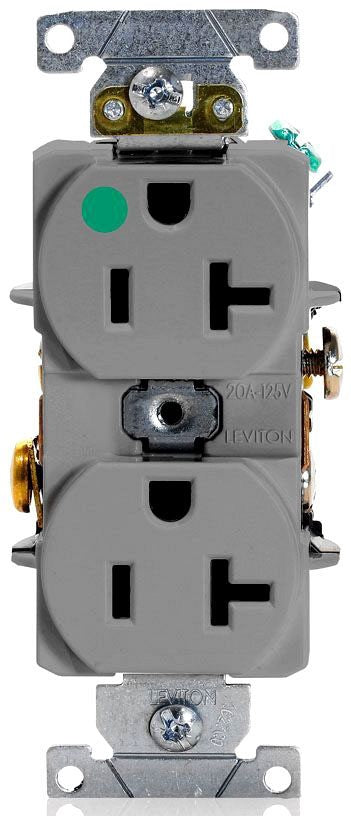

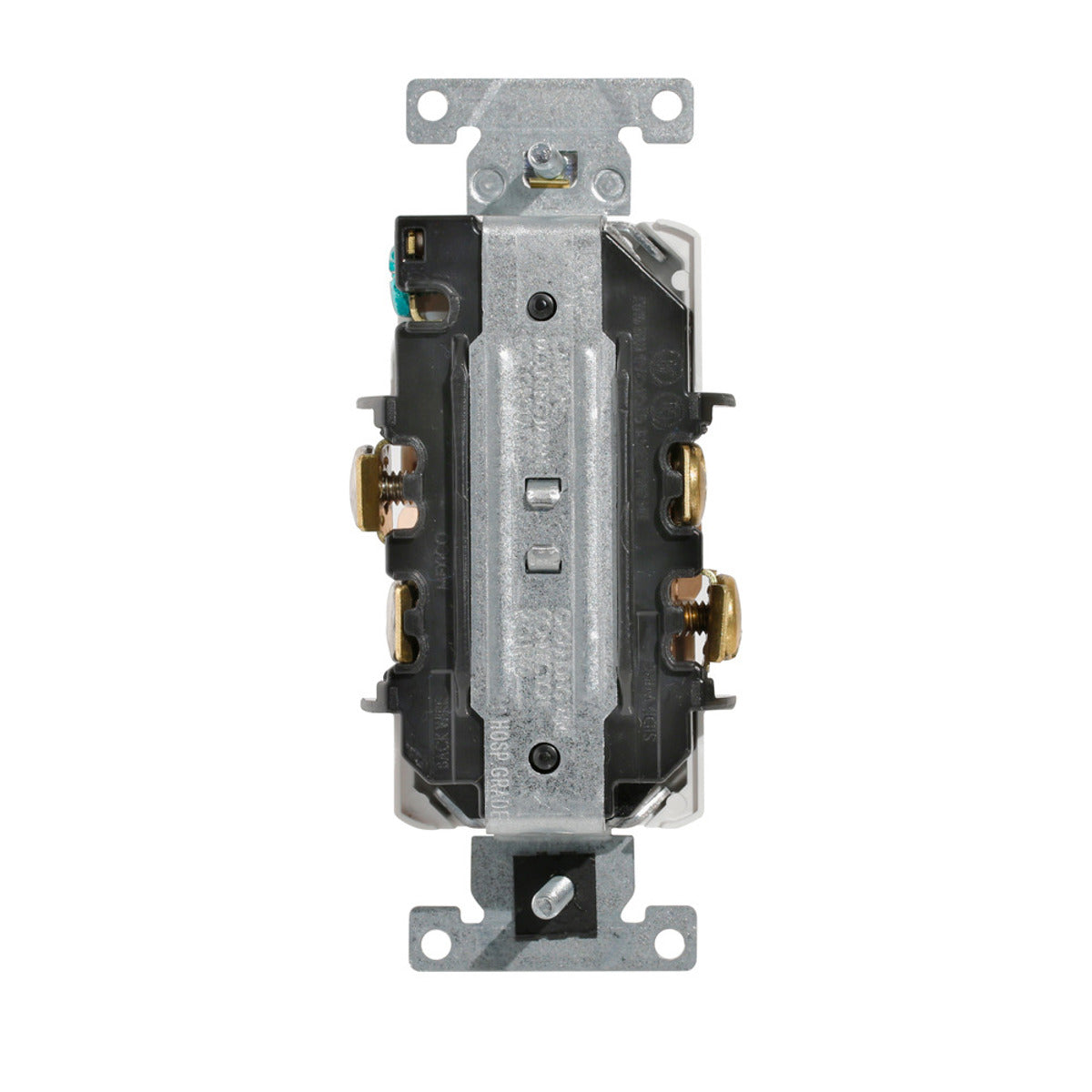

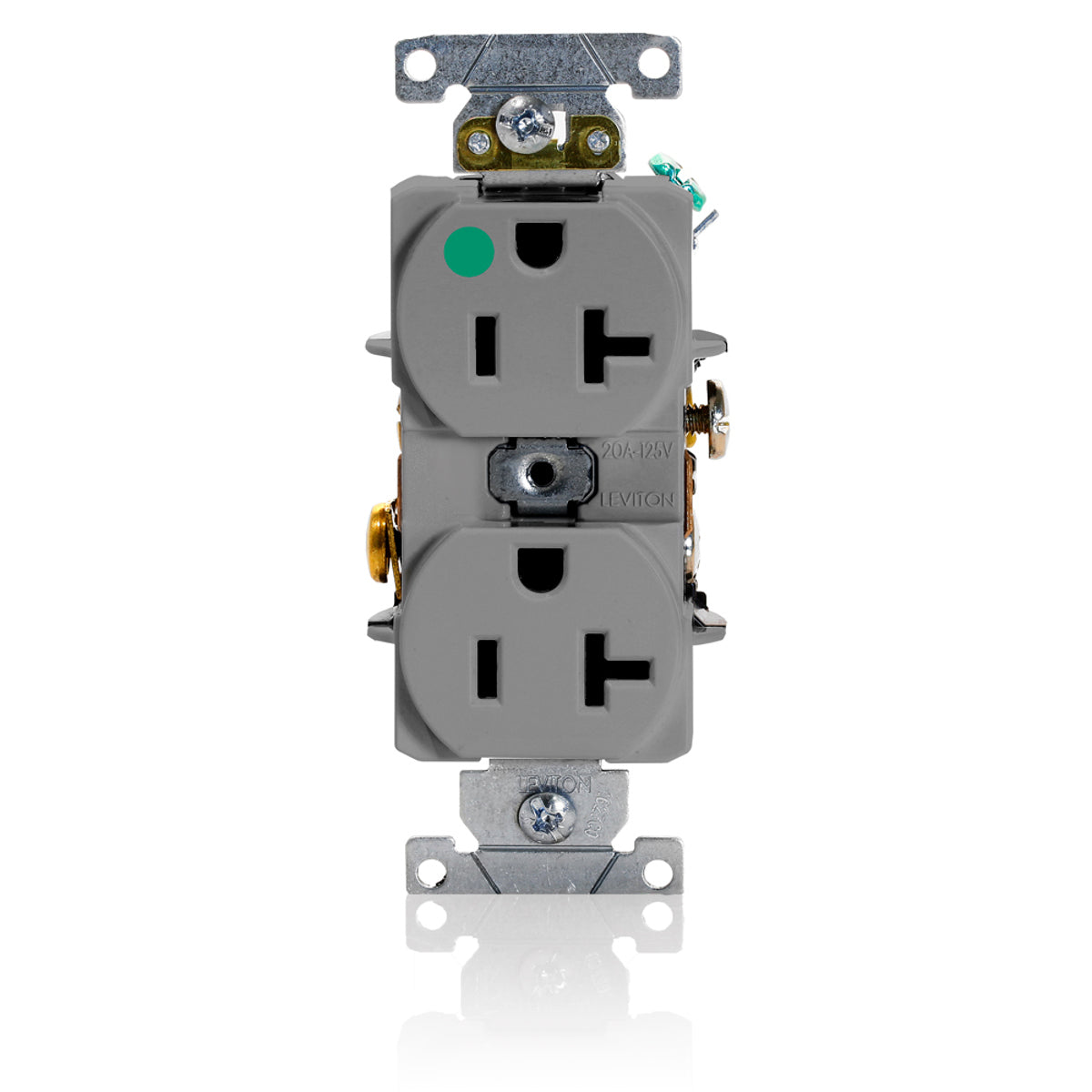

Leviton 8300-HGY Duplex Receptacle 20-Amp 125-Volt

Brand: LEVITON
SKU: 8300-HGY
Availability: In Stock

Ships same day if ordered by 12 pm
$30.83
$30.83
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Leviton 8300-HGY is a 20-Amp, 125-Volt heavy-duty hospital-grade duplex receptacle with a straight blade and self-grounding feature. Constructed with a slim body, this receptacle is suitable for commercial applications. It features back and side wiring options for versatile installation. Designed for durability and safety in demanding environments.

  • 20-Amp
  • 125-Volt
  • Heavy Duty Hospital Grade

Product Highlights

Heavy-duty, slim body, straight blade duplex receptacle for commercial applications. Offers back and side wiring.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 8300-HGY
  • Country of Origin: Mexico
Technical Specifications
Color
Gray
Voltage
125 VAC
Material
Thermoplastic
Certification
UL
NEMA
5-20R
Type
Duplex Outlet,Straight Blade
Brand
Leviton
Grade
Hospital
Torque
14 lb-in
Amperage
20 A
Standard
ANSI C-73
Grounding
Grounded
Sub Brand
Industrial Receptacles
Wire Size
14-10 AWG
Dielectric
2000 V
Horsepower
1 hp
Wire Count
3
Device Type
Duplex Receptacle Outlet
Applications
Commercial
Body Material
Nylon
Face Material
Nylon
Mounting Type
Wall Box
TC Connection
Back and Side Wired
Conductor Size
14-10 AWG
Connection Type
Back and Side Wired
Number of Poles
2
Number of Wires
3
Number of Phases
1 Phase
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Termination Type
Back Wire,Side Wire
Country of Origin
Mexico
Flamability Class
Rated V-2 Per UL94
Temperature Rating
-40 to 60 deg C
Dielectric Strength
2000 V Minimum
Operating Temperature
-40 00b0C to 60 00b0C
Poles
2
Wires
3
Amperage Rating
20 A
Enclosure
NEMA WD-1/WD-6
Terminal Type
Back/Side Wire
Manufacturer
LEVITON
Mounting
Wallbox
Voltage Rating
125V AC
Application
Commercial Applications
Country Of Origin
MX
NEMA Rating
NEMA 5-20R
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Wiring Method
Back, Side
Number of Outlets
2
Phase
Single
ANSI
C-73
GFCI
No
Item
Receptacle
Pole
2
Wire
3
UL498HG
File E13399
Feature 4
Smooth Face
Grounding Screw
Brass
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, RoHS Compliant, UL 498HG File E13399, UL Federal Specification WC-596 File E13399
Clamp Nuts
Zinc-Plated Steel
Cover Type
No Cover
Mount Type
Flush
Description
Smooth Face
Termination
Back or Side Wire
Ground Clips
Brass-Plated
Sub-Category
Duplex Receptacles
Torque Range
14-16 inch pounds
Strap Material
Galvanized Steel with Riveted Ground Contacts
Voltage Rating UOM
VAC
Receptacle Type
Duplex
Terminal Accom.
14-10 AWG
Terminal Screws
Brass 10-32
CSA C22.2 No. 42
File 152105
Contact Material
Phosphor Bronze
Current Limiting
Full Rated Current
Face Plate Width
1.31 in
Housing Material
Nylon
Face Plate Height
2.75 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Dielectric Voltage
Withstands 2000V per UL498
UL Fed Spec WC-596
File E13399
Wire Connection Type
Screw Terminals
NEMA Enclosure Rating
Not Rated
Screw Terminal Torque
14-18 in-lbs
Wire Connection Types
Screw Terminals
Connection Orientation
Straight
Application Environment
Heavy-Duty Hospital Grade
Number of Poles & Wires
2 Pole / 3 Wire
Key Resistance Properties
Standard Resistance
UL 94 Flammability Rating
V-2
Includes Mounting Hardware
Yes
Amps - Plugs and Receptacles
20 A
Item - Plugs and Receptacles
Duplex Receptacle Outlet
Color - Plugs and Receptacles
Gray
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
NEMA Receptacle Configuration
5-20R
Voltage - Plugs and Receptacles
125VAC
Additional Electrical Protection
Standard Protection
Hazardous Location Specification
Not Applicable
Additional Electrical Protections
Standard Protection
Mount Hole Center-to-Center Height
3.28 in
Outlet Type - Plugs and Receptacles
Duplex
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
RoHS Compliant
Yes
NOM
057
Yoke
Zinc-Plated Steel
AC Horsepower Ratings At Rated Voltage
1 HP
Line Contacts
Brass Triple-Wipe
Product ID
Ratings are permanently marked on device
Housing Color
Gray
Overall Depth
1.07 in
Current Rating
20 A
Horsepower Rating
1 hp
Resistance Properties
Not Applicable
Catalog Number
8300-HGY
Width
1.51
Depth
1.18
Stripped Catalog Number
8300HGY
Enclosure Rating
NEMA WD-1/WD-6
