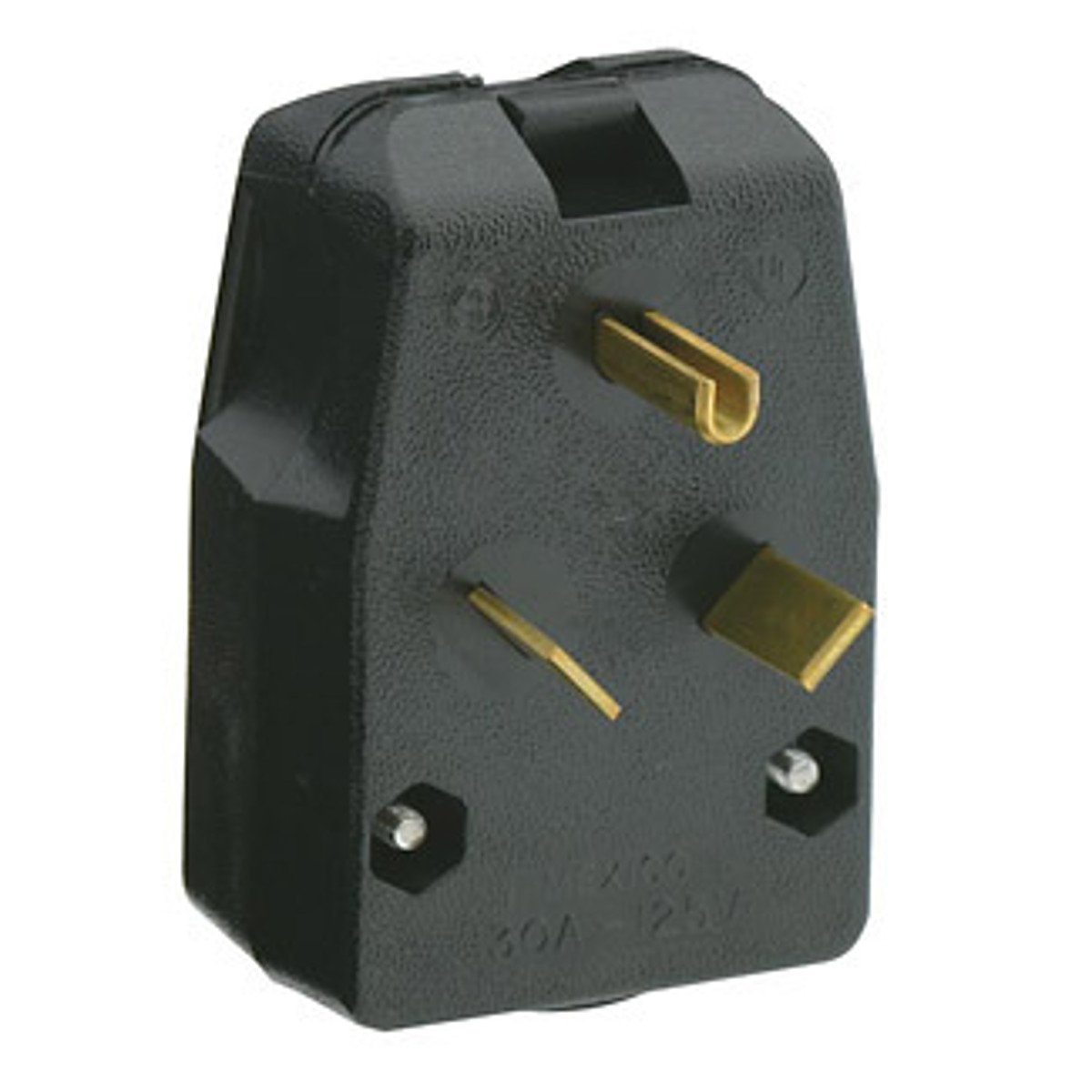

Leviton 830-E Angle Grounding Straight Blade Plug 125 VAC 30 A 2 Poles 3 Wires NEMA TT-30P

Product Description

Leviton 830-E is an angle grounding straight blade plug rated for 125 VAC and 30 A. It features two poles and three wires, making it suitable for various electrical applications. This device is designed for industrial-grade settings and can handle a maximum of two horsepower. It's constructed with thermoplastic material that can withstand temperatures between negative forty and sixty degrees Celsius.

• Rated for 125 VAC and 30 A
• NEMA TT-30P compatible
• Industrial grade for heavy-duty applications

Product Highlights

The Leviton 830-E plug is ideal for power connectivity in both indoor and outdoor settings. The moisture and chemical resistance ensures durability in challenging environments.

Product Information

Standard Information

• Brand: Leviton
• MPN: 830-E

Technical Specifications

• Voltage Rating: 125 VAC
• Amperage Rating: 30 A
• Number of Poles: 2
• Number of Wires: 3
• Horsepower: 2 hp
• NEMA Rating: NEMA TT-30P
• Material: Thermoplastic
• Temperature Rating: -40 to 60 deg C
• Cord Diameter: 0.687 to 0.875 in
