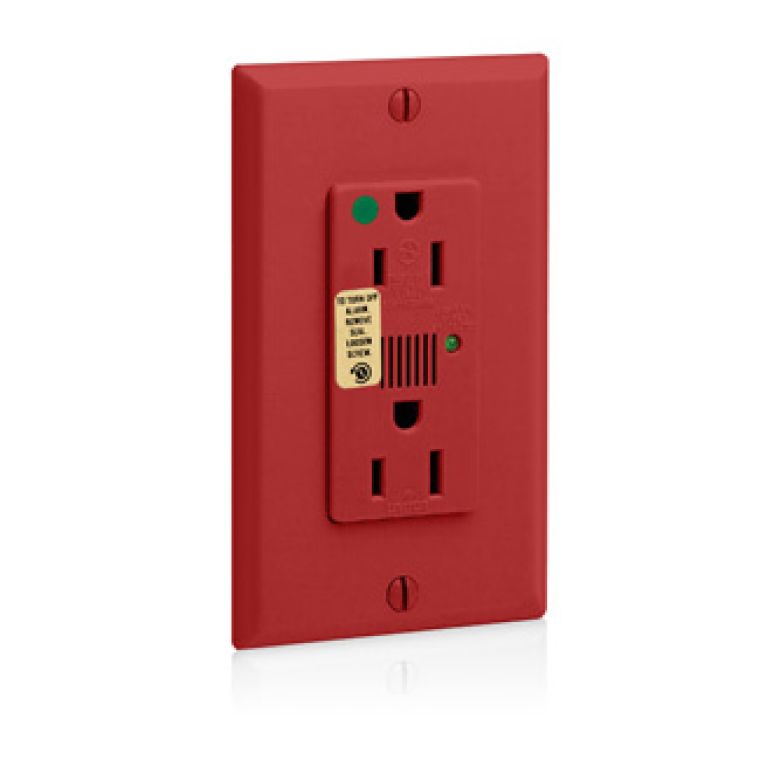

Leviton 8280-R hg Surge Receptacle With Alarm And Led 15 A

Product Description

The Leviton 8280-R self-grounding surge protective receptacle operates at 125 VAC and 15 A. It features an audible alarm and indicator light, providing visual and auditory alerts. Designed with back and side wired connections for surface mounting. It is suitable for hospital applications.

• Tamper resistant versions have a shutter mechanism that prevents incidental contact with energized contacts
• Indicator light provides visual indication that equipment is being protected
• EMI/RFI noise filtering

Product Highlights

Offers point of use protection for up to 18000 A of surge current total with a 720 J energy rating and 27 kA peak surge current.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 8280-R
• Country of Origin: Mexico

Technical Specifications

• Amperage Rating: 15 A
• Color: Red
• Connection: Back/Side Wired
• Environmental Conditions: -40 to 60 deg C Operating Temperature, UL 94 V-2 Flammability Rated
• Material: Polycarbonate
• Mounting: Surface
• Operating Temperature: -40 to 60 deg C
• Outlet: Straight Blade Receptacle
• Short Circuit Current Rating: 5 kA
• Type: 2-Pole 3-Wire Type 3-Duplex Self-Grounding
• Type of Indicators: Audible Alarm/Light
• Voltage Rating: 125 VAC
• Brand Part Number: 8280-R
• Number of Gangs: 1
• Voltage: 125 V
• Current Rating: 15 A
• Model: 8280-R
• Number of Poles: 2
• Nema: 5-15R
• Amperage: 15 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Wire: 3
• Flammability: Rated V-2 per UL 94
• Body Material: Nylon
• Clamp Nuts: Zinc-Plated Steel
• Face Material: Nylon
• Grounding Screw: Brass-Plated Steel
• Line Contacts: Brass Triple-Wipe
• Shutter Mechanism: Delrin® Acetal
• Terminal Screws: Brass-Plated Steel
• Yoke: Zinc-Plated Steel
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back or Side Wire
• Torque Range: 14-16 inch pounds
• Diagnostics: Indicator Light & Audible Alarm
• Joules Rating: 720
• MCOV: 150V rms
• Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
• Noise Rejection: -30dB at 500kHz-30MHz
• Nominal Discharge Current Rating: 3kA
• VPR: L-N: 600V, L-G: 700V, N-G: 600V
• Device Type: Duplex Receptacle Outlet
• Function: Surge Protective
• Grade: Heavy-Duty Hospital Grade
• NEMA: WD-6
• ANSI: C-73
• Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
• NOM: 057
• UL498HG: File E13399
