Leviton 8280-I 15 Amp 125 Volt NEMA 5-15R Receptacle

Product Description

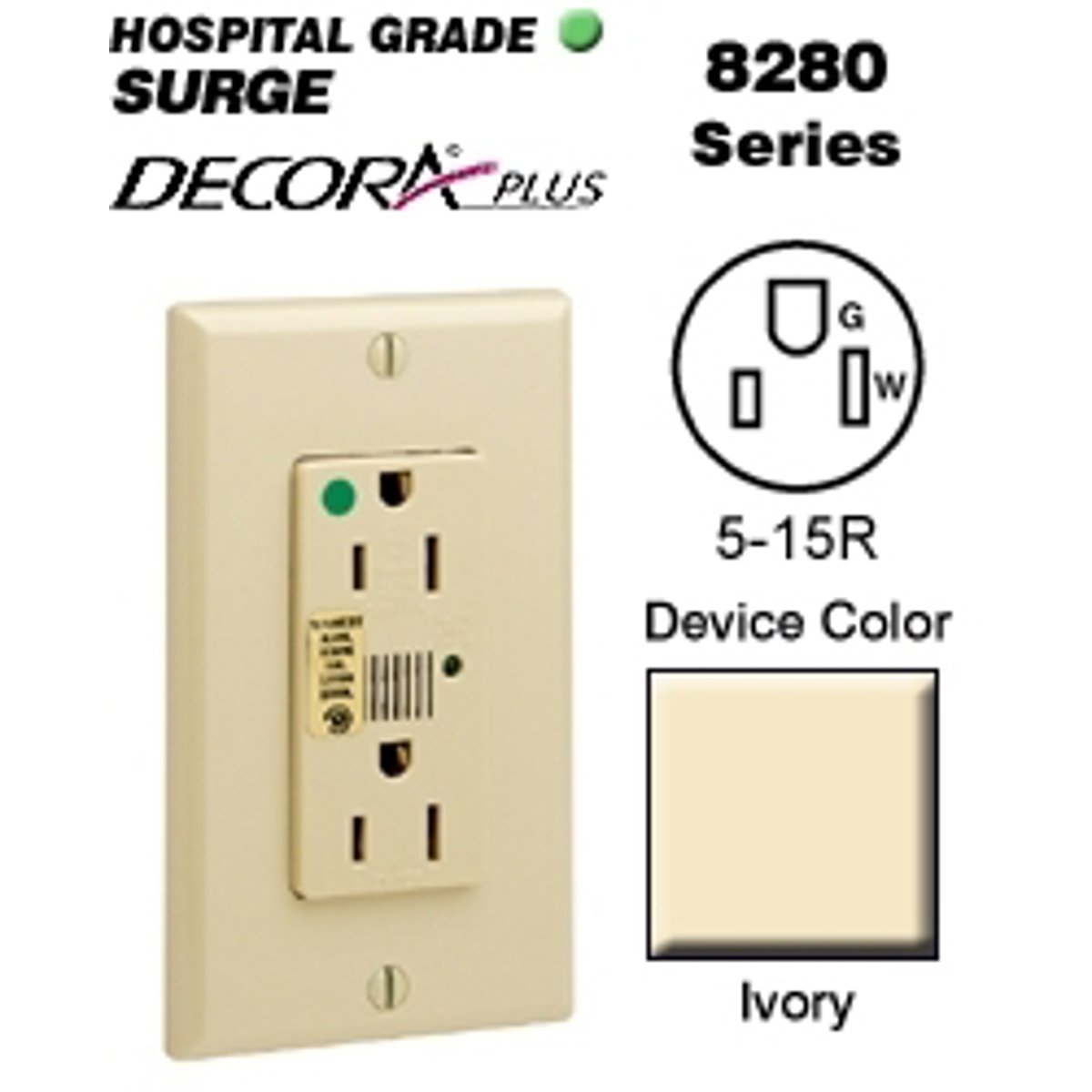

The Leviton 8280-I is a 15 Amp, 125 Volt straight blade surge protective receptacle. It has a NEMA 5-15R configuration suitable for hospital environments. This duplex receptacle features self-grounding functionality and comes with an indicator light and audible alarm for enhanced safety.

• Self-grounding with a sturdy construction
• Compatible with standard hospital-grade installations
• Back and side wired connections for easy installation

Product Highlights

Designed for hospital applications, this receptacle provides essential surge protection along with visual and audible alerts.

Product Information

Standard Information

• Brand: Leviton
• MPN: 8280-I

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Material: Polycarbonate
• Connection Type: Back Wired; Side Wired
• Size: 3.81 inches H x 1.7 inches W x 1.47 inches D
• Operating Temperature: -40 to +60 degrees C
• Short Circuit Rating: 5 kA
• Environmental Conditions: UL 94 V-2 Rated
• Mounting Type: Box or Surface
• Type of Indicators: Indicator Light; Audible Alarm
• Standards: NEMA WD-1, UL Listed, ANSI C73
