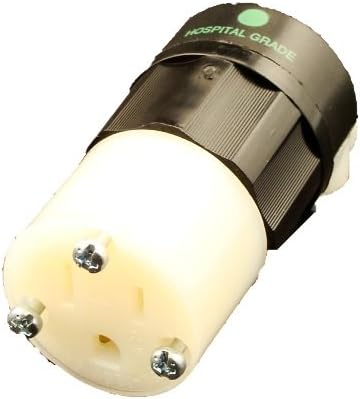

Leviton 8219-C Connector Straight Blade Grounding Hospital Grade

Product Description

The Leviton 8219-C is a 15 Amp, 125 Volt connector with a straight blade, designed for grounding and hospital-grade applications. It is constructed from rugged nylon that resists impact, corrosion, and chemicals. This connector ensures dependable, long-term performance in demanding healthcare environments.

• Features a unique cord clamp that accepts a wide range of cord sizes from 0.245 to 0.7 inches.
• Constructed with solid, one-piece brass contacts for enhanced conductivity.
• Compliant with NEMA 5-15R standards.

Product Highlights

This straight blade connector is ideal for hospital settings, offering a robust and reliable connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 8219-C
• Country of Origin: Mexico

Technical Specifications

• Voltage: 125 VAC
• Certification: NEMA
• Connector Type: Clamp
• Grade: Hospital
• Material: Nylon
• NEMA Rating: NEMA 5-15R
• Cord Diameter: 0.245 to 0.7 in
• Terminal Type: Screw
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 deg C
• Manufacturer: LEVITON
• Sub Brand: Black & White
• Country of Origin: Mexico
• Made in USA: No
• Application: Hospitals
• Standard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399);UL Fed Spec WC-596 (File E13393)
• UPC: 078477795361
• GTIN: 00078477795361
• Item Type: Connector
• Environmental Conditions: Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
• Wire Size: 18-10 AWG (Terminal Accommodation);0.245-0.700 IN (Cord Grip Range)
• Amperage: 15 Amps
• Number Of Poles: 2
• No. of wires: 3
• Plug Format: Type B
• Product Grade: Hospital
• Specification Met: NEMA
• Model: Leviton 8219-C
• Product: Plugs
• Nema: 5-15R
• RoHS Compliant: Yes
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 60°C
• Assembly Screws: Steel, Zinc Plated
• Back Cover: Thermoplastic
• Blades/Contacts: Solid Brass
• Body Material: Super Tough Nylon
• Clamp Insert: Nylon
• Cord-Clamp: Nylon
• Terminal Screws: Brass
• Wire Module: Nylon
• Cord Range: .245 - .700
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Grounding
• Pole: 2
• Product ID: Ratings and NEMA I.D. permanently marked on device
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Terminal Accom.: 18-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, White-Neutral
• Torque Range: 10-14 in-lbs
• Wire: 3
• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NEMA: WD-6
• NOM: 057
• UL 498: File E13399
• UL Fed Spec WC-596: File E13393
