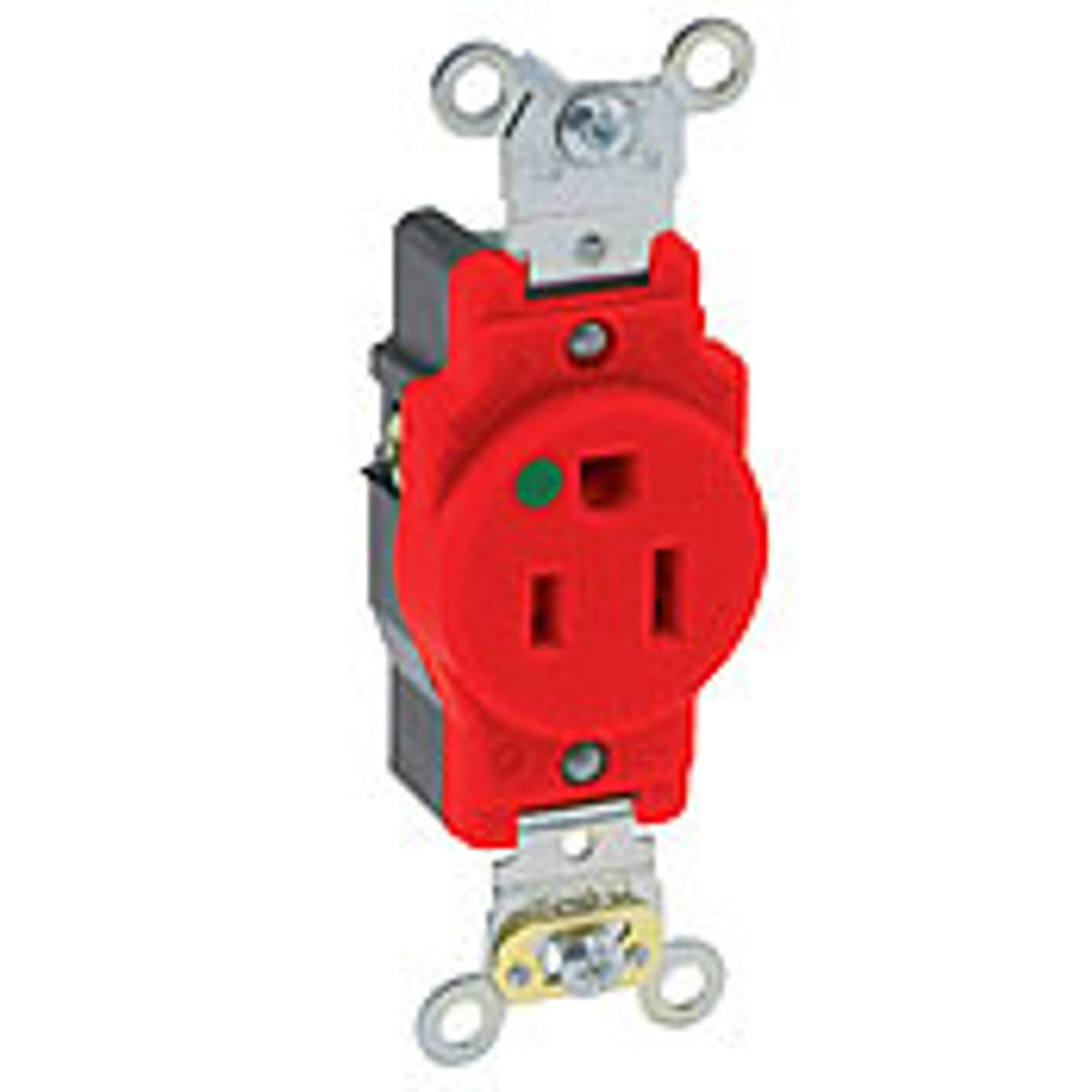

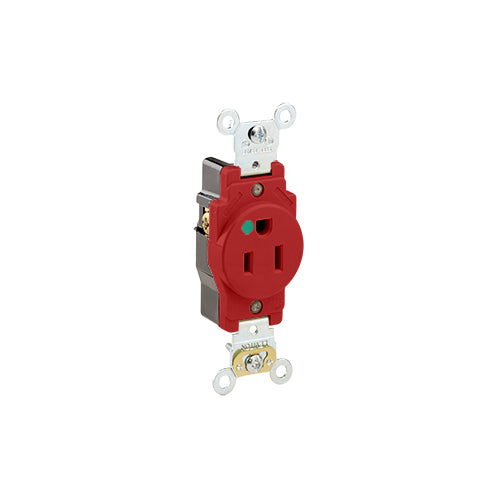

Leviton 8210-R Single Receptacle 15 Amp 125 Volt

Product Description

The LEVITON 8210-R is a straight blade, extra heavy-duty hospital-grade single receptacle. Rated for 15 amps and 125 volts, it is self-grounding and suitable for commercial applications. This receptacle features back and side wiring options and is constructed from durable nylon.

• Rated for 15 Amps and 125 Volts
• Extra heavy-duty hospital grade receptacle
• Features back and side wiring options

Product Highlights

This receptacle is ideal for high-abuse environments such as healthcare facilities, manufacturing plants, and schools.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 8210-R
• Country of Origin: Please Contact Customer Service

Technical Specifications

• Catalog Number: 8210-R
• Manufacturer: LEVITON
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 15 A
• Application: Commercial
• Color: Red
• Connection Type: Back and Side Wired
• Material: Nylon
• Mounting: Wall
• NEMA Rating: 5-15R
• Number of Outlets: 1
• Number of Poles: 2
• Number of Wires: 3
• Phase: 1
• Standard: NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Fed Spec WC-596 (File E13399);UL Listed 498 HG (File E13399)
• UPC: 078477263648
• GTIN: 00078477263648
• Item Type: Straight Blade;Single Outlet
• Width: 1.53
• Height: 1.77
• Depth: 1.11
• Size: 46 H x 1.53 W x 1.11 D
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Temperature Rating: -40 to +60 DEG C
• Voltage Rating: 125 VAC
• Wire Size: 14-10 AWG
• Enclosure: NEMA WD-1/WD-6
• Grade: Heavy-Duty Hospital Grade
• Horsepower: 1/2 hp
• Terminal Type: Back/Side Wire
• Type: Extra Heavy Duty
• Horsepower Rating: 1/2 HP
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Wire: 3
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40 00b0C to 60 00b0C
• Body Material: Nylon
• Clamp Nuts: Zinc-Plated Steel
• Face Material: Nylon
• Ground Clips: Brass
• Grounding Screw: Plated Steel
• Line Contacts: Phosphor Bronze
• Strap Material: Zinc-Plated Steel
• Terminal Screws: Plated Brass
• Product ID: Markings are permanently marked on device
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back or Side Wire
• Torque Range: 14-16 inch pounds
• Device Type: Single Receptacle Outlet
• Feature 4: Smooth Face
• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NOM: 057
• RoHS: Non-Compliant
• UL Fed Spec WC-596: File E13399
• UL498HG: File E13399
• Rated Voltage: 125V
• AWG Range: 14 - 10 AWG
• No. of Wires: 3
• Color Family: Red
• No. of Poles: 2
• UNSPSC: 39121406
• Volts AC: 120
• Amps: 15
• NEMA Configuration: 5-15R
• Brand Name: Leviton
• Brand Part Number: 8210-R
