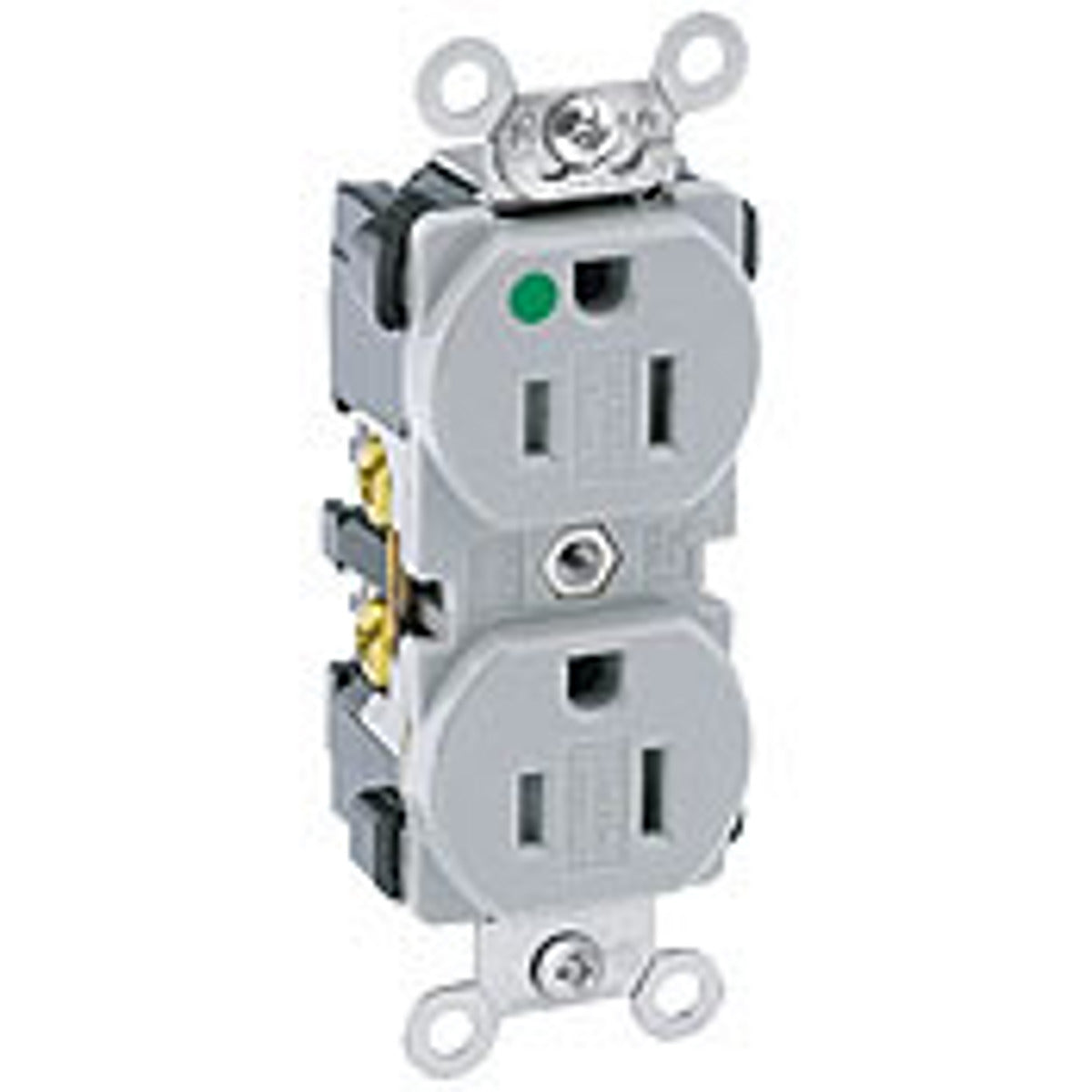

Leviton 8200-SGI 15-Amp, 125 Volt, Extra Heavy Duty Hospital Grade, Duplex Receptacle, Tamper-Resistant, Straight Blade, Self Grounding

Product Description

The LEVITON 8200-SGI is a 15-Amp, 125 Volt, Extra Heavy Duty Hospital Grade, Duplex Receptacle with a Tamper-Resistant, Straight Blade, and Self Grounding design. This receptacle is suitable for use in health care facilities, manufacturing plants and schools. It features back and side wiring options and is impact resistant.

• Tamper-Resistant and Self-Grounding
• Extra Heavy-Duty Hospital Grade
• Back and Side Wire Connection

Product Highlights

This Leviton duplex receptacle is designed for durability and safety in demanding environments. It offers reliable performance with its robust construction and tamper-resistant features.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 8200-SGI
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 8200-SGI
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 15 A
• Application: Hospital
• Color: Ivory
• Connection: Back and Side Wired
• Material: Thermoplastic
• Mounting: Wall
• NEMA Rating: 5-15R
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wires: 3
• Phase: 1
• Standard: UL Listed and CSA Certified
• UPC: 078477029947
• GTIN: 00078477029947
• Item Type: Straight Blade;Duplex Outlet
• Width: 1.55 Inch
• Depth: 1.21 Inch
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Temperature Rating: -40 to +60 DEG C
• Voltage Rating: 125 VAC
• Wire Size: 14-10 AWG
• Cross Reference Products: HBL8200SGIA
• ECCN: EAR99
• UNSPSC: 39121406
• Grade: Hospital, Extra Heavy Duty
• Ground Type: Self Grounding
• Wiring: 2-Pole 3-Wire
• Horsepower: 1/2 hp
• Terminal Type: Back/Side Wire
• Type: 1-Phase Duplex Extra Heavy Duty Tamper Resistant
• Approval: UL 498, CSA C22.2, NOM 057
• Configuration: 5-15R
• Constructional Feature: Impact Resistant
• Manufacturer Name: Leviton
• PDW ID: ECL342122
• Product UPC: 07847702994
• HP: 1/2 hp
• ANSI: C-73
• GFCI: No
• Item: Receptacle
• NEMA: WD-1 & WD-6
• Pole: 2
• Wire: 3
• Feature: Tamper-Resistant|Smooth Face
• UL498HG: File E13399
• Voltage: 125 VAC
• Amperage: 15 A
• Grounding: Grounded
• Polarized: Yes
• Standards: ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, RoHS Compliant, UL 498HG File E13399, UL Federal Specification WC-596 File E13399
• Clamp Nuts: Zinc-Plated Steel
• Cover Type: No Cover
• Mount Type: Flush
• Description: Smooth Face
• Device Type: Duplex Receptacle Outlet
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back or Side Wire
• Flammability: Rated V-2 per UL 94
• Ground Clips: Nickel-Plated Brass
• Sub-Category: Duplex Receptacles
• Torque Range: 14-16 inch pounds
• Body Material: Nylon
• Face Material: Nylon
• Housing Color: Ivory
• Line Contacts: Nickel Plated Phosphor Bronze
• Overall Depth: 1.11 in
• Current Rating: 15 A
• Strap Material: Nickel Plated Steel
• Grounding Screw: Plated Steel
• Receptacle Type: Duplex
• Terminal Accom.: 14-10 AWG
• Terminal Screws: Plated Brass
• CSA C22.2 No. 42: File 152105
• Contact Material: Nickel-Plated Phosphor Bronze
• Current Limiting: Full Rated Current
• Face Plate Width: 1.53 in
• Housing Material: Nylon
• Tamper Resistant: Yes
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Face Plate Height: 2.78 in
• Horsepower Rating: 1/2 hp
• Maximum Wire Size: 10 AWG
• Minimum Wire Size: 14 AWG
• Shutter Mechanism: Delrin® Acetal
• Dielectric Voltage: Withstands 2000V per UL498
• UL Fed Spec WC-596: File E13399
• Wire Connection Type: Screw Terminals
• NEMA Enclosure Rating: Not Rated
• Operating Temperature: -40°C to 60°C
• Resistance Properties: Tamper Resistant
• Screw Terminal Torque: 14-18 in-lbs
• Wire Connection Types: Screw Terminals
• Connection Orientation: Straight
• Application Environment: Extra Heavy-Duty Hospital Grade
• Number of Poles & Wires: 2 Pole / 3 Wire
• Key Resistance Properties: Tamper Resistant
• UL 94 Flammability Rating: V-2
• Includes Mounting Hardware: Yes
• Amps - Plugs and Receptacles: 15 A
• Item - Plugs and Receptacles: Duplex Receptacle Outlet
• Color - Plugs and Receptacles: Ivory
• Maximum Operating Temperature: 60 Degrees C
• Minimum Operating Temperature: -40 Degrees C
• NEMA Receptacle Configuration: 5-15R
• Voltage - Plugs and Receptacles: 125VAC
• Additional Electrical Protection: Standard Protection
• Hazardous Location Specification: Not Applicable
• Additional Electrical Protections: Standard Protection
• Mount Hole Center-to-Center Height: 3.28 in
• Outlet Type - Plugs and Receptacles: Duplex
• Country of Origin (subject to change): Mexico
• Wiring Method - Plugs and Receptacles: Back and Side
• NEMA Receptacle Configuration - Plugs and Receptacles: 5-15R
• RoHS Compliant: Yes
• NOM: 057
• Volts (VAC): 125
• Height (In.): 4.06
• Width (In.): 1.56
• Depth (In.): 0.87
• Compatible Devices: All
• Total Power Outlets: 2
