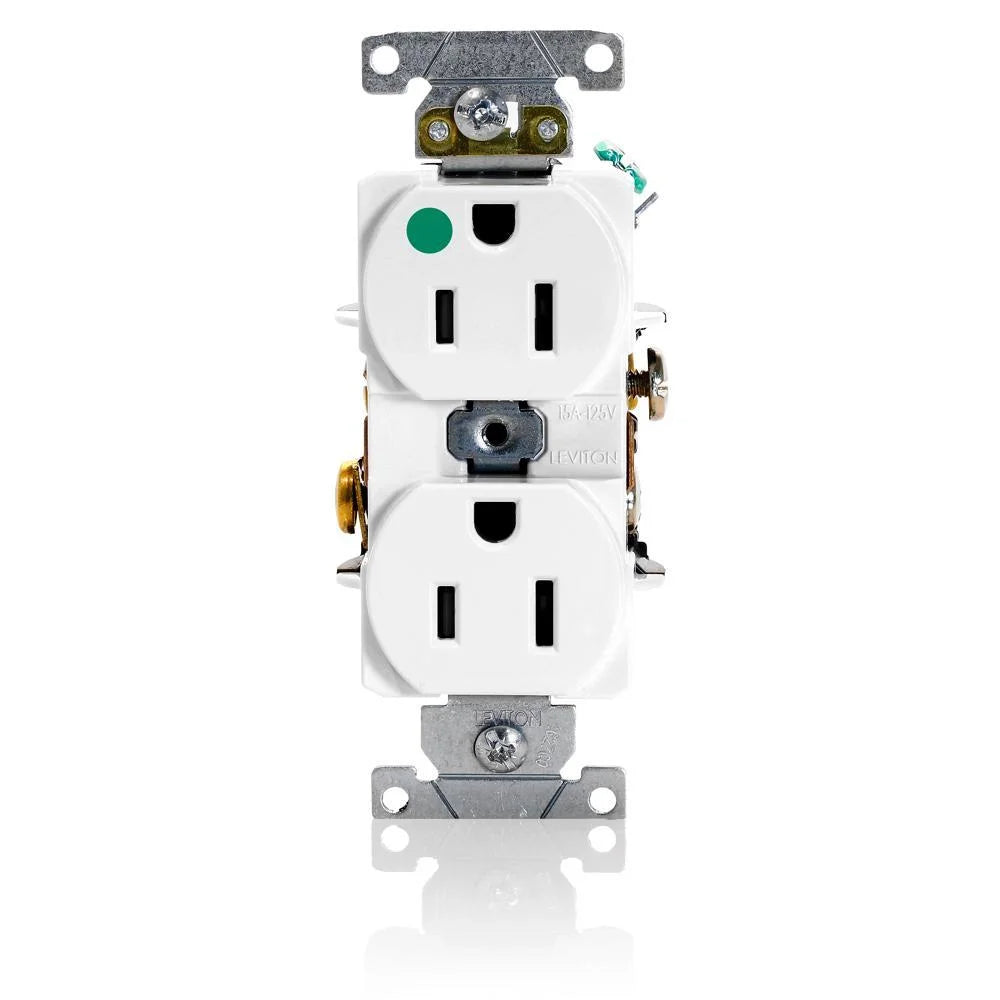

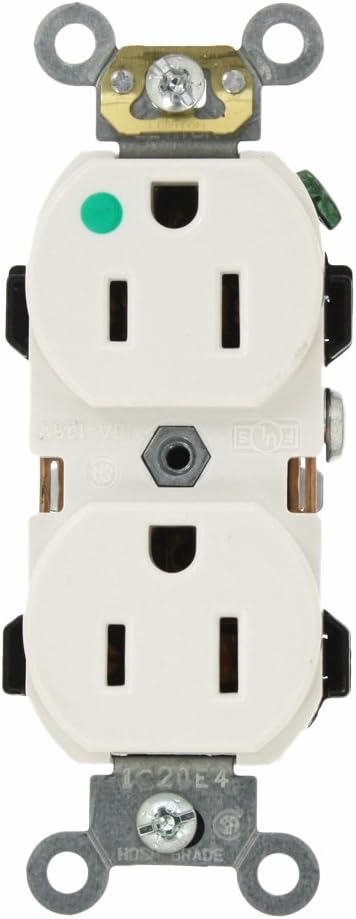

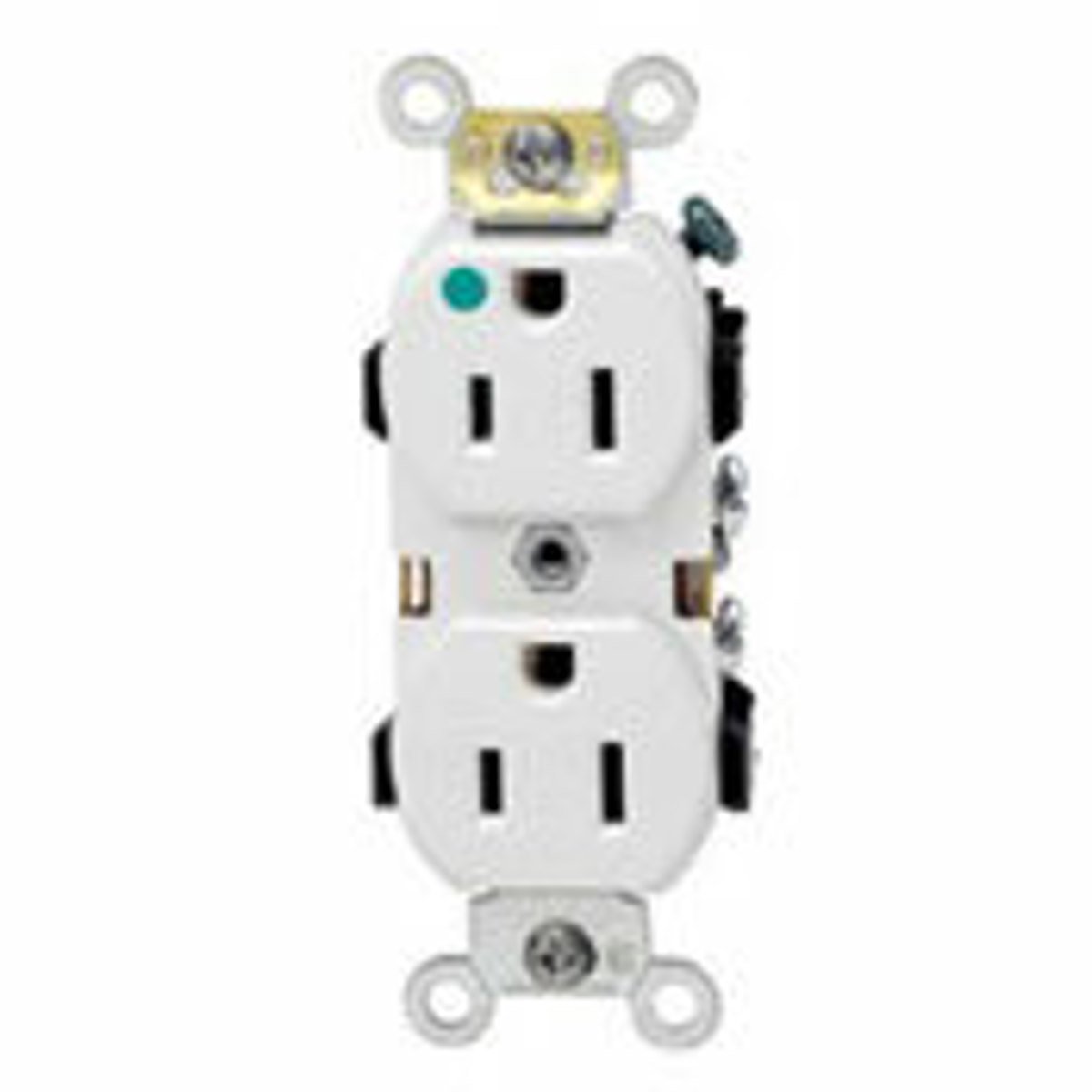

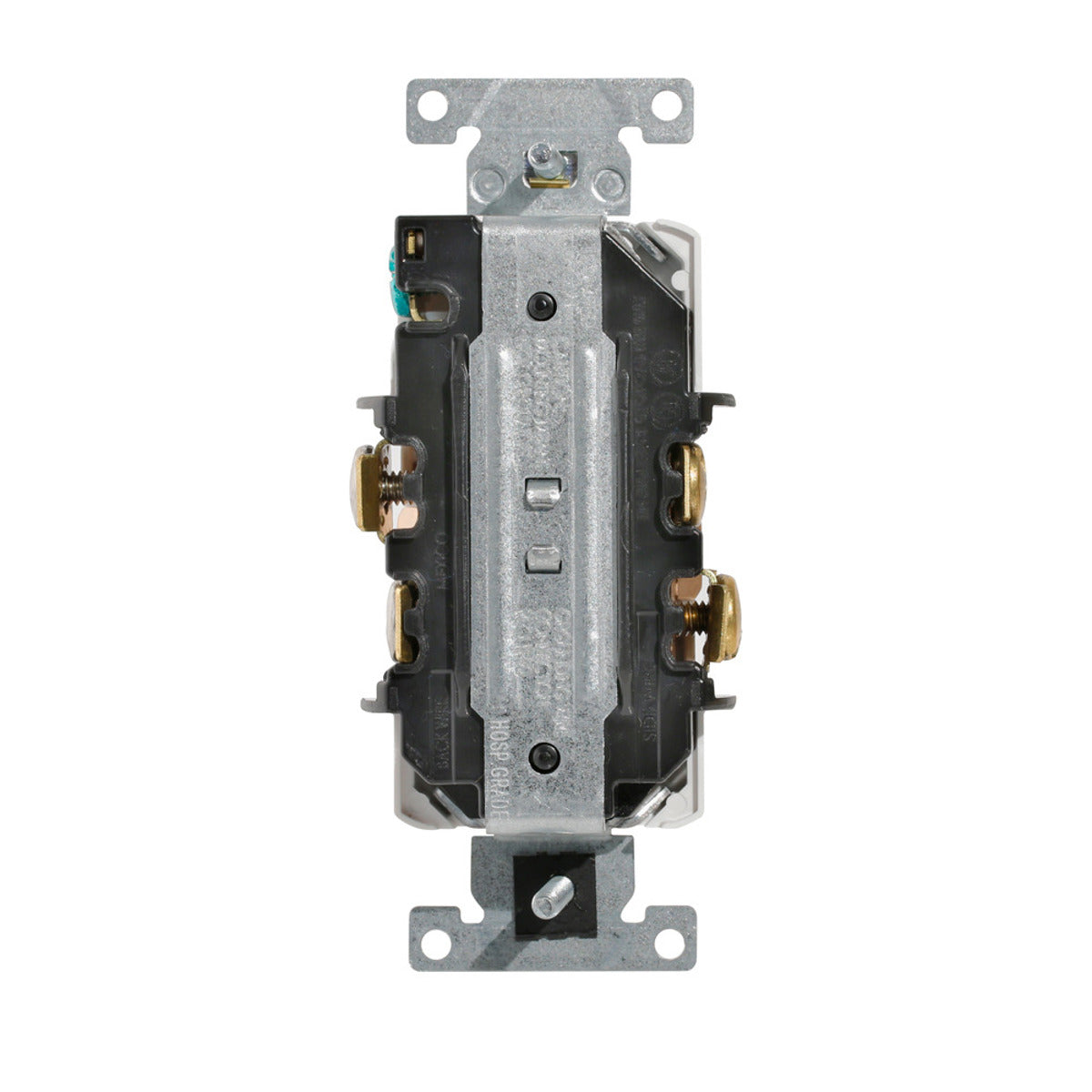

Leviton 8200-HW Duplex Receptacle, Heavy Duty Hospital Grade, 15 Amp, 125 Volt

Product Description

The Leviton 8200-HW is a 15 Amp, 125 Volt, heavy-duty hospital-grade duplex receptacle. This straight blade receptacle is self-grounding and features back and side wiring options. Constructed with an impact-resistant thermoplastic nylon cover and body, it ensures durability and longevity in commercial applications.

• Heavy Duty Hospital Grade
• Straight Blade
• Self Grounding

Product Highlights

Ideal for health care facilities, manufacturing plants, and schools, this receptacle provides a safe and reliable power connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 8200-HW
• Country of Origin: Mexico

Technical Specifications

• Color: White
• Voltage: 125 VAC
• Material: Thermoplastic
• Certification: UL
• Batteries Included?: No
• Batteries Required?: No
• Included Components: 8200-HW
• Catalog Number: 8200-HW
• Manufacturer: Leviton
• Brand: Leviton
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 15 A
• Application: Commercial
• Connection: Back and Side Wired
• Mounting: Wall
• NEMA Rating: 5-15R
• Number of Outlets: 2
• Number of Poles: 2
• Number of Wires: 3
• Phase: 1
• Standard: UL Listed and CSA Certified
• UPC: 078477818862
• GTIN: 00078477818862
• Item Type: Straight Blade;Duplex Outlet
• Environmental Conditions: Flammability (Rated V-2 per UL94)
• Temperature Rating: -40 to +60 DEG C
• Wire Size: 14-10 AWG
• Amperage: 15 A
• Poles: 2
• Wires: 3
• Type: Heavy Duty
• Enclosure: NEMA WD-1/WD-6
• Grade: Hospital
• Horsepower: 1/2 hp
• Terminal Type: Back/Side Wire
• Voltage Rating: 125
• Manufacturer Item Status: Active
• Manufacturer Name: Leviton
• Country: USA|Canada
• Country Of Origin: MX
• IDEA Index ID: 7335551
• Number Of Poles: 2
• Number Of Wires: 3
• Volts (V AC): 125
• Wiring: 2-Pole 3-Wire
• Grounding: Self-Grounding
• Termination: Back and Side Wired
• Height (In.): 4.06
• Width (In.): 1.56
• Depth (In.): 0.87
