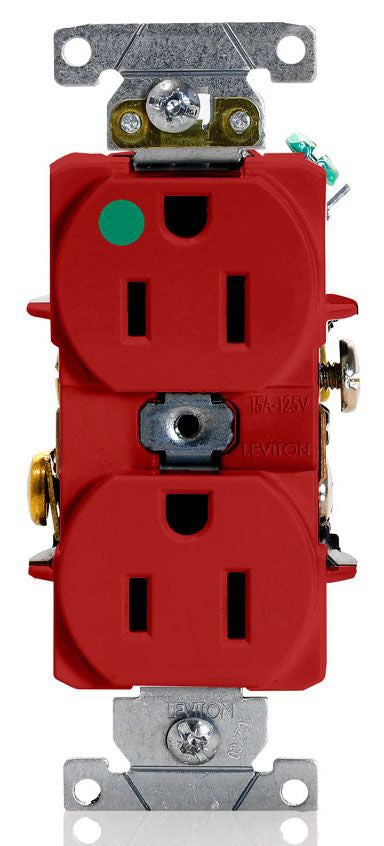

Leviton 8200-HR Hospital Grade Receptacle 15A 125V

Product Description

The LEVITON 8200-HR is a hospital grade duplex receptacle rated for 15 amps at 125 volts. It is designed for use in patient care areas and other environments where a higher standard of electrical connection reliability is required. Hospital grade receptacles meet strict construction and testing requirements to reduce the risk of accidental disconnection and to withstand repeated plug insertion cycles. Licensed electricians install this device in wall boxes as part of branch circuit wiring in healthcare facilities and similarly demanding commercial applications.

The 8200-HR is suited for patient care vicinity outlets in hospitals, clinics, surgical centers, and long-term care facilities. It is also used in laboratories, clean rooms, and other commercial settings where a robust, code-compliant receptacle is specified. The device fits a standard single-gang wall box and accepts NEMA 5-15 plugs.

Key Features

• Hospital grade construction meets demanding insertion and withdrawal cycle requirements
• Rated 15 amps at 125 volts for standard branch circuit use
• NEMA 5-15R configuration accepts two-pole, three-wire grounding plugs
• Duplex outlet configuration provides two receptacle positions in a single device
• Designed for patient care area compliance in healthcare construction

Compatibility

Designed as an OEM-style hospital grade replacement receptacle for standard single-gang wall box installations on 15-amp, 125-volt branch circuits.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify the absence of voltage with a meter before beginning work. Secure the device firmly in the wall box and ensure the grounding conductor is properly terminated. In patient care areas, verify that the installation meets the requirements of NEC Article 517.

Technical Specifications

• Amperage: 15 amps
• Voltage: 125 volts
• Grade: Hospital Grade
• Configuration: NEMA 5-15R Duplex
• Package Dimensions (L x W x H): 12.8 inches x 5.1 inches x 8.5 inches
• Package Weight: 10.1 pounds
• UPC: 07847781888

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 8200-HR
