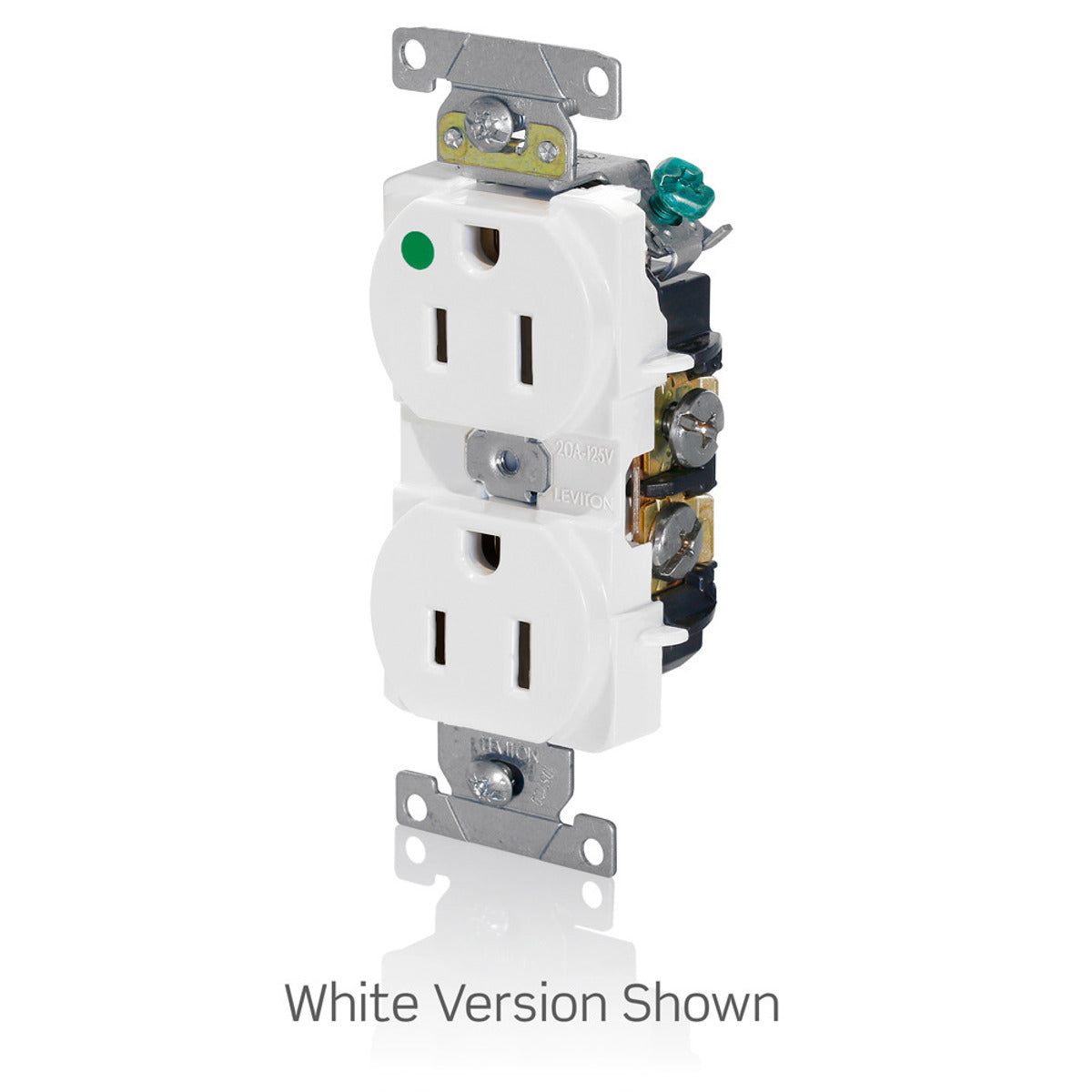

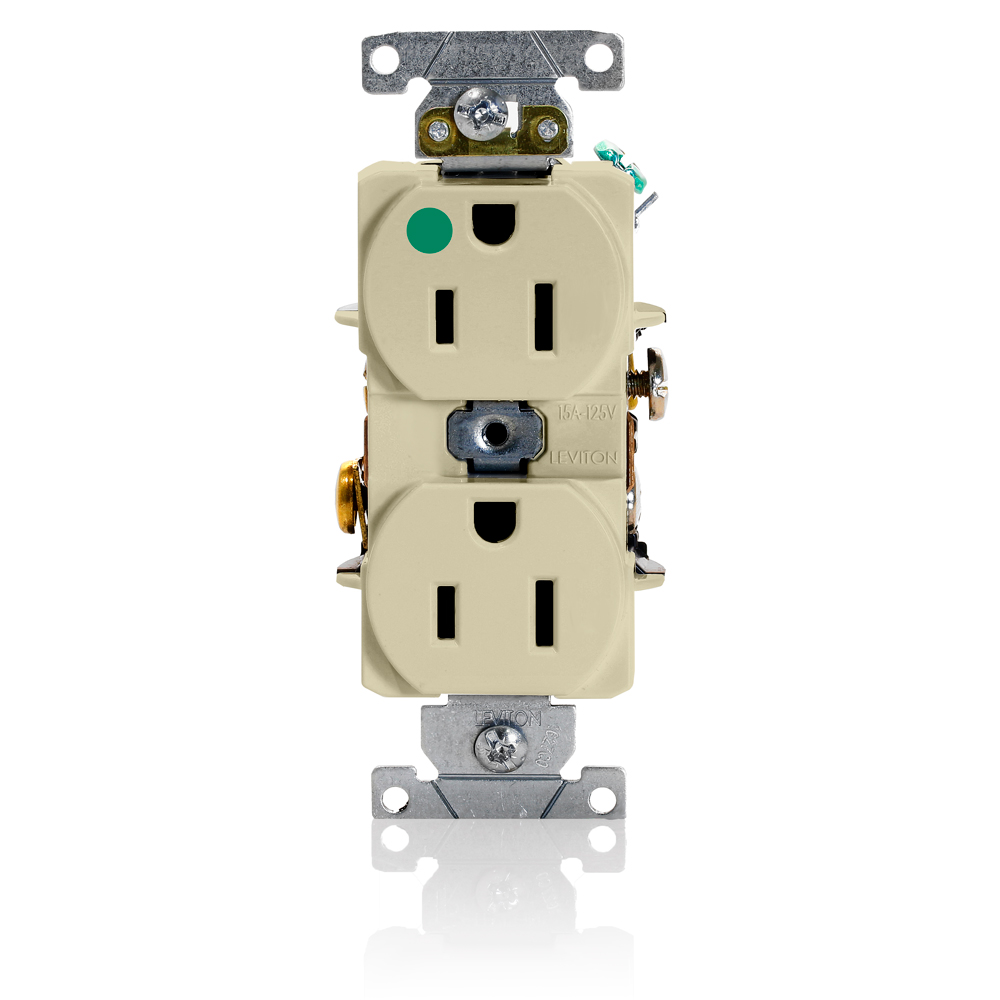

Leviton 8200-HI Duplex Receptacle 15 Amp 125 Volt NEMA 5-15R Heavy Duty Hospital Grade

Product Description

The Leviton 8200-HI is a heavy-duty duplex receptacle designed for applications requiring reliability and safety. This receptacle operates at 15 amps and 125 volts. It is hospital-grade, ensuring enhanced performance in challenging environments like health care facilities. The design features dual pole and three-wire configuration for effective grounding.

• Compatible with NEMA 5-15R standards
• Self-grounding feature for safety

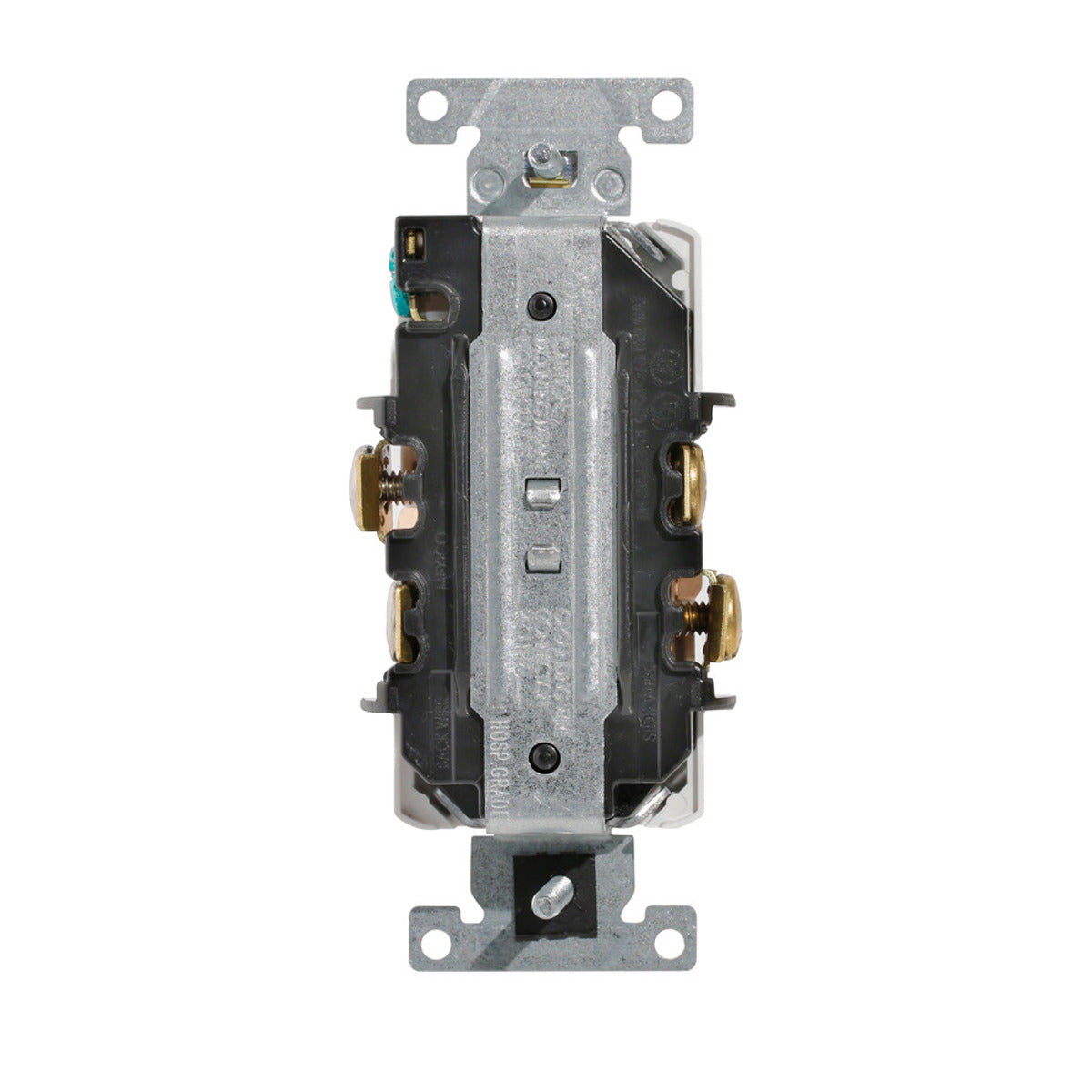

• Back and side-wired capabilities for flexible installation

Product Highlights

The receptacle's thermoplastic construction provides durability and resistance to impact. It is suitable for commercial grade applications, making it ideal for hospitals, schools, and industrial settings.

Product Information

Standard Information

• Brand: Leviton
• Catalog Number: 8200-HI

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 degrees C to 60 degrees C
• Size: 4.06 inches (height) x 1.51 inches (width) x 1.18 inches (depth)
• NEMA Rating: 5-15R
• Grade: Hospital
