Product Description

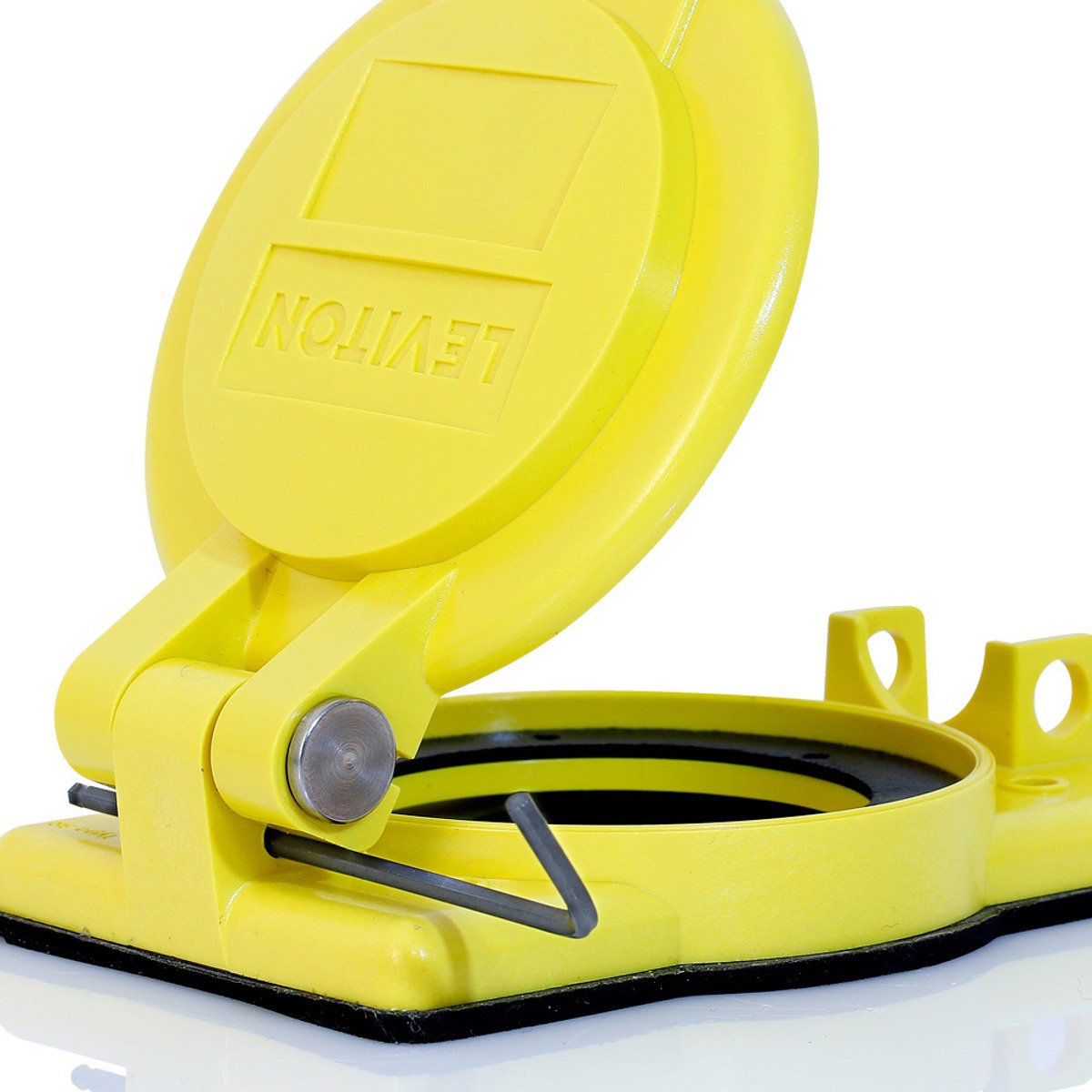

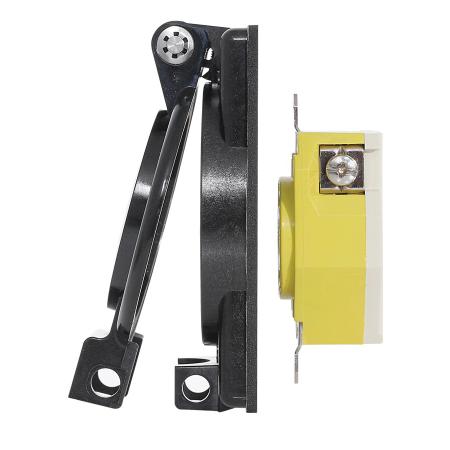

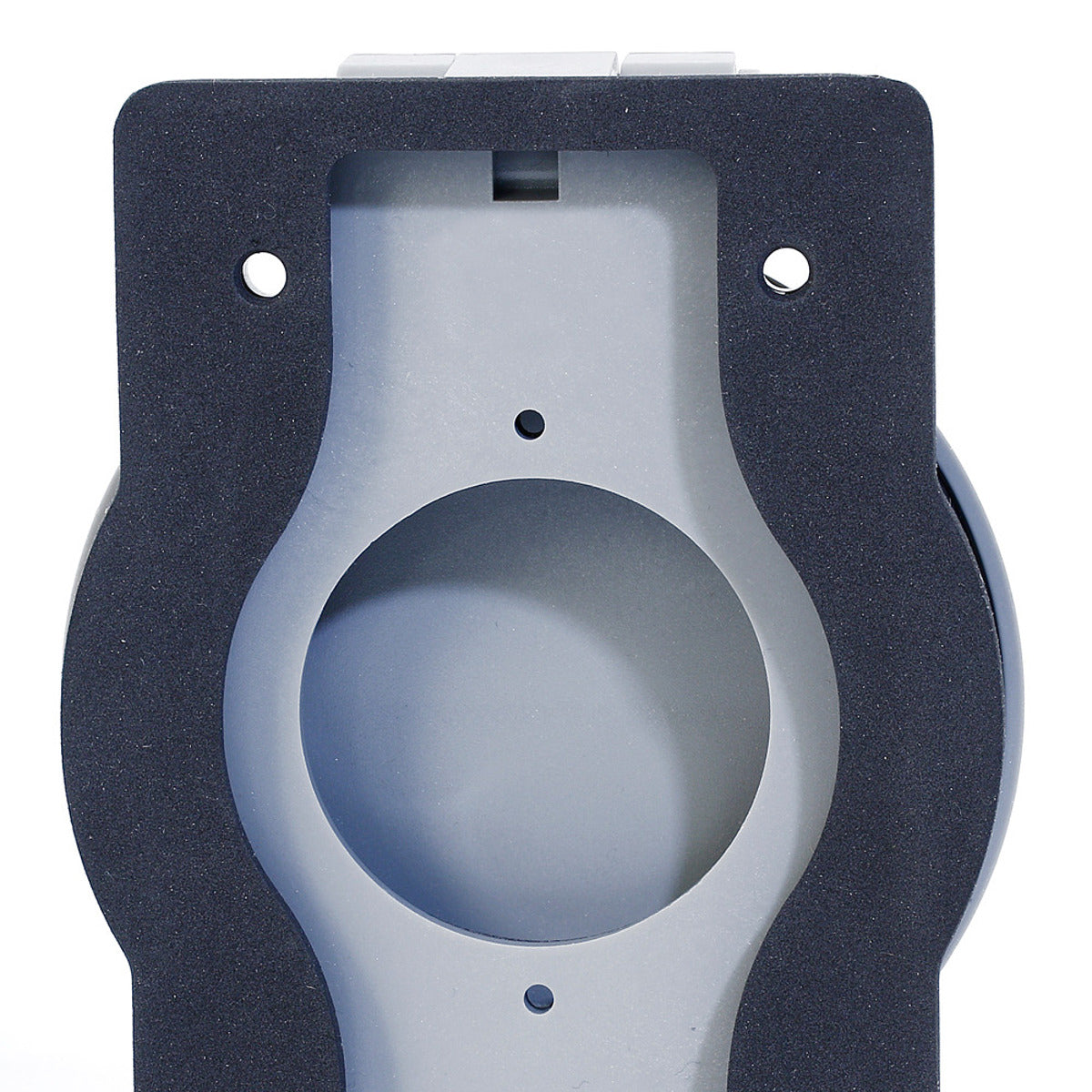

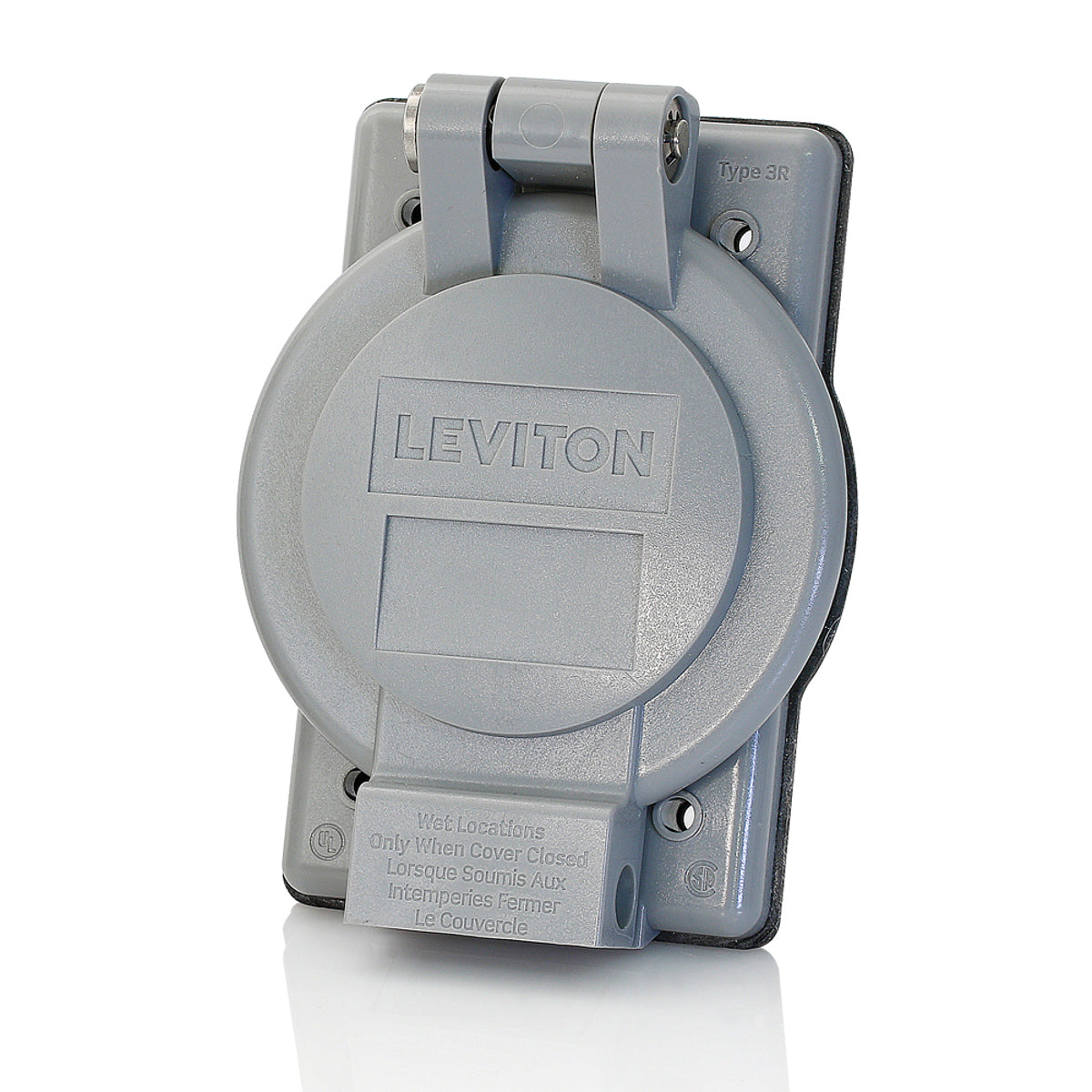

The Leviton 7420-G is a 1-Gang weatherproof cover designed for strap mount single locking receptacles. This industrial-grade cover features a 1.60-inch diameter and is suitable for FS/FD box mounting. Constructed from thermoplastic, it has an IP64 rating and NEMA 3R rating and a vertical self-closing lid.
- Industrial Grade
- IP64 rated
- NEMA 3R rated
Product Highlights
This Leviton weatherproof cover is ideal for industrial applications and provides protection from the elements for 20/30A single locking receptacles.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer Part Number: 7420-G
-
Country of Origin: Mexico
Technical Specifications
-
Size: 1.6 IN
-
Type: Weather-Resistant
-
Brand: Leviton
-
Material: Glass Filled Thermoplastic
-
IP Rating: IP64
-
NEMA Size: 3R
-
Sub Brand: Decora®
-
Used With: 20/30 A Single Locking Receptacle
-
Device Type: Flanged Receptacles
-
Orientation: Vertical
-
Applications: For Industrial use
-
Number of Gangs: 1 Gang
-
Width: 1.6 in
-
Length: 1.6 Inch
-
Catalog Number: 7420-G
-
Manufacturer: Leviton
-
Country of Origin: Mexico
-
Made in USA: No
-
Application: Industrial
-
Special Features: Vertical Closing
-
Standard: UL514C, UL514D
-
UPC: 078477789919
-
GTIN: 00078477789919
-
Item Type: Weatherproof Cover
-
Mounting Type: Surface
-
Standards/Approvals: UL 514C|UL 514D|UL 498|CSA C22.2 No.18.1 and/or 42.1
-
Self Closing Lid: Self-Closing Lid
-
Diameter: 1.6 in
-
Mounting Screws: Stainless Steel
-
Torsion Spring Mechanism: Stainless Steel
-
CSA Standard: C22.2 No. 18.1 and/or 42.1
-
RoHS: Compliant
-
UL Standard: UL 514C, UL514D
-
NEMA Rating: Type 3R
-
Feature: Self Closing Lid
-
Gang: 1
-
Mount: FS Box
-
Standards and Certifications: UL/CSA
-
RoHS Compliant: Yes
-
ARRA Compliant: C
-
Buy American Compliant: C
-
EU RoHS Indicator: C
-
NEMA Color: Gray
-
UNSPSC: 39121704
-
UPC 11: 07847778991
-
UPC 12: 078477789919
