Product Description

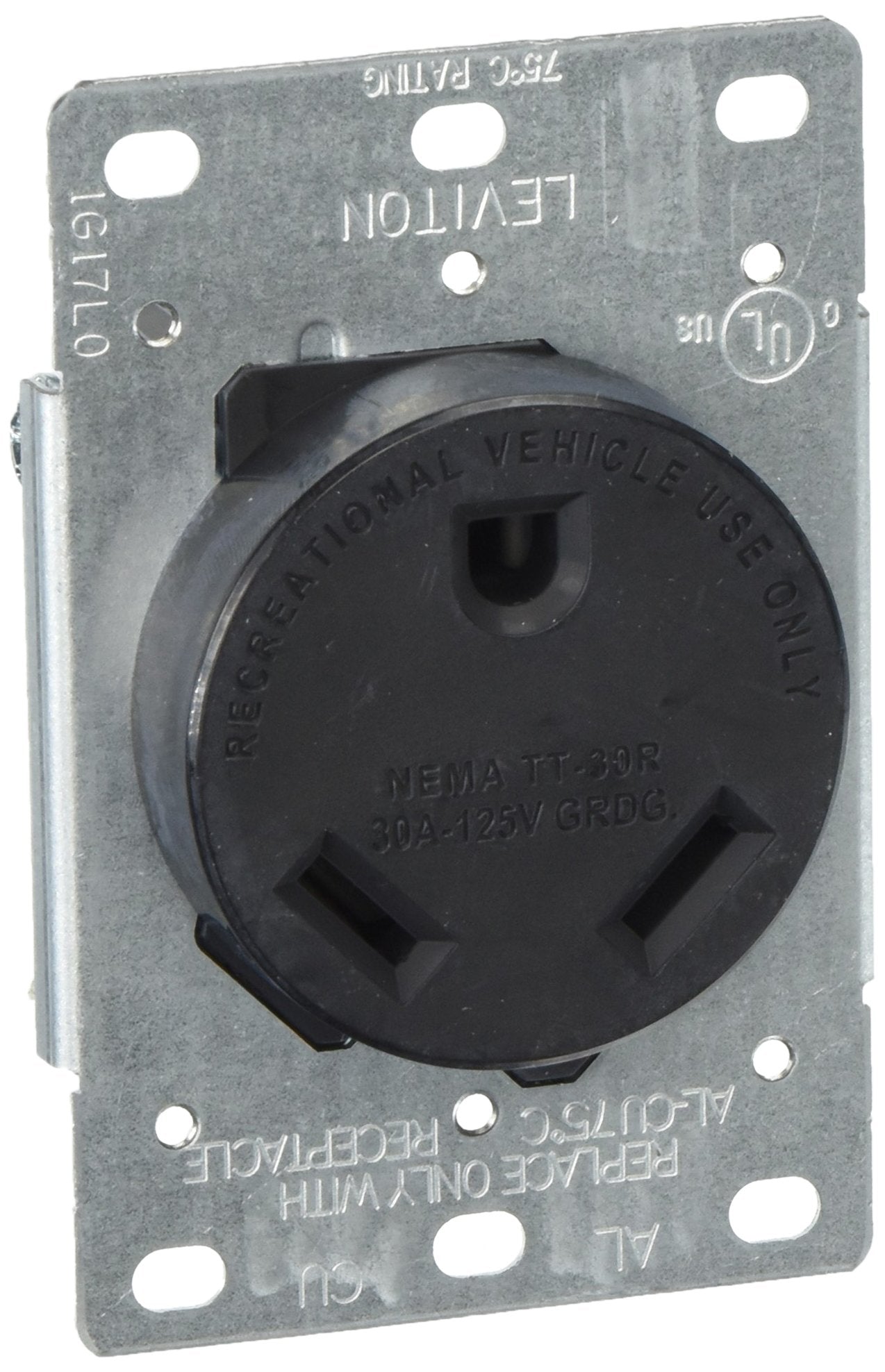

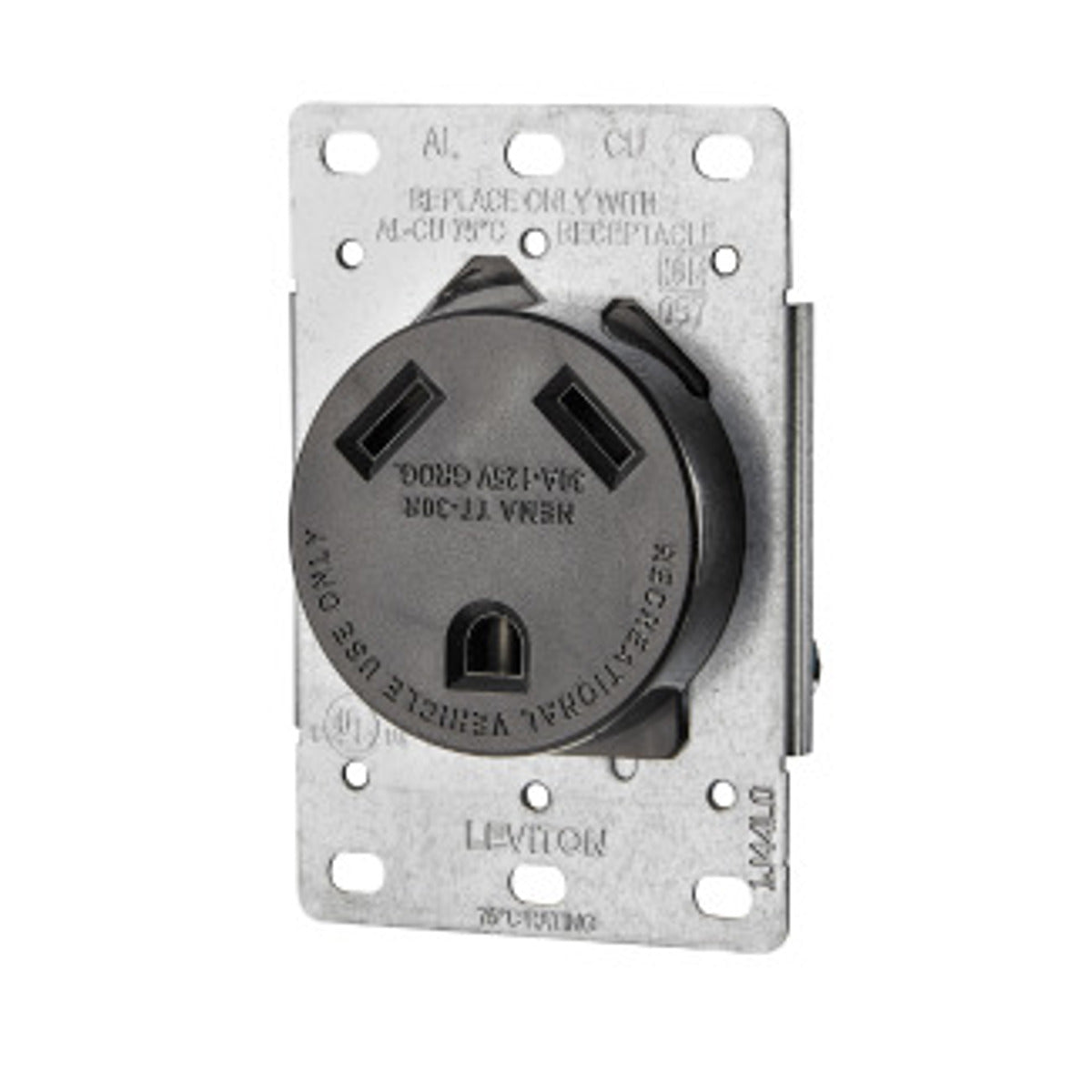

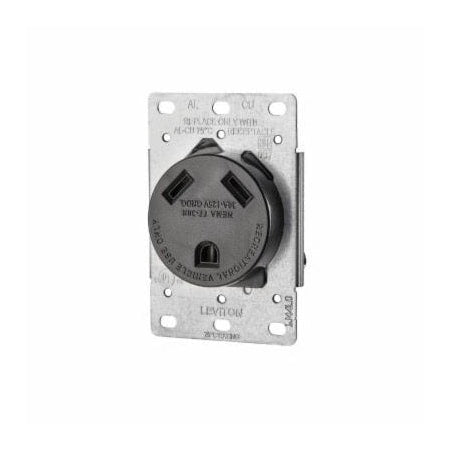

The Leviton 7313-S00 is a 30 Amp, 125 Volt, NEMA TT-30R, 2-pole, 3-wire, flush mount receptacle with a straight blade, designed for industrial-grade use. Constructed of durable thermoplastic, this receptacle features heavy-gauge, double-wire copper alloy contacts. It is suitable for recreational vehicles and fits Leviton's range of 2.15" diameter wallplates. Mounting hardware is included.
- Durable thermoplastic construction
- Heavy gauge, double-wire copper alloy contacts
- Flush mount design
Product Highlights
This straight blade receptacle is ideal for recreational vehicles and industrial applications requiring a reliable and robust power connection.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 7313-S00
-
Country of Origin: Mexico
Technical Specifications
-
Color: Black
-
Voltage: 125 Volts
-
Material: Plastic
-
Certification: NEMA
-
Amperage: 30 Amp
-
Poles: 2-Poles
-
Wires: 3 Wires
-
Type: Straight Blade Receptacle
-
Configuration: Single
-
Mounting: Flush mount
-
NEMA Configuration: NEMA TT-30R
-
Grade: Federal Specification
-
Wiring: Grounding Side Wired
-
Strap Material: Galvanized steel
-
Total_power outlets: 1
-
Amperage Rating: 30 A
-
Horsepower: 2 hp
-
Temperature Rating: -40 to 60 deg C
-

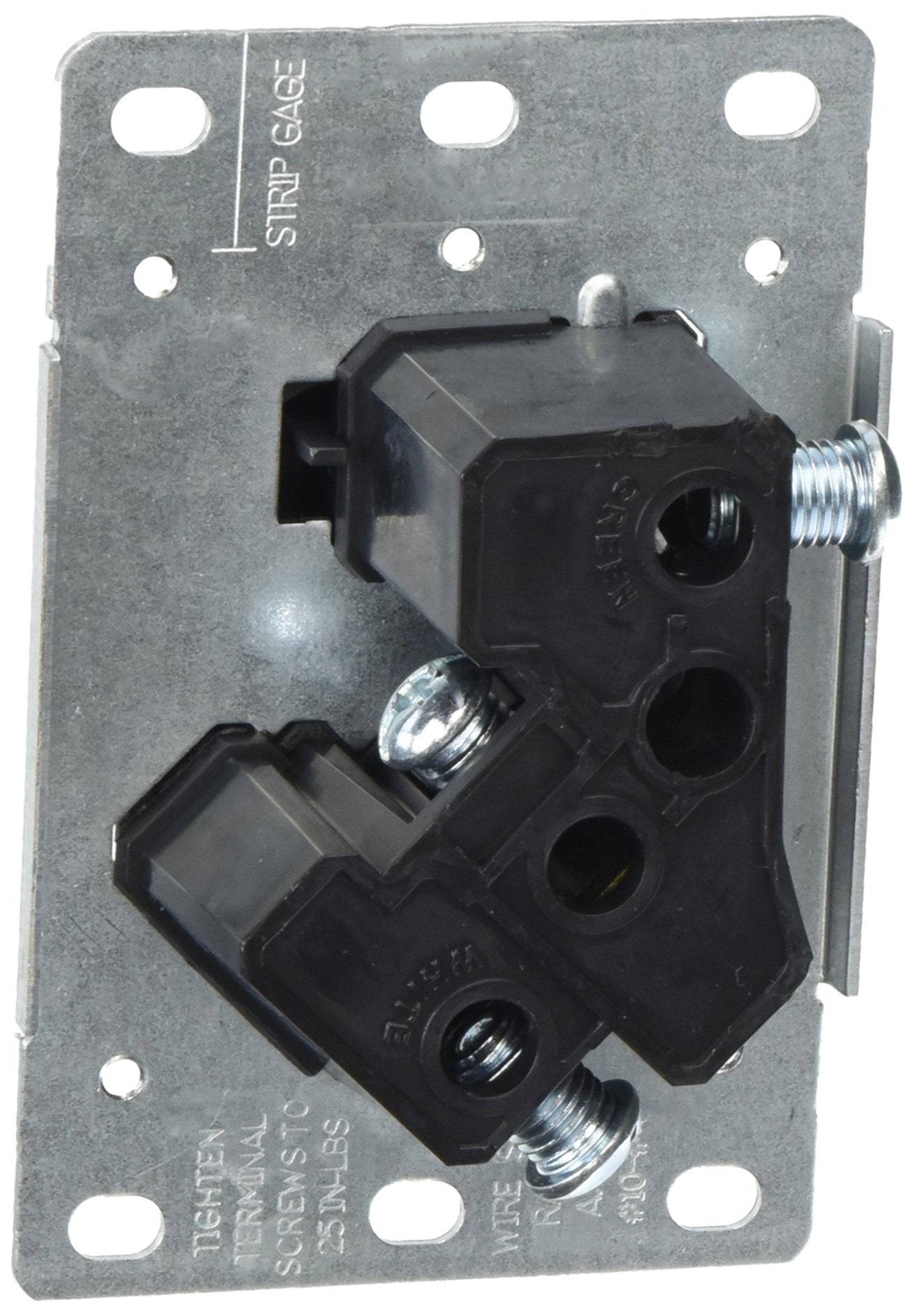

Terminal Type: Side Wire
-
Application: For recreational vehicles
-
Dielectric Strength: 2000-Volts
-
Standards: UL 498, 486E Listed, CSA 22.2 No.42, C22.2 No.14, C22.2 No.65, E13399 Certified, NEMA WD-6 Standard, ANSI C73, NOM-ANCE Marked
-
Operating Temperature: -40��C to 60��C
-
Country of Origin: Mexico
-
RoHS Compliant: False
-
Grounding: Grounding
-
Body Material: Polypropylene
-
Face Material: Polypropylene
-
Line Contacts: Brass Double-Wipe
-
Terminal ID: X (Brass screw or Black screw) = Hot; Y (Brass screw or Black screw) = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground
-
Torque Range: 40 in-lbs
-
Flammability: Rated V-2 per UL 94
-
Terminal Accom.: #4 AWG
-
Current Limiting: Full Rated Current
-
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
-
Dielectric Voltage: Withstands 2000V per UL498
-
Number Of Poles: 2
-
Number Of Wires: 3
-
Voltage Rating: 125 VAC
-
Mount: Flush
-
Brand Name: LEVITON
-
Product Name: Straight Blade Power Receptacle
-
NEMA Rating: TT-30R
-
Contact Material: Copper Alloy
-
Wiring Method: Back
-
Number of Outlets: 1
-
Wire Connection Type: Screw Terminals
-
Connection Orientation: Straight
-
Application Environment: Industrial
-
Key Resistance Properties: Standard Resistance
-
UL 94 Flammability Rating: V-2
-
Includes Mounting Hardware: Yes
-
Item - Plugs and Receptacles: Flush Mounting Receptacle
-
Voltage - Plugs and Receptacles: 125VAC
-
Additional Electrical Protection: Standard Protection
-
Outlet Type - Plugs and Receptacles: Single
-
Mounting Type - Plugs and Receptacles: Flush
-
Wiring Method - Plugs and Receptacles: Side
-
NEMA Receptacle Configuration - Plugs and Receptacles: TT-30R
-
Item Type: Receptacle
-
Conductor Size: 4 AWG
-
Maximum Load Capacity: 2 hp
-
Environmental Conditions: V2 Flammability Rated Per UL94
-
Terminal Connection: Side Wired
-
HP: 2 hp
-
UL: UL 498, UL 486E
-
CSA: 22.2 No 42, C22.2 No.14, C22.2 No.65
-
ANSI: C73
-
Item: Receptacle
-
NEMA: WD-6
-
Pole: 2
-
Wire: 3
-
Phase: Single
-
Market: Industrial
-
Polarized: Yes
-
Cover Type: No Cover
-
Housing Color: Black
-
Current Rating: 30 A
-
At Rated Voltage: 2 HP
-
Housing Material: Thermoplastic
-
Horsepower Rating: 2 hp
-
Wire Connection Types: Screw Terminals
-
Number of Poles & Wires: 2 Pole / 3 Wire
-
Primary Resistance Properties: 30 A
-
Additional Electrical Protections: Standard Protection
-
Country of Origin (subject to change): Mexico
-
Maximum Operating Temperature: 60 Degrees C
-
Minimum Operating Temperature: -40 Degrees C
-
Amps - Plugs and Receptacles: 30 A
-
Color - Plugs and Receptacles: Black
-
NEMA Receptacle Configuration: TT-30R
