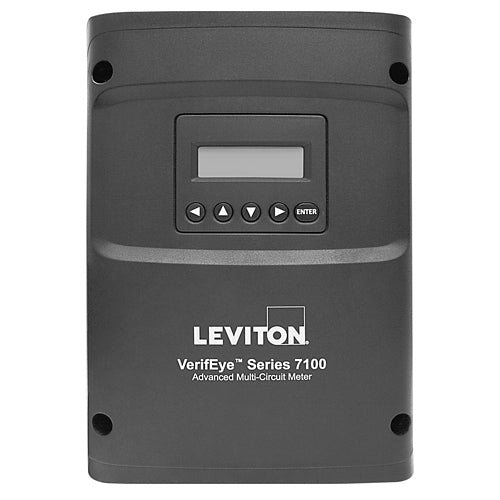

Leviton 71D48 S7100 BCM 48 Inputs With Display

Product Description

Leviton 71D48 is a 48-circuit branch circuit monitor that features advanced monitoring capabilities. This unit operates in the voltage range of ninety to six hundred volts and supports amperage from five to four thousand. The LCD display provides real-time data for each monitored circuit.

• Measures volts, amps, power, demand, and energy for each circuit.
• Includes user-defined inputs for flexibility.
• NEMA 1 enclosure protects internal components.

Product Highlights

The Leviton 71D48 is suitable for indoor data centers and energy monitoring applications. Its features make it ideal for both new installations and retrofits, supporting efficient load management.

Product Information

Standard Information

• Brand: Leviton
• MPN: 71D48

Technical Specifications

• Voltage Rating: 90 to 600 VAC
• Amperage Rating: 5 to 4000 A
• Frequency Rating: 50/60 Hz
• Accuracy: 0.2 %
• Dimensions: 13.25 in L x 9.87 in W x 3.14 in D
• Enclosure Type: NEMA 1
• Standards/Approvals: ANSI C12.20-2010 Class 0.2
• Series: 7100 Series
