Leviton 68W47 30 Amp, 125 Volt, NEMA L5-30, 2P, 3W, IP66 Rated Cover, Grounding, Corrosion Resistant, Wetguard, Single Locking Inlet

Product Description

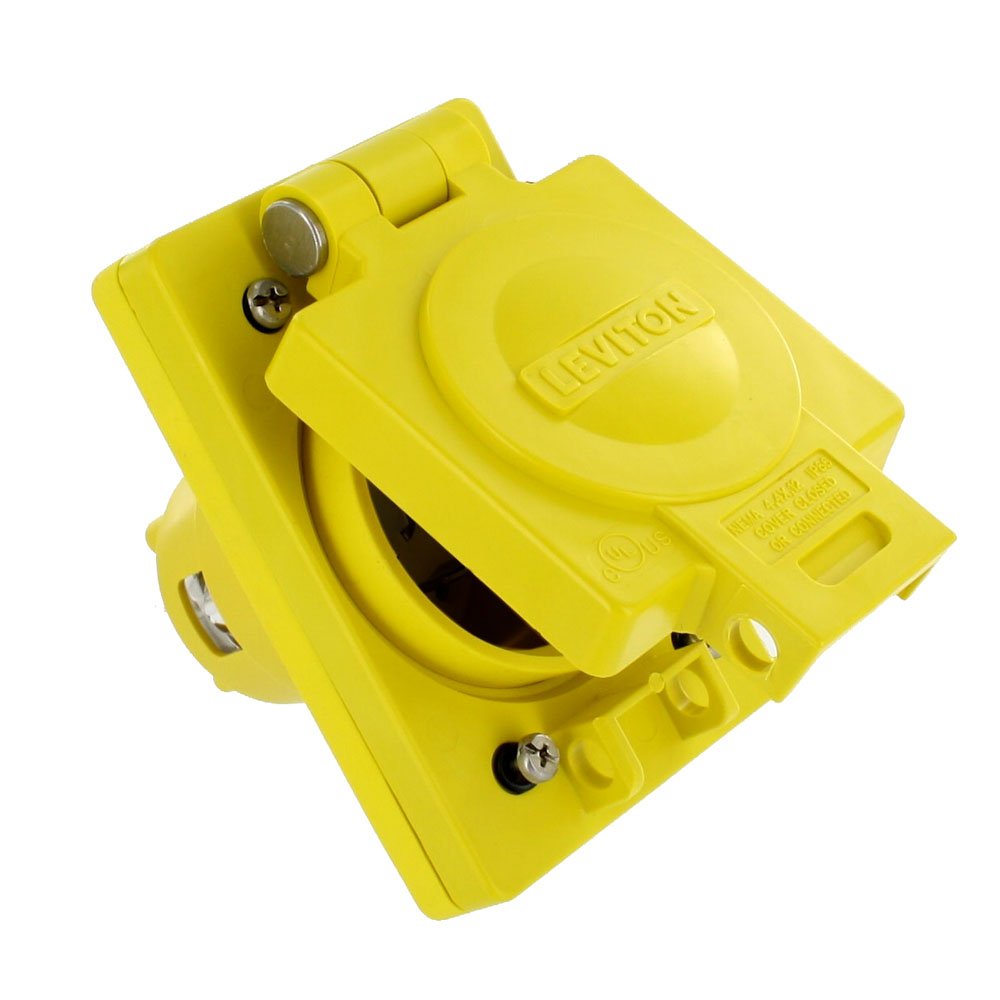

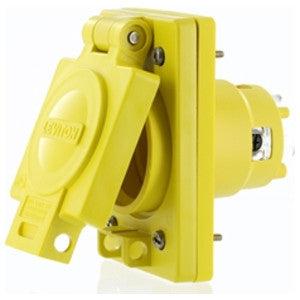

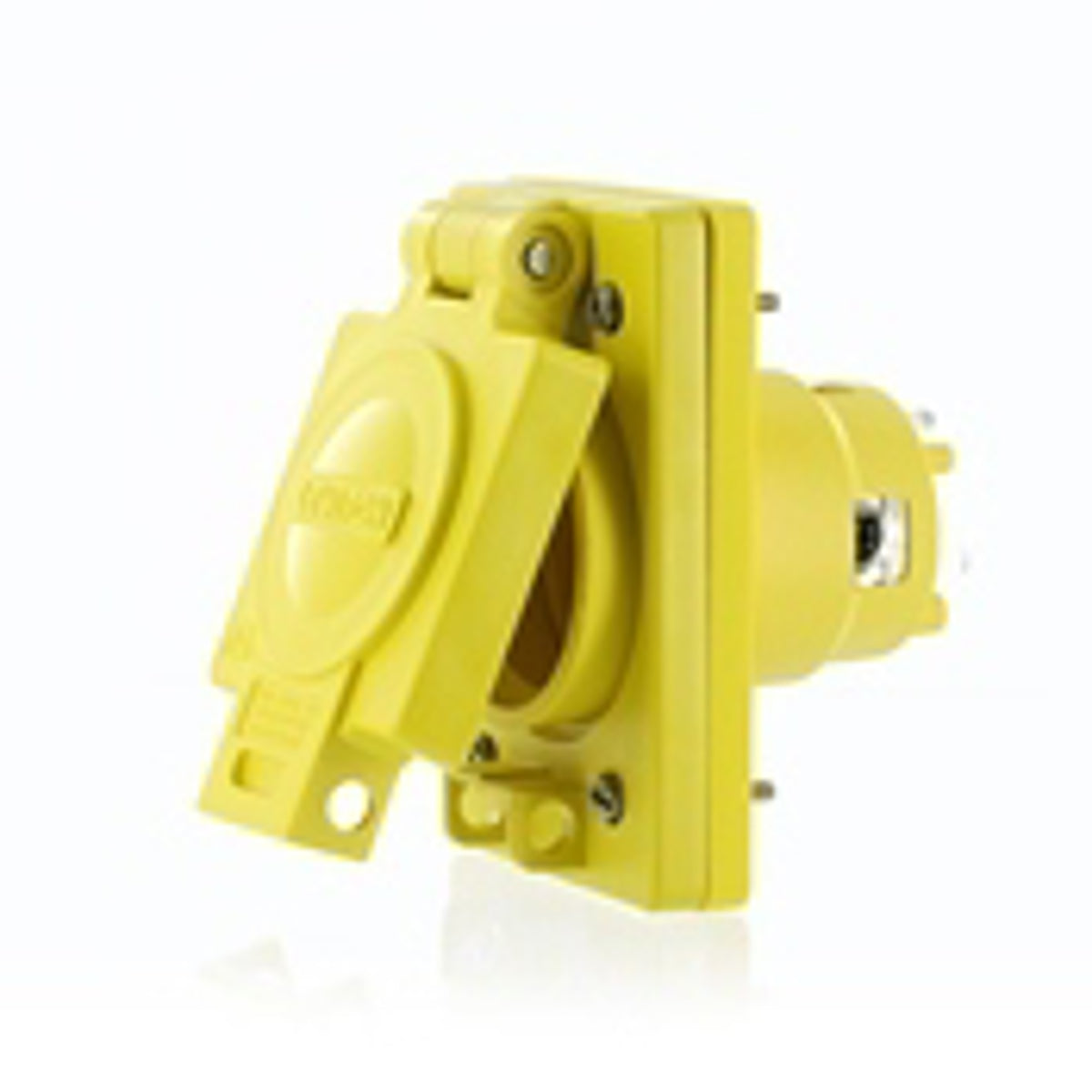

The LEVITON 68W47 is a 30 Amp, 125 Volt, NEMA L5-30, 2P, 3W, Wetguard single locking inlet with an IP66 rated cover. Constructed with corrosion-resistant materials, this industrial-grade inlet is designed for grounding applications in harsh environments. It features a Valox polybutylene terephthalate material, ensuring durability and resistance to water, acids, and alkalis.

• Corrosion Resistant
• IP66 Rated cover provides protection against water and dust
• Constructed from Valox polybutylene terephthalate for durability

Product Highlights

This Wetguard single locking inlet is ideal for industrial applications requiring watertight electrical connections and corrosion resistance.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 68W47
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 68W47
• Manufacturer: Leviton
• Brand: Leviton
• Sub Brand: Wetguard
• Country of Origin: Mexico
• Made in USA: No
• Application: Industrial
• Special Features: Corrosion Resistant
• Standard: IP66 Rated
• UPC: 078477519332
• GTIN: 00078477519332
• Item Type: Inlet
• Voltage Rating: 125 VAC
• Amperage: 30 Ampere
• Configuration: L5-30
• Poles: 2 Pole(s)
• Wires: 3 Wire(s)
• Material: VALOX POLYBUTYLENE TEREPHTHALATE
• Type: WATER TIGHT, CORROSION RESISTANT
• Approval: UL 498, CSA C22.2
• Grounding: Grounding
• Amperage Rating: 30 A
• Enclosure: NEMA 4/4X/12/IP66
• Grade: Industrial
• NEMA Rating: NEMA L5-30P
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Screw Clamp
• Number Of Pieces: 1
• Mounting Type: Plug In Mount
• Included Components: 68W47
• Batteries Included?: No
• Batteries Required?: No
• Voltage: 125 Volts
• Connector Type: Clamp
