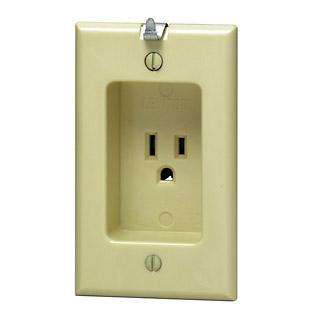

Leviton 688-I Receptacle Recessed 125VAC 15A 2 3 Ivory

Product Description

Leviton 688-I is a recessed receptacle suitable for commercial and residential use. It operates at 125 Volts and supports a current of 15 Amps. This single outlet receptacle features two poles and three wires. Its thermoplastic construction ensures durability and resistance to moisture.

• 1-gang recessed duplex receptacle
• Designed for AC power supply to two components
• Supports standard 125VAC and 15A applications

Product Highlights

This product is compliant with NEMA 5-15R standards and is designed to offer ease of installation with its side terminal. It comes with a clock hanger hook for easy mounting.

Product Information

Standard Information

• Brand: Leviton
• MPN: 688-I

Technical Specifications

• Type: 1-Gang Grounding Single Outlet
• Grade: Commercial/Residential
• Material: Thermoplastic
• NEMA Rating: NEMA 5-15R
• Voltage Rating: 125 VAC
• Amperage Rating: 15 A
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 deg C
• Dimensions: 2.813 in L x 2.188 in W x 4.75 in H
• Country of Origin: China
• Warranty: 2 Years Limited
