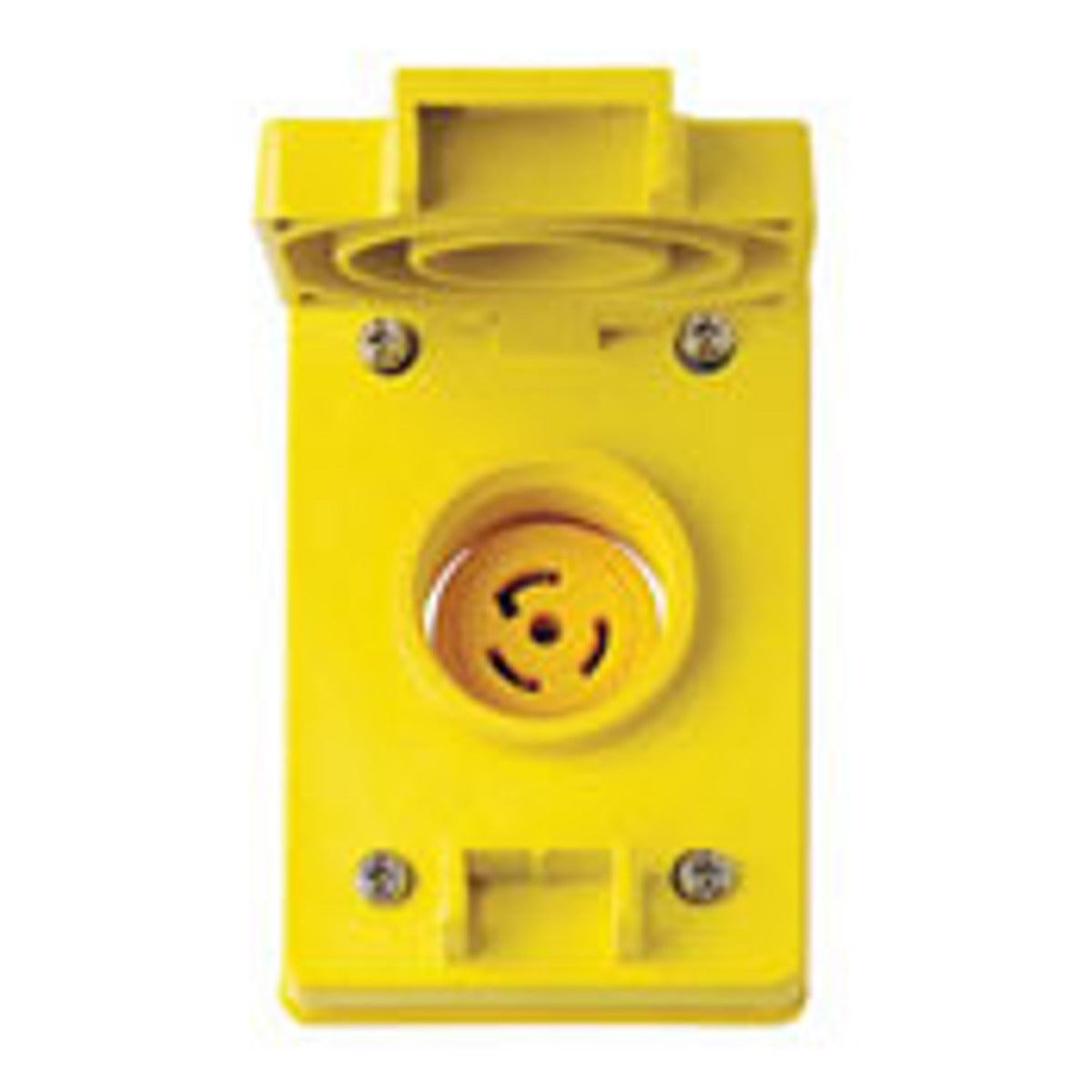

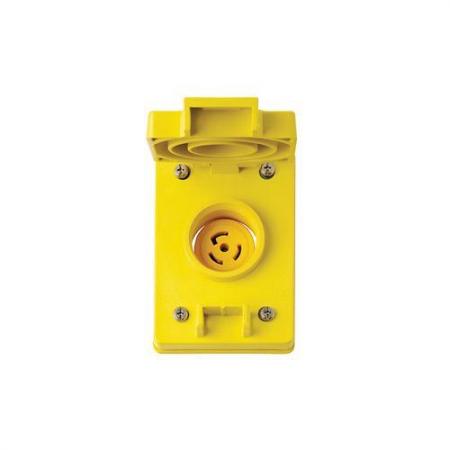

Leviton 67W48 Locking Receptacle 250 Volt 20 Amp NEMA L6-20R

Product Description

The Leviton 67W48 is a locking receptacle designed for industrial applications. This model supports a voltage of two hundred fifty volts with a twenty amp amperage rating. It features two poles and three wires, making it suitable for heavy-duty tasks.

• Corrosion resistant materials
• IP67 rated for water ingress protection
• Capable of back wired and side wired connections

Product Highlights

This receptacle is perfect for outdoor use due to its robust design that meets NEMA L6-20R standards. It is built to withstand harsh environmental conditions while ensuring reliable electrical performance.

Product Information

Standard Information

• Catalog Number: 67W48
• Manufacturer: Leviton

Technical Specifications

• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Enclosure Rating: IP67
• Temperature Range: -40 to +60 degrees Celsius
• NEMA Rating: L6-20R
• Dimensions: 4.63 inches H x 3.13 inches W
• Material: Nylon
• Wire Size Compatibility: 14-8 AWG
