Leviton 620PV Plug 20 Amp, 250 Volt, Grounding

Product Description

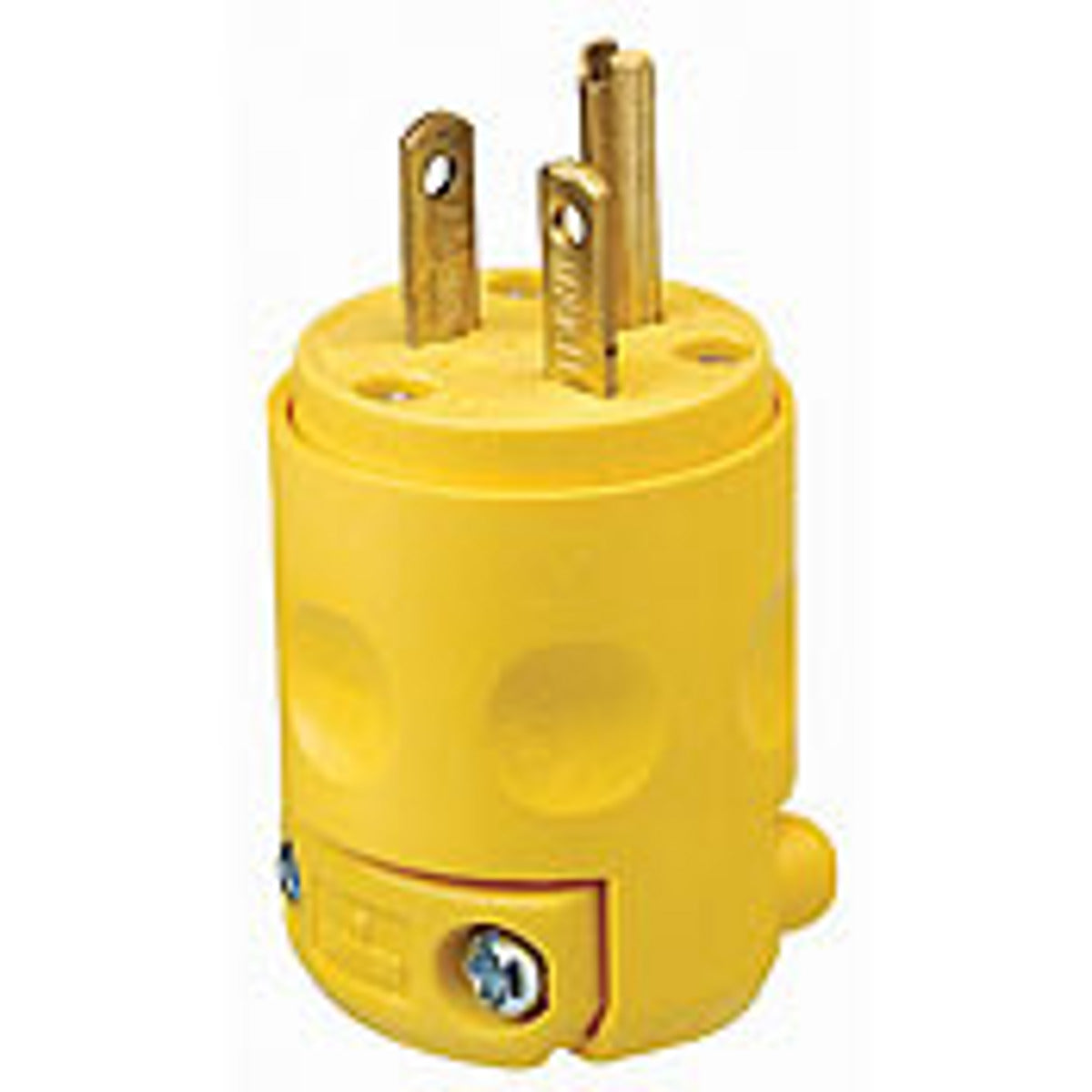

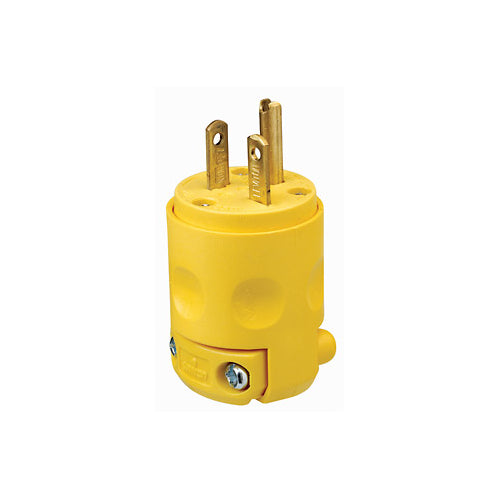

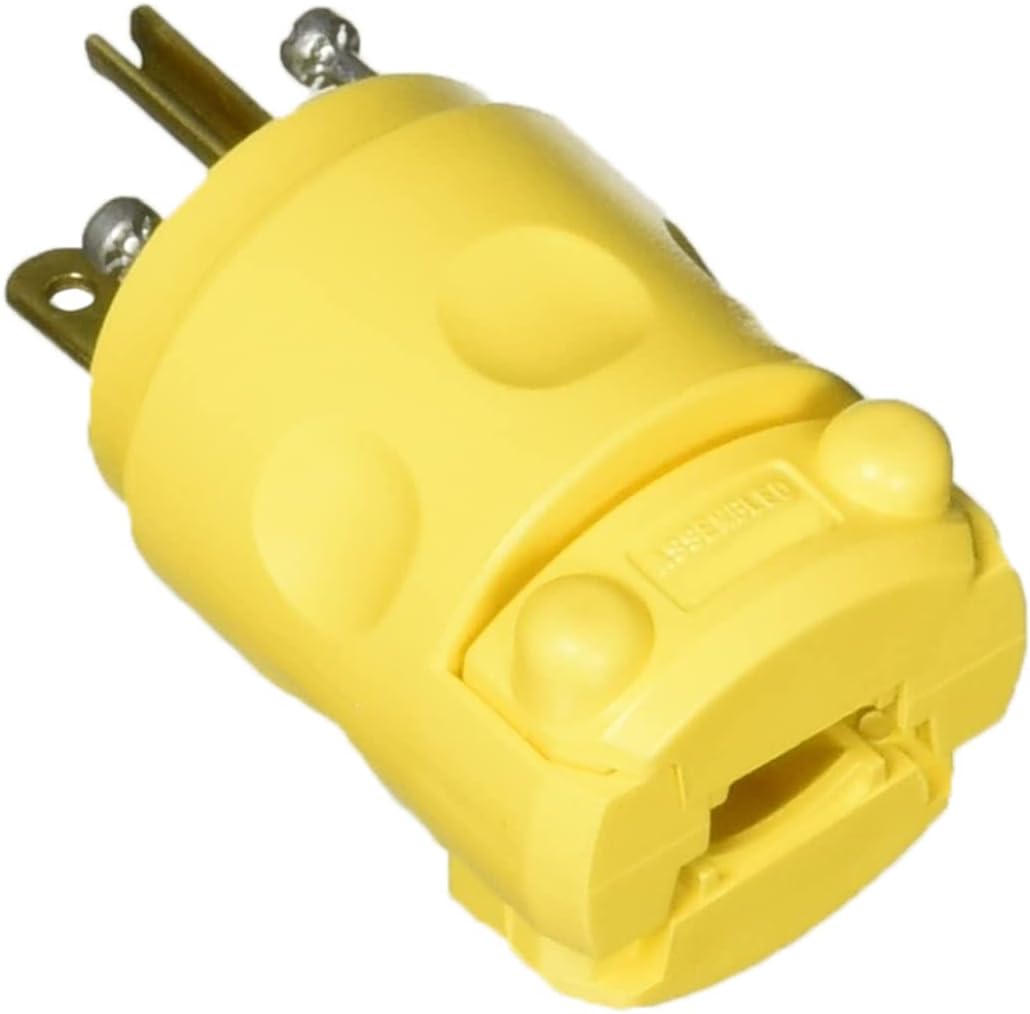

The Leviton 620PV is a 20 Amp, 250 Volt grounding plug. This straight blade plug is designed for commercial applications. It features a rugged PVC body that resists moisture and chemicals and speed thread assembly screws that tighten quickly. It is ideal for indoor and outdoor use.

• 20 Amp, 250 Volt
• Grounding
• Rugged PVC body resists moisture and chemicals

Product Highlights

The Leviton 620PV grounding plug is ideal for commercial and residential applications. It is built to withstand harsh conditions and provide a secure connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 620PV
• Country of Origin: Mexico

Technical Specifications

• Color: Yellow
• Voltage: 250 Volts
• Material: Polyvinyl Chloride (PVC)
• Certification: NEMA
• Connector Type: Plug in
• Batteries Included?: No
• Batteries Required?: No
• NEMA: WD-6
• Type: Plug
• Amperage: 20 Amp
• Standard: ANSI C-73
• Cord Size: 0.245 - 0.7 in
• Grounding: Grounding
• Sub Brand: RESIDENTIAL PLUGS AND CONNECT
• Wire Size: 12-18 AWG
• Blade Type: Brass
• Dielectric: 2000 V
• Screw Type: Steel,Zinc-Plated
• Wire Count: 3
• Applications: Commercial
• Body Material: PVC
• Mounting Type: Cable
• Number of Poles: 2
• Number of Wires: 3
• Contact Material: Brass
• Temperature Rise: 150 %
• Country of Origin: Mexico
• Flamability Class: Rated V-2 Per UL 94
• Temperature Rating: -40 degrees C to 60 degrees C
• Operating Temperature: -40 degrees C
• Environmental Conditions: UL 94 Requirements, V2 Rated Flammability
• Catalog Number: 620PV
• Manufacturer: Leviton
• Made in USA: No
• Amperage Rating: 20 A
• Application: Commercial
• Mounting: Cable
• NEMA Rating: 6
• UPC: 078477842553
• GTIN: 00078477842553
• Item Type: Straight Blade
• Voltage Rating: 250 VAC
• Terminal Connection: Screw
• Standards: NEMA WD-6, ANSI C-73, UL 498 Listed, CSA C22.2 No.42, LR406 Certified, NOM 057 Certified
• Grade: Commercial
• NEMA Configuration: NEMA 6-20P
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Pole: 2
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Assembly Screws: Steel, Zinc Plated
• Blades/Contacts: Brass
• Cord Range: .245 - .655
• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NOM: 057
• UL498: File E13393
• Safety features: Grounding
• Connector type: Straight blade plug
• Specification Met: NEMA
• Plug Type: Type B
• Manufacturer Part Number: 620PV
• Primary Type: Straight Blade
• Termination: screw
• UPC Code: 078477842553
