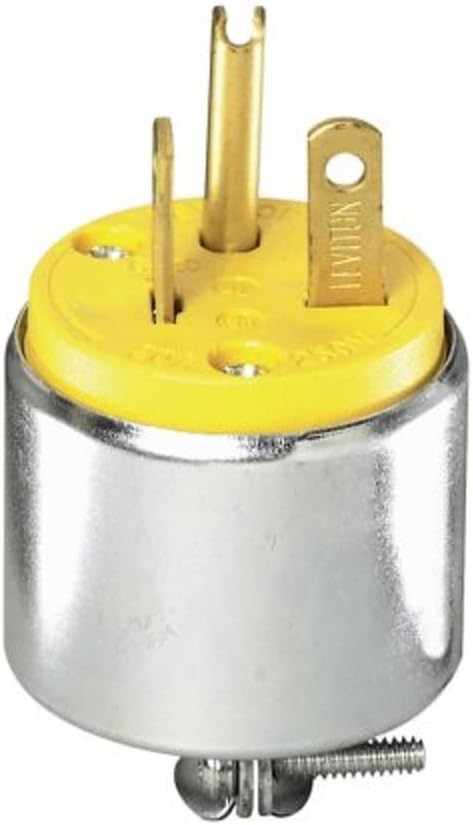

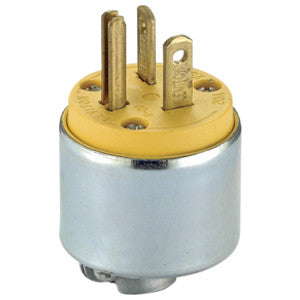

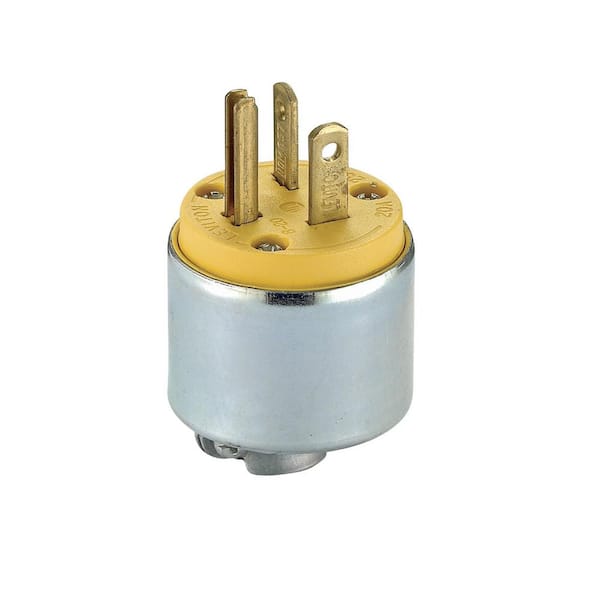

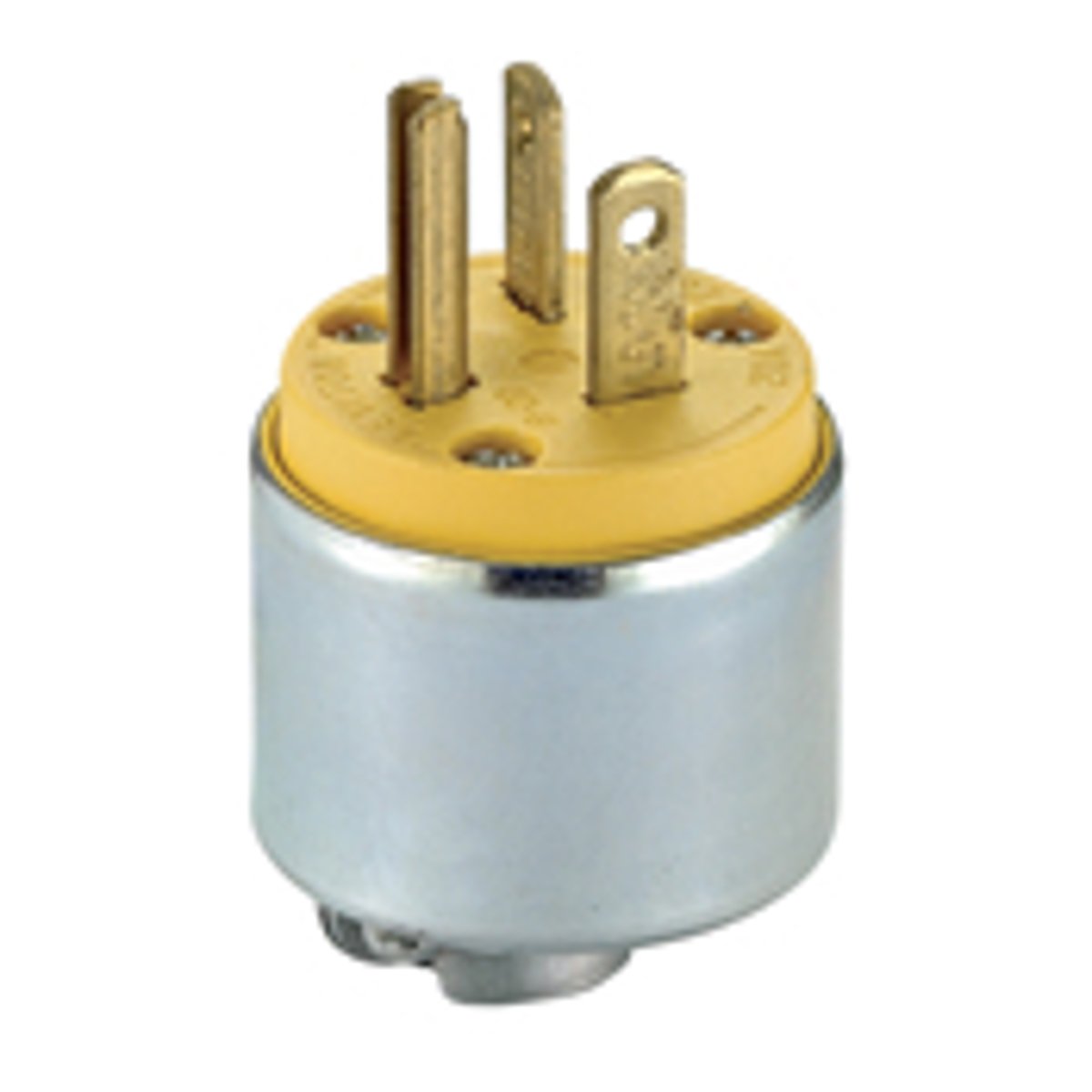

Leviton 620PA 20 Amp, 250 Volt, Armored, Grounding Plug, Steel

Product Description

The Leviton 620PA is a 20 Amp, 250 Volt, armored grounding plug with steel construction. Suitable for indoor and outdoor use, this straight blade plug is chemical and abuse resistant. It features deep slotted, backed out terminal screws that draw backwire clamps securely for maximum conductivity. Ideal for shops, garages, and rough duty work with hard floors.

• 20 Amp, 250 Volt
• Armored, Grounding Plug
• Steel construction

Product Highlights

The Leviton 620PA is a durable and reliable grounding plug designed for commercial and industrial applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 620PA
• Country of Origin: Mexico

Technical Specifications

• Voltage: 250 Volts
• Material: PVC / Steel
• Plug Format: Type B
• Certification: NEMA
• Amperage Rating: 20 A
• Cord Diameter: 0.245 to 0.7 in
• NEMA Rating: NEMA 6-20P
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 deg C
• Type: Armored Grounding Cable Mount
• Voltage Rating: 250 VAC
• Brand Name: Leviton
• Application: Shops, Garages and Rough Duty Work with Hard Floors
• Grade: Commercial
• Item Type: Straight Blade;Armored
• Environmental Conditions: Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
• Wire Size: 18-12 AWG (Wire Gauge);0.245-0.700 IN (Cord Grip Range)
• Color Family: Yellow
• Poles: 2
• Wires: 3
• Configuration: 6-20P
• Current Rating: 20 Ampere
• Ground Type: Grounding
• Cord Size: 0.245 to 0.655 Inch
• Approval: UL 498, CSA C22.2, NOM 057
• Blade Material: Brass
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Pole: 2
• Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
• Wire: 3
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40 C to 60 C
• Assembly Screws: Steel, Zinc Plated
• Blades/Contacts: Brass
• Body Material: PVC / Steel
• Cord Range: .245 - .655
• Product ID: Ratings and NEMA I.D. permanently marked on device
• Terminal Accom.: 18-12 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NEMA: WD-6
• NOM: 057
• UL498: File E13393
• Connector Type: Plug in
• Plug Type: Type B
• Product Grade: Commercial
• Amperage: 20 Amps
• Material Type: PVC / Steel
• Specification Met: NEMA
• NEMA Configuration: NEMA 6-20P
• Rated Voltage: 250V
• Electrical Product Type: Plug
• Indoor/Outdoor: Indoor/Outdoor
• Maximum Amperage (A): 20 A
• Number of Conductors: 3
• Product Depth (in.): 1.55
• Product Height (in.): 1.89
• Product Width (in.): 1.55
• Color: Yellow
