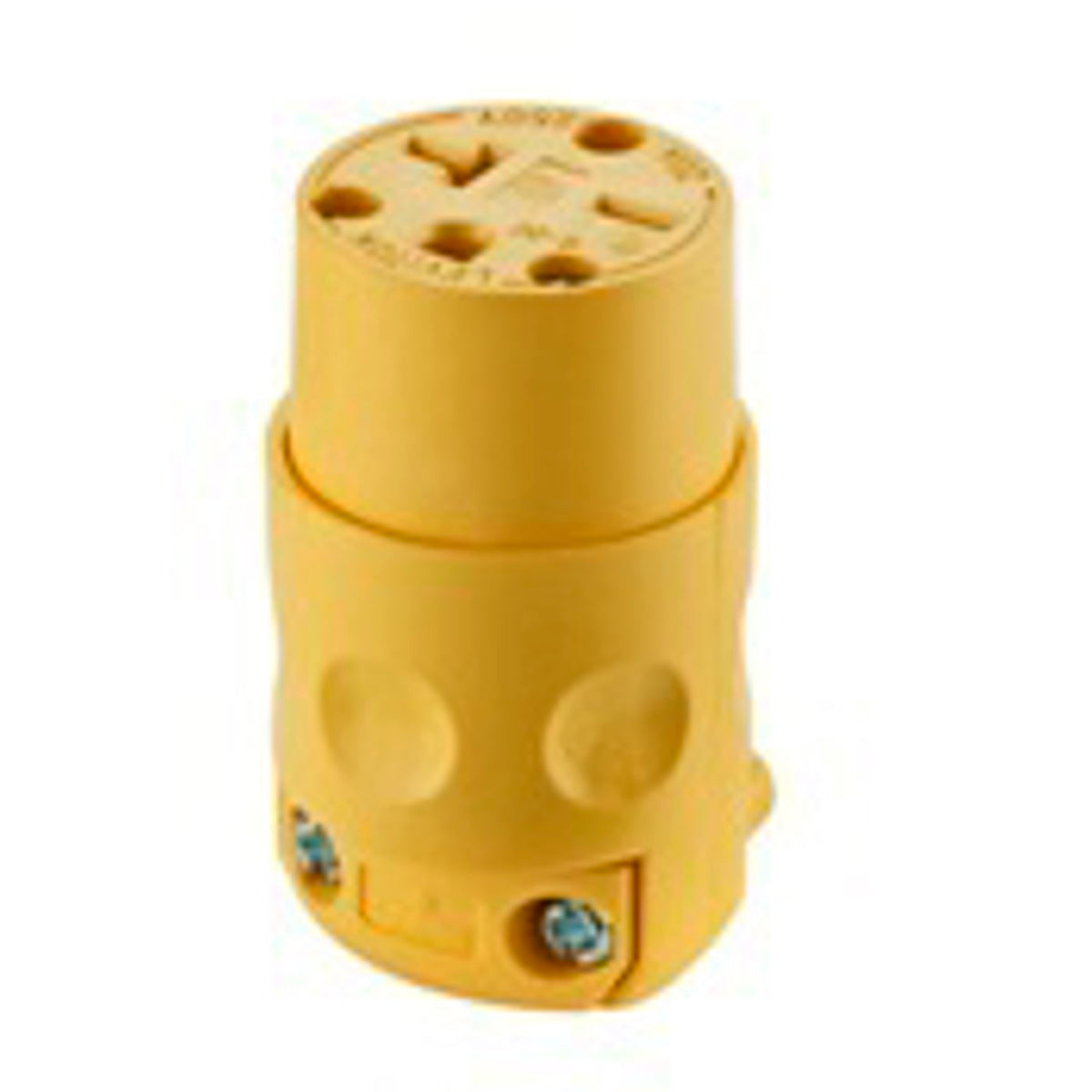

Leviton 620CV 20 Amp 250 Volt Straight Blade Grounding Connector

Product Description

The Leviton 620CV is a straight blade connector, offering a wide variety of features. These connectors are moisture, chemical, and abuse-resistant, making them ideal for indoor and outdoor use. The deep-slotted terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

• Moisture and chemical resistant
• Ideal for indoor and outdoor use
• Deep-slotted terminal screws for maximum conductivity

Product Highlights

The Leviton straight blade connectors are rugged and resist dirt and moisture. Suitable for commercial and residential applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 620CV
• Country of Origin: Mexico

Technical Specifications

• Type: Straight Blade Connector
• Brand: Leviton
• Voltage: 250 VAC
• Amperage: 20 A
• Number of Poles: 2 Pole
• Number of Wires: 3 Wire
• Material: PVC
• Mounting Type: Cable
• Grounding: Grounding
• NEMA Rating: 6-20R
• Standard: ANSI C-73
• Wire Size: 18-12 AWG
• Blade Type: Brass
• Dielectric: 2000 V
• Screw Type: Steel,Zinc-Plated
• Applications: Commercial
• Connection Type: Screw Terminal
• Contact Material: Brass
• Flamability Class: Rated V-2 Per UL 94
• Operating Temperature: -40 degrees C
• Number of Conductors: 3
• Environmental Conditions: Operating Temperature Range (-40 to 60) C
• Cord Diameter: 0.245 to 0.7 in
• Terminal Type: Threaded
• Configuration: 6-20R
• Grade: Commercial
• Approval: UL 498, CSA C22.2, NOM 057
• Wire Gauge: 18 to 12 AWG
• Temperature Rating: -40 to 60 deg C
• Constructional Feature: Moisture/Chemical Resistant
