Product Description

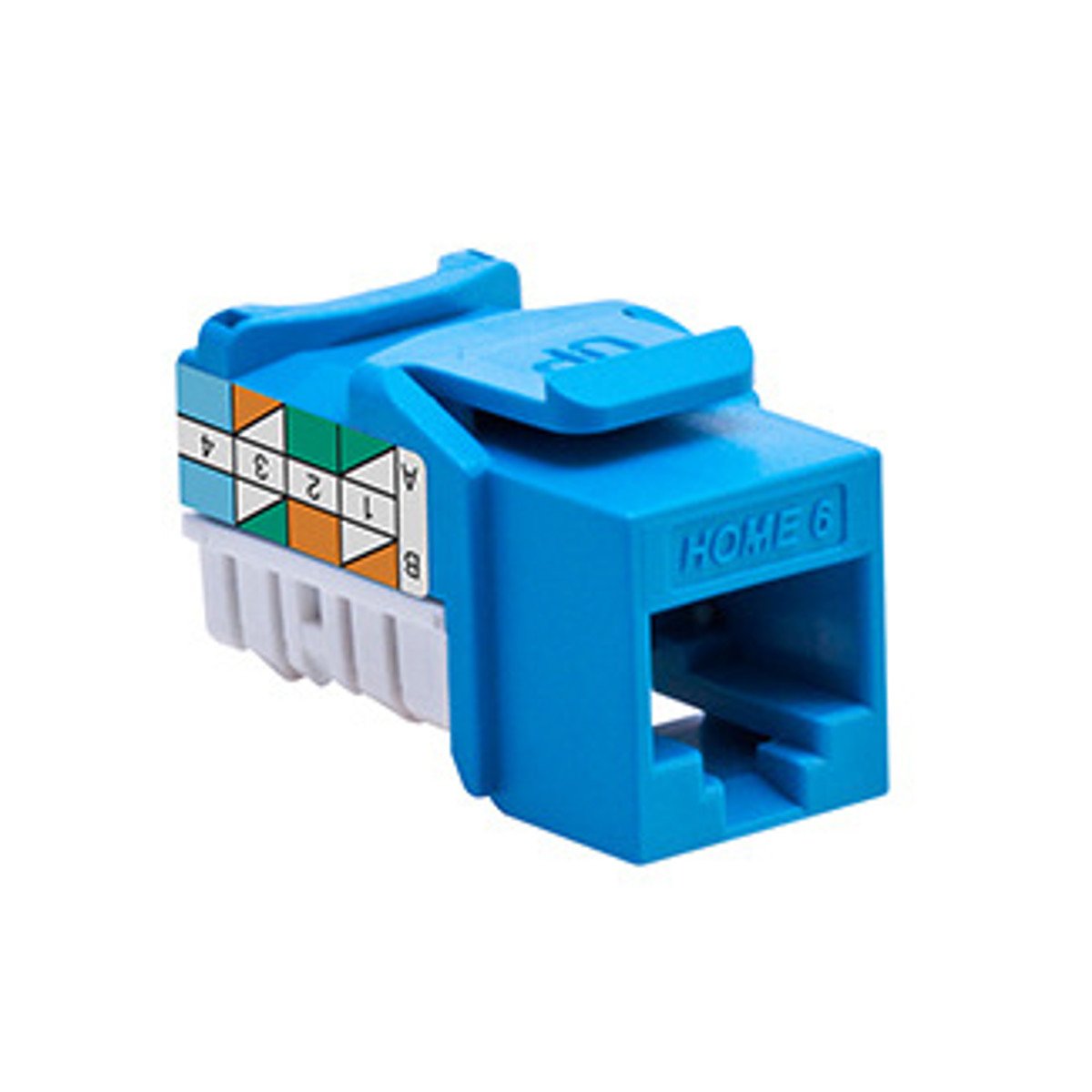

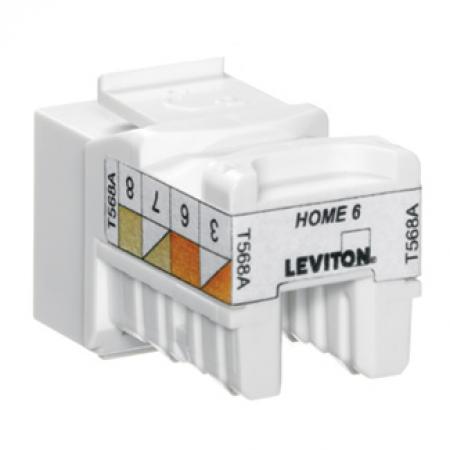

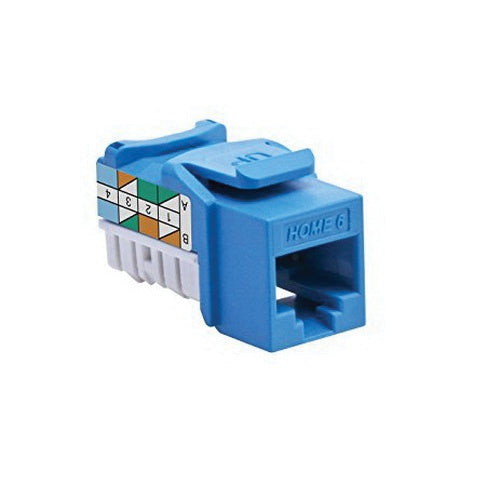

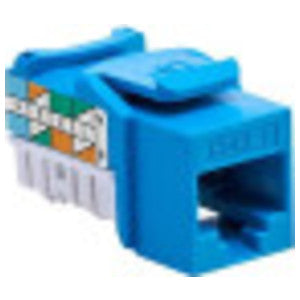

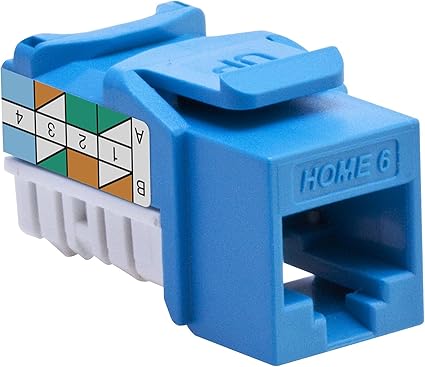

The Leviton 61HOM-RL6 HOME 6 Connector provides network connections for CAT 6 UTP structured cabling systems in residential applications. Supports high megabit applications such as Gigabit Ethernet and 622 Mbps ATM. The connector allows 568A/B type wiring for improved functionality.
- Individual port configurability allows specification flexibility
- Robust one-piece lead-frame design
- Narrow connector allows high-port density in a small area
Product Highlights
The Leviton 61HOM-RL6 is for use in residential applications and supports high megabit and sharedsheath applications.
Product Information
Standard Information
-
Brand: Leviton
-
Manufacturer Part Number: 61HOM-RL6
-
Country of Origin: Taiwan
Technical Specifications
-
Color: Blue
-
Depth: 1.2"
-
Width: 0.6"
-
Height: 0.6"
-
Brand Name: Leviton
-
Depth (mm): 29.972
-
Width (mm): 16.002
-
Height (mm): 14.732
-
Manufacturer: Leviton Mfg. Company, Inc
-
Product Line: HOME 6
-
Product Name: HOME 6 Cat.6 Connector
-
Product Type: Network Connector
-
Product Model: 61HOM-RL6
-
Connector Type: RJ-45 Network Male
-
ADI Part Number: LV-61HOMRL6
-
Contact Plating: Gold
-
Connector Details: 1 x RJ-45 Network Male
-
Manufacturer Part Number: 61HOMRL6
-
Category: CATEGORY 6
-
Number of Ports: 1
-
Wiring: T568A/B
-
Size: 0.58 H x 0.63 W x 1.18 D IN
-
Type: Fire-Retardant, Lead-Frame Design, Narrow Body
-
Standard: CULus Listed,FCC Part 68 Compliant,TIA-568-C
-
Sub Brand: Home 6®, QuickPort
-
Cable Type: Category 6
-
Applications: For Residential, Performance Supports High Megabit and Shared-Sheath
-
Mounting Type: Surface, Flush
-
TC Connection: IDC
-
Connection Type: IDC
-
Contact Material: Phosphor Bronze
-
Country of Origin: Taiwan
-
Environmental Conditions: Flammability (Rated V-0 per UL94)
-
Application: Residential, Voice, Data and Video Applications
-
Includes: Suffer Cap
-
Material: Plastic
-
Module Type: Cat 6
-
Standards/Approvals: ANSI/TIA-568-C/1096-A|IEEE 802.3at|FCC Part 68|cULus Listed|UL94 V-0 Flammability Rating
-
ECCN: EAR99
-
Flammability Rating: UL 94V-0
-
Jack Type: Modular UTP
-
Standards: cULus Certified, ANSI/TIA-568-C.2, ANSI/TIA-1096-A, IEEE 802.3at (Type 1) Power Over Ethernet (PoE) Applications, IEEE 802.3at (Type 2) Power Over Ethernet (PoE+) Applications Standard, ISO 9001 Approved
-
Item Name: Jack Connector
-
Item Package Quantity: 1
-
Wiring Configuration: T568A, T568AB
