Product Description

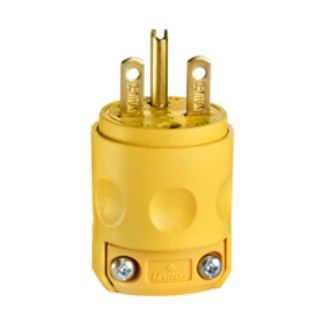

The Leviton 615PV is a 250 volt, 15 amp, two-pole, three-wire yellow PVC grounding polarized straight blade plug. This plug is designed for use in residential and commercial applications where a durable and reliable power connection is necessary.
- Moisture, chemical, and abuse-resistant design.
- Suitable for indoor and outdoor use.
- Compatible with 18-12 AWG wire sizes.
Product Highlights
This straight blade plug features a rugged PVC body built to withstand harsh conditions. The plug ensures maximum conductivity with deep-slotted, backed-out terminal screws. It also includes speed-thread assembly screws for quick and easy installation.
Product Information
Standard Information
-
Brand: Leviton
-
MPN: 615PV
Technical Specifications
-
Catalog Number: 615PV
-
Voltage Rating: 250 Volt
-
Amperage Rating: 15 Amp
-
NEMA Rating: 6-15P
-
Number of Poles: 2
-
Number of Wires: 3
-
Body Material: PVC
-
Size: 1.54 Dia x 2.77 H inches
-
Temperature Rating: -40 to 60 degrees C
-
Environmental Conditions: UL 94 Requirements, V2 Rated Flammability
