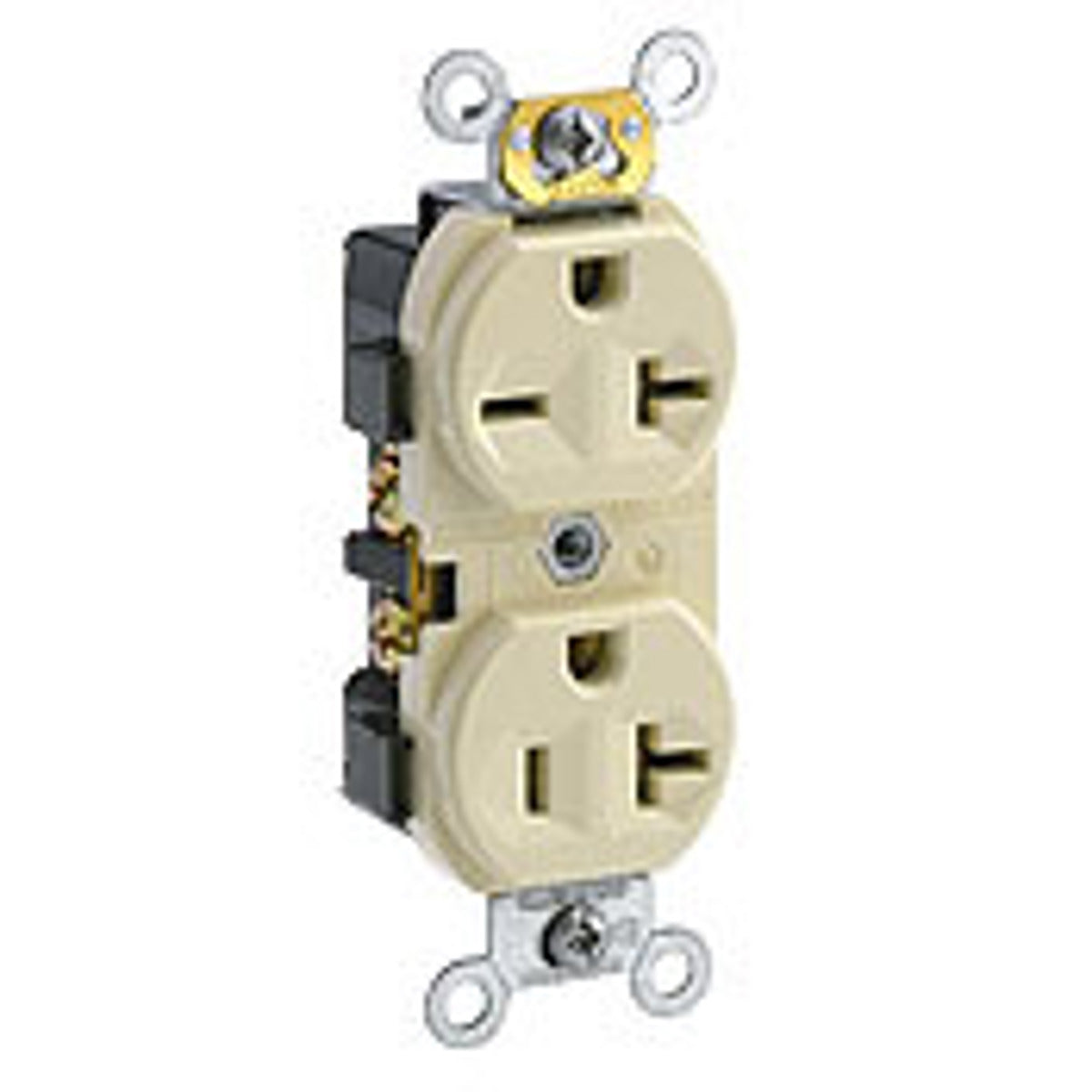

Leviton 5842-I Receptacle Bl Str 125/250VAC 20A 2 3 Nyl

Product Description

The Leviton 5842-I is a straight blade receptacle designed for 1-phase duplex dual voltage applications. This receptacle operates at 125/250 VAC with a 20 A rating. It features two poles and three wires, making it suitable for various commercial settings. The nylon construction provides durability and resistance to impact and chemicals.

• Self-grounding design enhances safety.
• Zinc plated steel strap ensures a secure installation.
• Back and side wiring options for flexible installation.

Product Highlights

This receptacle is ideal for use in hotels, schools, and hospitals. It is compliant with NEMA 5-20R/6-20R ratings, making it a reliable choice for electrical contractors.

Product Information

Standard Information

• Color: Ivory
• Material: Nylon

Technical Specifications

• Amperage Rating: 20 A
• Voltage Rating: 125/250 VAC
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-20R/6-20R
• Temperature Rating: -40 to 60 deg C
• Dimensions: 46 in H x 1.56 in W x 19 in D
• Weight: 0.2 lb
• Flammability Rating: Rated V-2 per UL94
