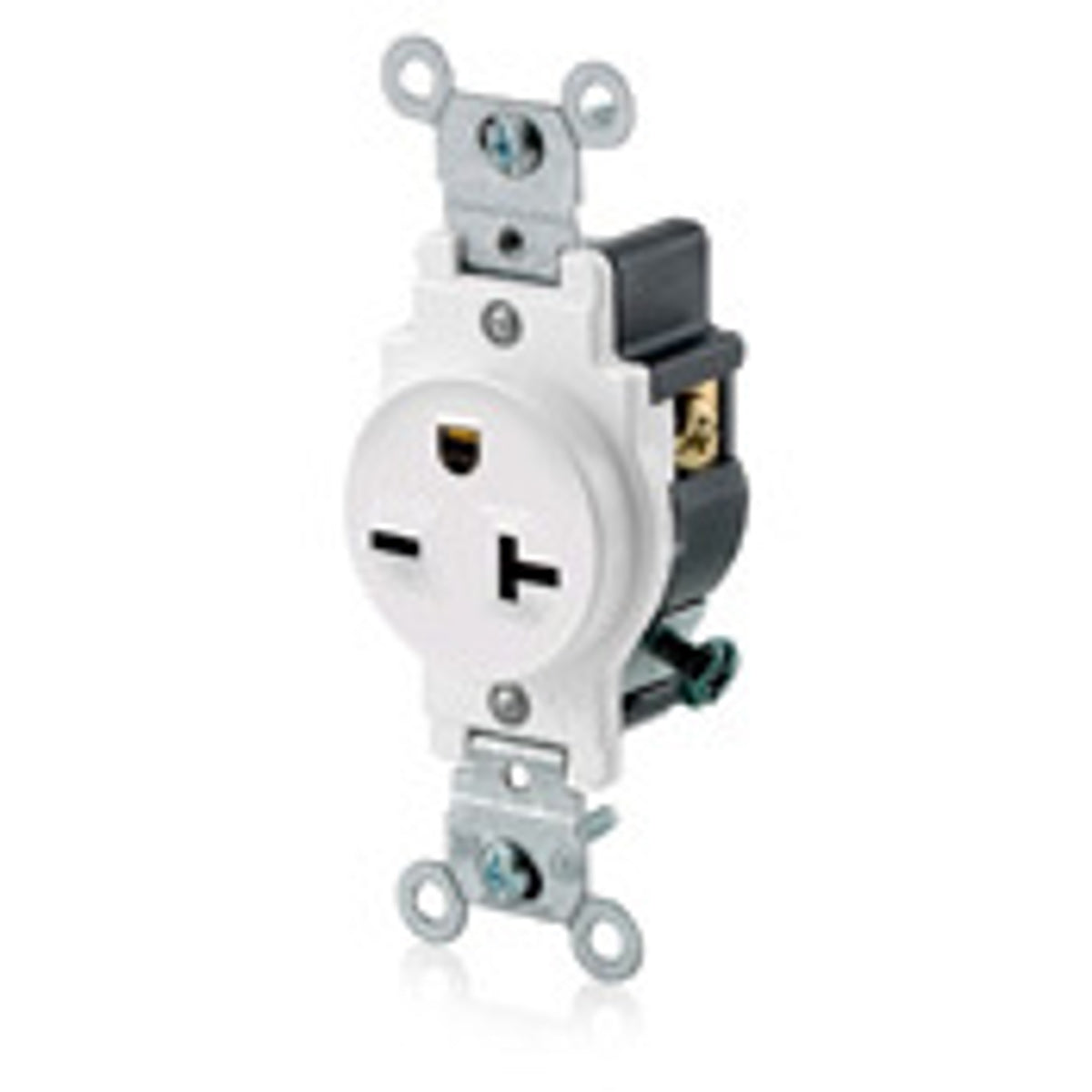

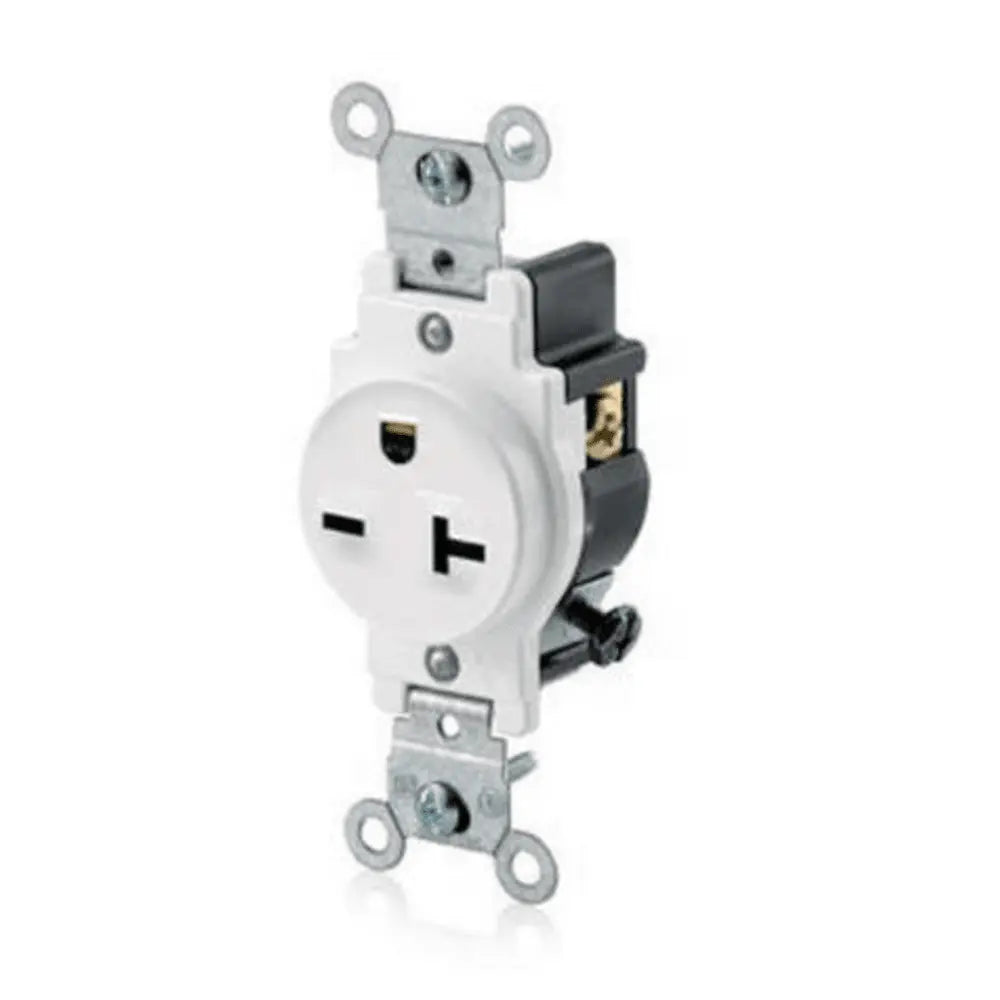

Leviton 5821-W 20-Amp, 250-Volt, Narrow Body Single Receptacle, Straight Blade, Commercial Grade, Grounding

Product Description

The LEVITON 5821-W is a 20-Amp, 250-Volt, narrow body single receptacle designed for commercial use. It features a straight blade configuration and grounding. This receptacle is built to withstand demanding environments. It is commonly used in hotels, schools, hospitals, and commercial office buildings.

• 20-Amp
• 250-Volt
• Narrow Body

Product Highlights

This single receptacle is ideal for environments that require a durable and reliable power connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5821-W
• Country of Origin: Mexico

Technical Specifications

• Color: White
• Voltage: 250 VAC
• Material: Nylon
• Voltage Rating: 250 V
• Amperage: 20 A
• Amperage Rating: 20 A
• Configuration: 6-20R
• Grade: Commercial, Specification
• Ground Type: Grounding
• Number Of Poles: 2
• Number Of Wires: 3
• Type: Single, Narrow
• Wiring: Side
• Body Type: Narrow Body
• Duty: Heavy Duty
• Receptacle Type: Single
• NEMA Configuration: 6-20R
• Wire Size: 14-10-AWG
• Temperature Rating: -40 to 60 deg C
• Strap Material: Zinc-Plated Steel
• Dielectric Strength: 2000-Volts
• Power Rating: 2 HP
• Contact Material: 0.031 Inch Double-Wipe Brass
• Applicable Standard: ANSI C73, NEMA WD-6
• Current Rating: 20 Ampere
• Terminal Type: Side Wire
• Enclosure: NEMA WD-2/WD-6
• Horsepower: 2 hp
• NEMA Rating: NEMA 6-20R
• Mounting: Wallbox
• Connection: Side Wired
• Phase: 1 Phase
• Mounting Type: Wallbox, Flush
• Face Material: Nylon
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
• Flammability: Rated V-2 per UL 94
• Current Limiting: Full Rated Current
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Screw Terminal Torque: 14-18 in-lbs
• Environmental Conditions: V2 Flammability Rated Per UL94
• UPC: 078477249871
• GTIN: 00078477249871
• Item Type: Straight Blade;Single Outlet
• Number of Outlets: 1
• Application: Commercial
• Connection Type: Side Wire
• Number of Phases: 1 Phase
• Termination Type: Side Wire
• Flamability Class: Rated V-2 Per UL 94
• ECCN: EAR99
• Color Family: White
• Ground: Grounded
• No. of Poles: 2
• No. of Wires: 3
• Housing Color: White
• Housing Material: Nylon
• Mount Type: Flush
• NEMA Enclosure Rating: Not Rated
• Polarized: Yes
• Resistance Properties: Not Applicable
• Connection Orientation: Straight
• Number of Poles & Wires: 2 Pole / 3 Wire
• Key Resistance Properties: Standard Resistance
• UL 94 Flammability Rating: V-2
• Includes Mounting Hardware: Yes
• Amps - Plugs and Receptacles: 20 A
• Item - Plugs and Receptacles: Single Receptacle Outlet
• Color - Plugs and Receptacles: White
• Maximum Operating Temperature: 60 Degrees C
• Minimum Operating Temperature: -40 Degrees C
• NEMA Receptacle Configuration: 6-20R
• Primary Resistance Properties: 20 A
• Voltage - Plugs and Receptacles: 250VAC
• Additional Electrical Protection: Standard Protection
• Hazardous Location Specification: Not Applicable
• Additional Electrical Protections: Standard Protection
• Mount Hole Center-to-Center Height: 3.28 in
• Outlet Type - Plugs and Receptacles: Single
• Wiring Method - Plugs and Receptacles: Side
• NEMA Receptacle Configuration - Plugs and Receptacles: 6-20R
• AC Horsepower Ratings At Rated Voltage: 2 HP
• NOM: 057
• UL Fed Spec WC-596: File E13399
• UL498: File E13399
• Power Plug Type: Type A - 2 pin (North American)
• Wattage: 5821 watts
• Smart Home Compatibility: Not Smart Home Compatible
• Connectivity Technology: AC Power Cord
• Total Power Outlets: 1
• Sub Brand: Commercial Receptacles
• Wire Count: 3
• Conductor Size: 14-10 AWG
• Dielectric: 2000 V
• Wire Connection Type: Screw Terminals
• Wire Connection Types: Screw Terminals
• At Rated Voltage: 2 HP
• CSA C22.2 No. 42: File 152105
• Face Plate Width: 1.38 in
• Horsepower Rating: 2 hp
• Maximum Wire Size: 10 AWG
• Minimum Wire Size: 14 AWG
• NEMA Configuration - Plugs and Receptacles: 6-20R
• Application Environment: Commercial
• Country of Origin (subject to change): Mexico
• Manufacturer Part Number: 5821-W
• Brand Name: Leviton
• Manufacturer Name: Leviton
• UNSPSC: 39121406
• Item Name: Straight Blade Single Receptacle
• Style: Single
• Standards: UL 498 E13399 Listed, UL Federal Specification: WC-596 E13399, CSA C22.2 No.42 152105, ANSI C-73, NOM 057, NEMA WD-1, WD-6
• Terminal Accom.: 14-10 AWG
• Terminal Screws: Brass 8-32
• Line Contacts: Brass Double Wipe .031 Thick
• Grounding Screw: Brass 8-32
• Product ID: Ratings are permanently marked on device
• RoHS Compliant: True
• Pole: 2
• Wire: 3
• ANSI: C-73
• NEMA: WD-1 & WD-6
• Market: Commercial
• Overall Depth: 1.06 in
• Face Plate Height: 2.36 in
• IGCC: 4536
• Vendor: 78477
• Family group: WIRING DEVICES
• WES Product code: 2734314980
• Made in the USA: Yes
• Meta Tag: Electric outlet, electric socket, electric plug, power outlet, lamp socket
• Market Class: D77
• Poles & Wires: 2 Pole, 3 Wire
• Manufacturers Part Number: 5821-W
• Energy Star Flag: No
• RoHS Flag: Contact manufacturer
• Terminal Connection: Side Wired
• Maximum Load Capacity: 2 hp
• Brand Part Number: 5821-W
